OPTIONS & ALLIED TOOLING − DECO 7/10 − DECO 7a/10a − DECO 7e/10e
300236 en − 02/07 Chap. 10.4.2 /7
10.4 KIENZLE PRODUCTIVITY-MONITOR CONTROL (AN
EXAMPLE)

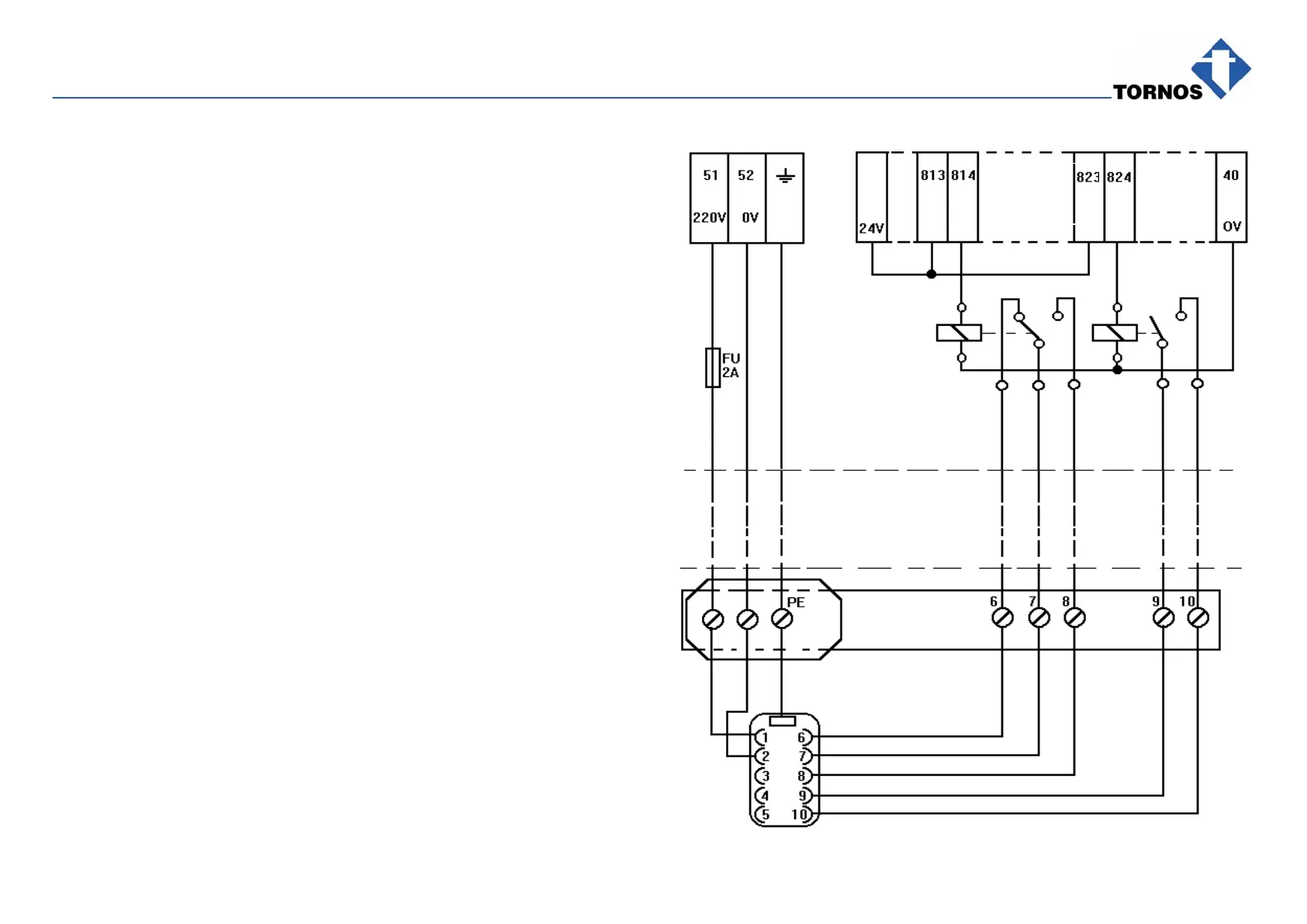

10.4.1Wiring Diagram for Optional Socket 1
10.4.2Enable Outputs Inside Program Loop
M813: enables Operating Time Output.
(to be put at program loop start),
enables Output 2 on Optional Socket 1.
M811 D811=1000:
enables Quantity Indicator Output.
(Command response time: 1 sec),
enables Output 1 on Optional Socket 1.
M812: disables Quantity Indicator Output.
disables Output 1 on Optional Socket 1.
M20: End-of-part signal.
M814: disables Operating Time.
(to be put at program loop end),
disables Output 2 on Optional Socket 1.
Terminal box in
electric cabinet
Quantity Indicator
Operating Time
Terminal box in
control panel
Terminal
Box
XT 800
2
