8.3 MIST & SMOKE CONTROL
8.3.1 (305173) Mist & Smoke Control Unit FILTERMIST 5430
APPLICATION
This item is used in:
Description
199222 DECO 7a
199224 DECO 10a
FILTERMIST UNIT DESCRIPTION
− Application : extraction & filtering oil & emulsion mist
− Dry smoke filter : for cutting oils; not required for emulsion
− Design : simple centrifuge requiring minimum
maintenance
COMPONENTS
This system consists of the following items :
Description Item
305173 Oil spray extractor 0010
521789 Smoke evacuator control & equipment 0500

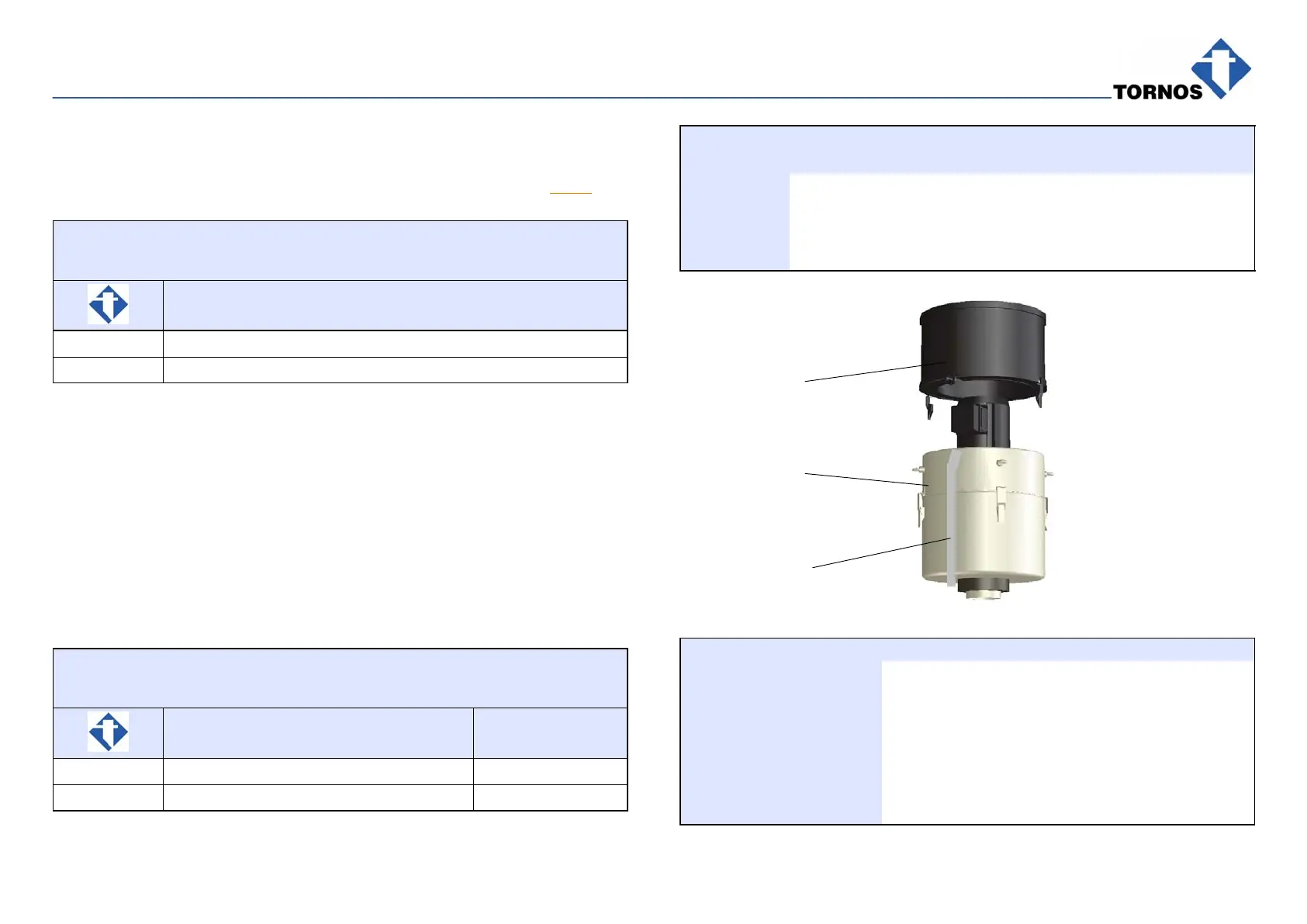

LOCATION OF ITEMS
Item no. Description
10 Mist centrifuge
1010 Dry smoke filtre F7 (99.95%)
241669 Suction hood (see drawing 241669f1)
1020 Oil return conduit
1010
10
1020
MIST & SMOKE CONTROL UNIT DATA
− Capacity : regular :
with filter :
14 m
3
/min
11 m
3
/min
− Motor power : 0.55 kW
− Noise level : at 2 m : 69 dBA
− Weight : centrifuge : 25 kg
− Fineness of filtration : at 100%
with smoke filter at 99.95%
0.80−5.0 μm
0.01−1.3
μm
