OPTIONS & ALLIED TOOLING − DECO 7/10 − DECO 7a/10a − DECO 7e/10e

300236 en − 02/07 Chap. 18.2 /8

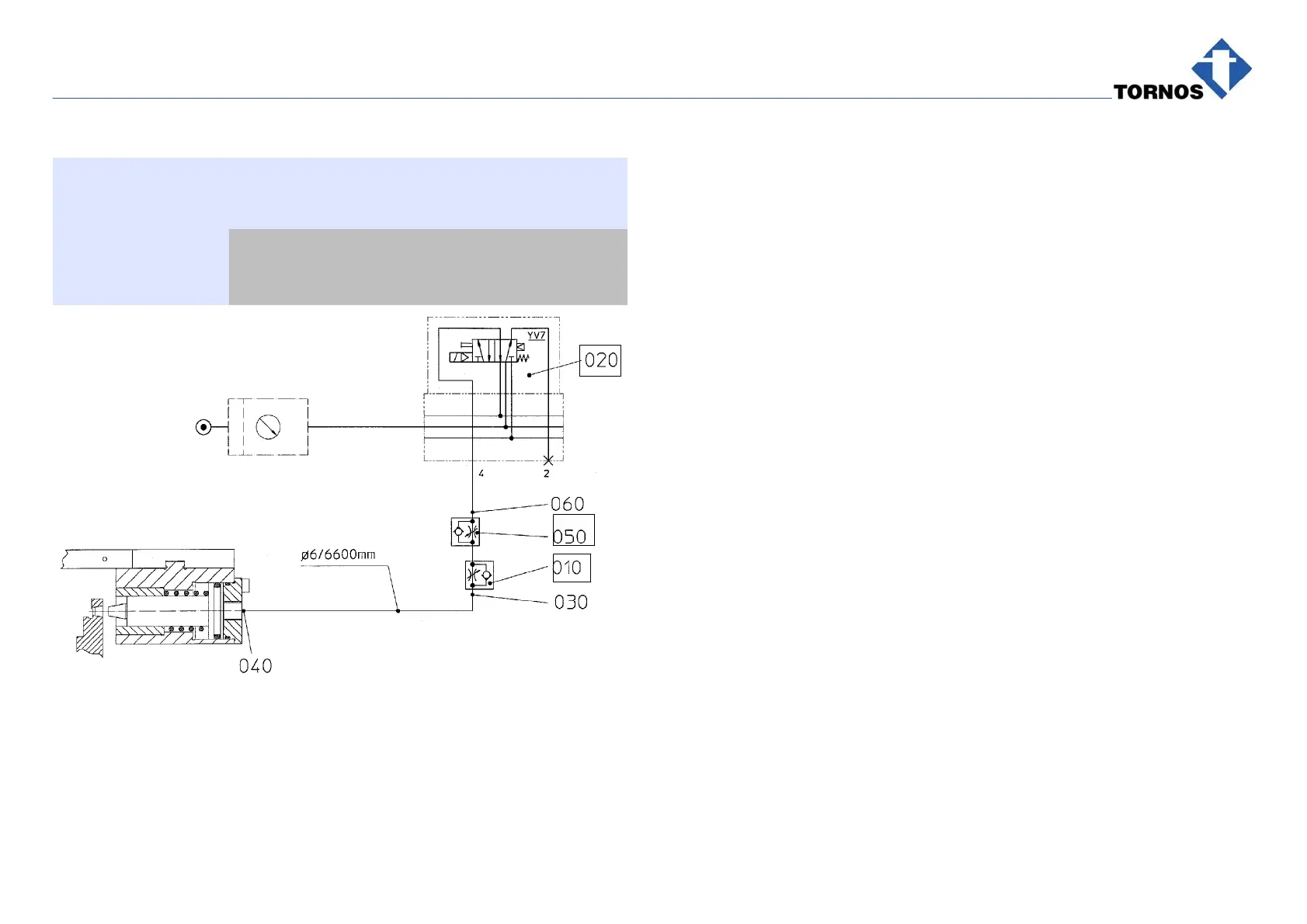

18.2 (306125) LOCKING PNEUMATICS

COMPONENTS

Item Designation

010 Air flow control valve for unlocking

020 Electrovalve

050 Air flow control valve for locking

306125

LOCKING PNEUMATICS OPERATION & LOCKING / UNLOCKING RATE

ADJUSTMENT

− Electrovalve 020: controls advance of locking pin

− Air Flow Control Valve 010: reduces advance rate of locking pin

− Air Flow Control Valve 050: reduces retract rate of locking pin
