tornos DECO 7/10 - 21 Chip Recuperator Outside Machine 5450

OPTIONS & ALLIED TOOLING − DECO 7/10 − DECO 7a/10a − DECO 7e/10e
300236 en − 02/07 Chap. 21. /1
21. CHIP RECUPERATOR OUTSIDE MACHINE 5450

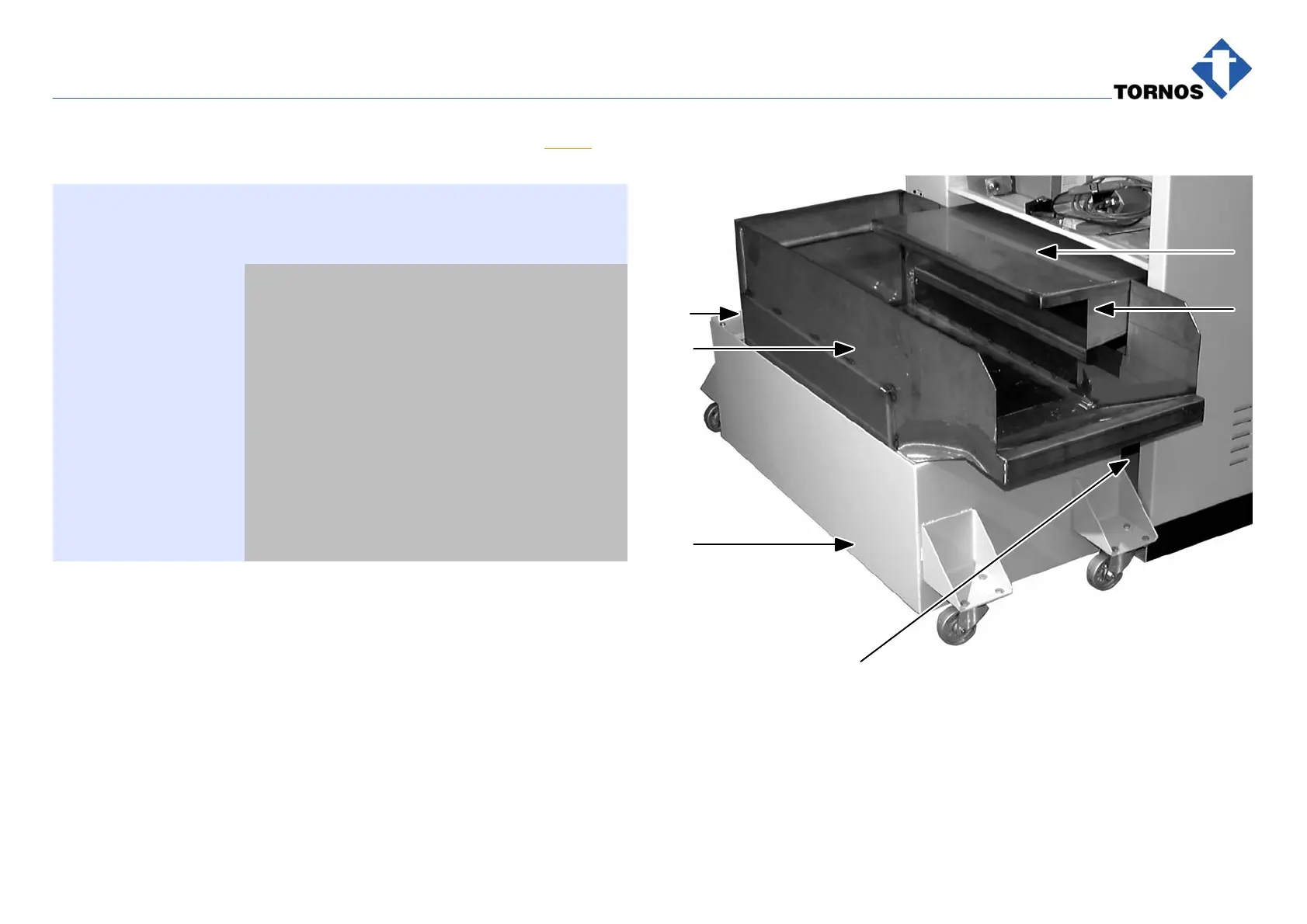

COMPONENTS
Option 5450
Item Designation
P Pump
1 Independent oiltank on wheels
2 Chip tank
3 Chute
4 Oil splash cover
5 Overflow for the oil level equilibrium
6 Machine oiltank modified according to Fig. 2003
010 Tube with coolant holes on chute
020 Oil chute machine modified according to Fig.
2003
170 Flexible tube
220 Quick coupling
1
2
3
4
2
P
5 + 6
Fig. 2001
