REDUCTION TUBES
A set of reduction tubes available for various part diameters to be accom-
modated in the counter-spindle:
Part ∅ [mm] Reduction Tube ∅
[mm]
TB Ident. No.
7 to 10 11 Standard
4.5 to 7 8 561704
2 to 4.5 5 561649
1 − 3.5 4 561703

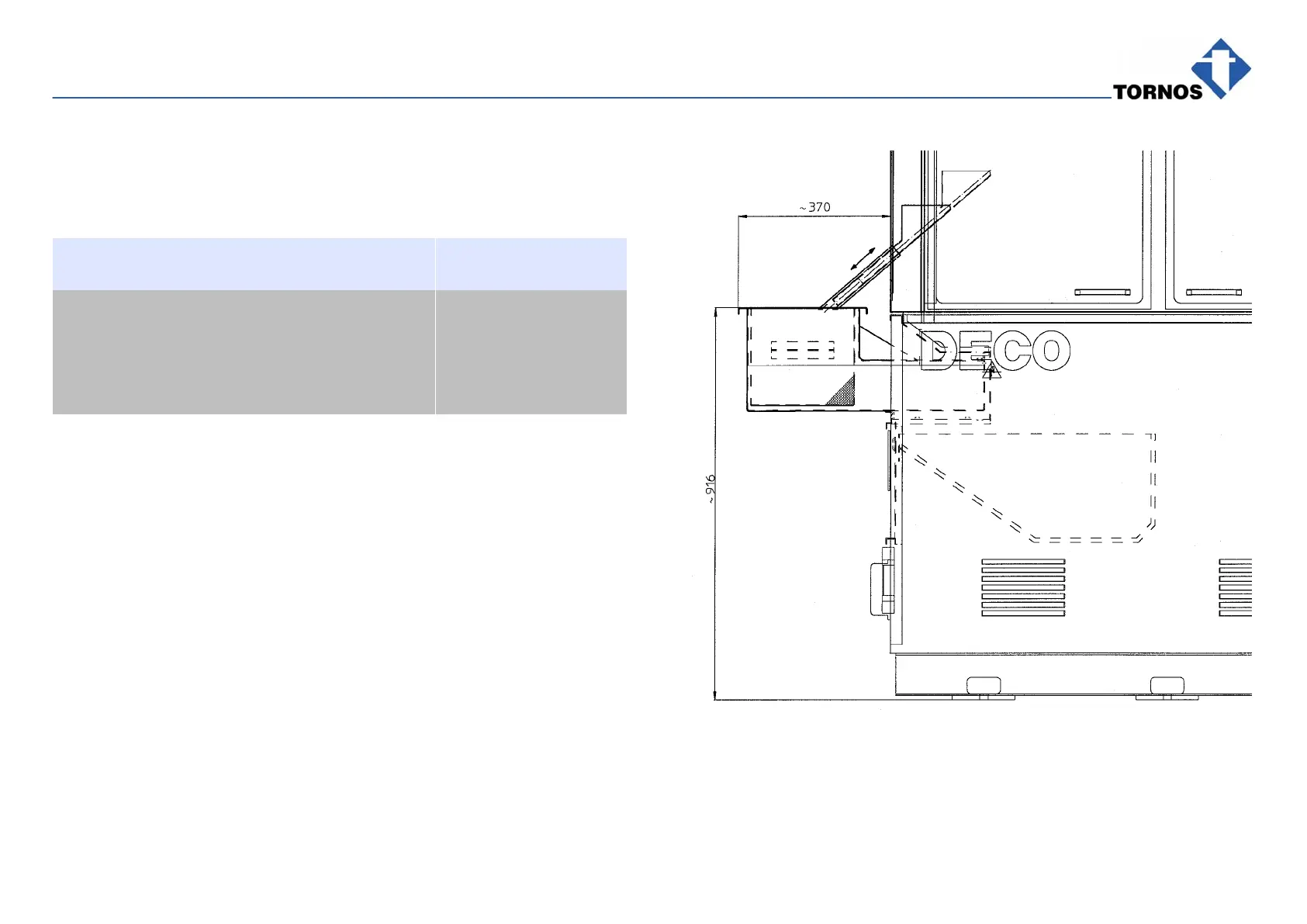

SPACE REQUIRED For Long-Part Evacuation
