OPTIONS & ALLIED TOOLING − DECO 7/10 − DECO 7a/10a − DECO 7e/10e
300236 en − 02/07 Chap. 5.3 /5

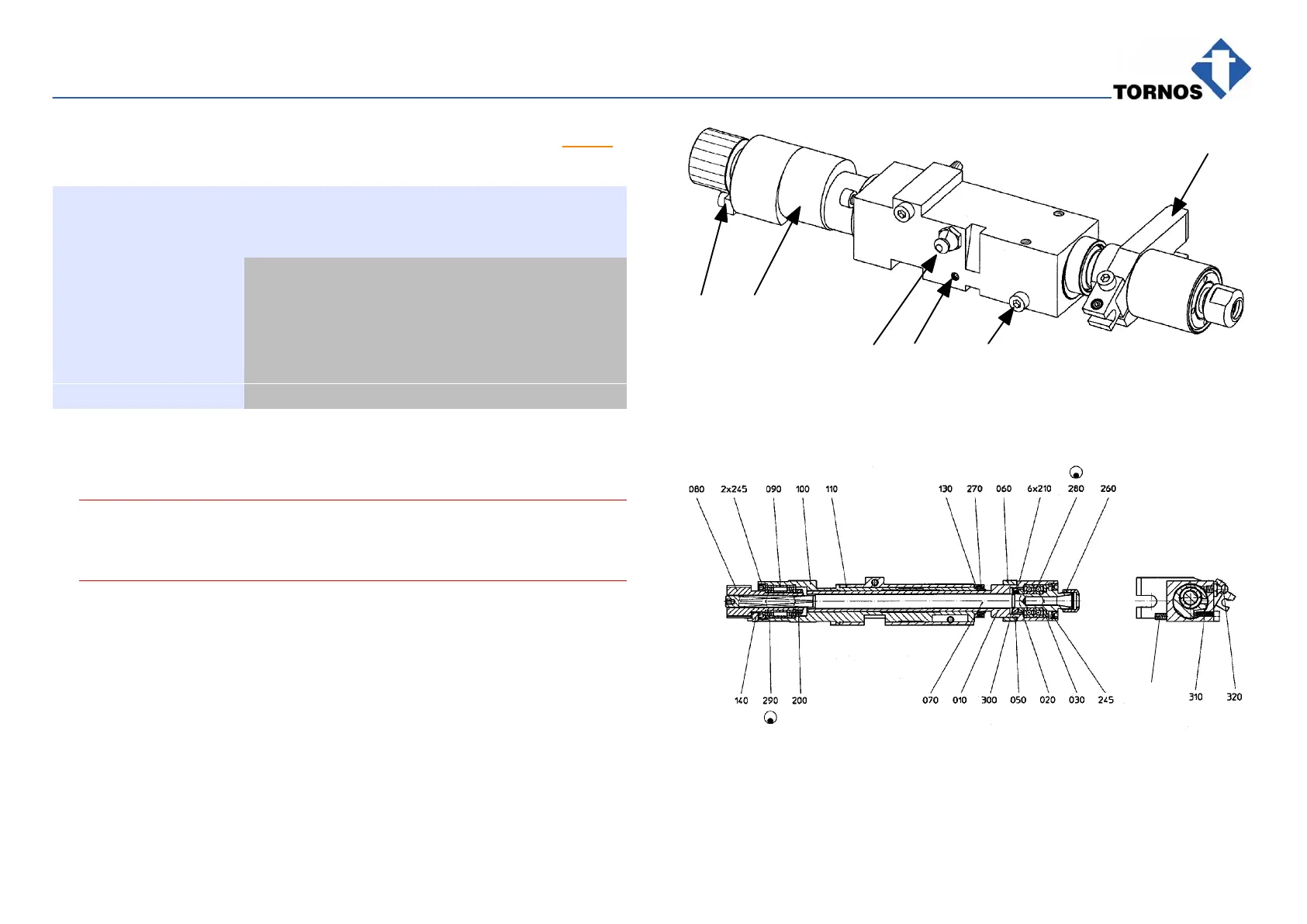

5.3 (305006) LIVE SPINDLE FOR ESX 12 COLLETS 3600
COMPONENTS
Item Designation
060 Feed fork
100 Eccentric sleeve
140 Lock
310 Lateral setting screw
320 Nipple
1010 Leak-oil drain hole
. Caution !
Direct Leak-Oil Drain Hole 1010 downwards.
The spindle bearings can jam if the joint does not work correctly.
30500
6
320
060
100140
310 1010
240
