17. (305124) LOCKING SYSTEM FOR ORIENTED MAIN SPINDLE 0940
SPINDLE LOCKING SYSTEM APPLICATION
The system is used on:
Designation
305063 for Main Spindle
. Caution !
For correct operation of the system, follow strictly the instructions given
in this chapter.
SPINDLE LOCKING SYSTEM DATA
Function: improving positioning precision and rigidity after oriented
main spindle stop
Mounting: optionally on main headstock
Feature Description Data
Standard notched
disk:
24 x 15°-divisions
Positioning accuracy: 0.1°
Locking torque: 17 Nm

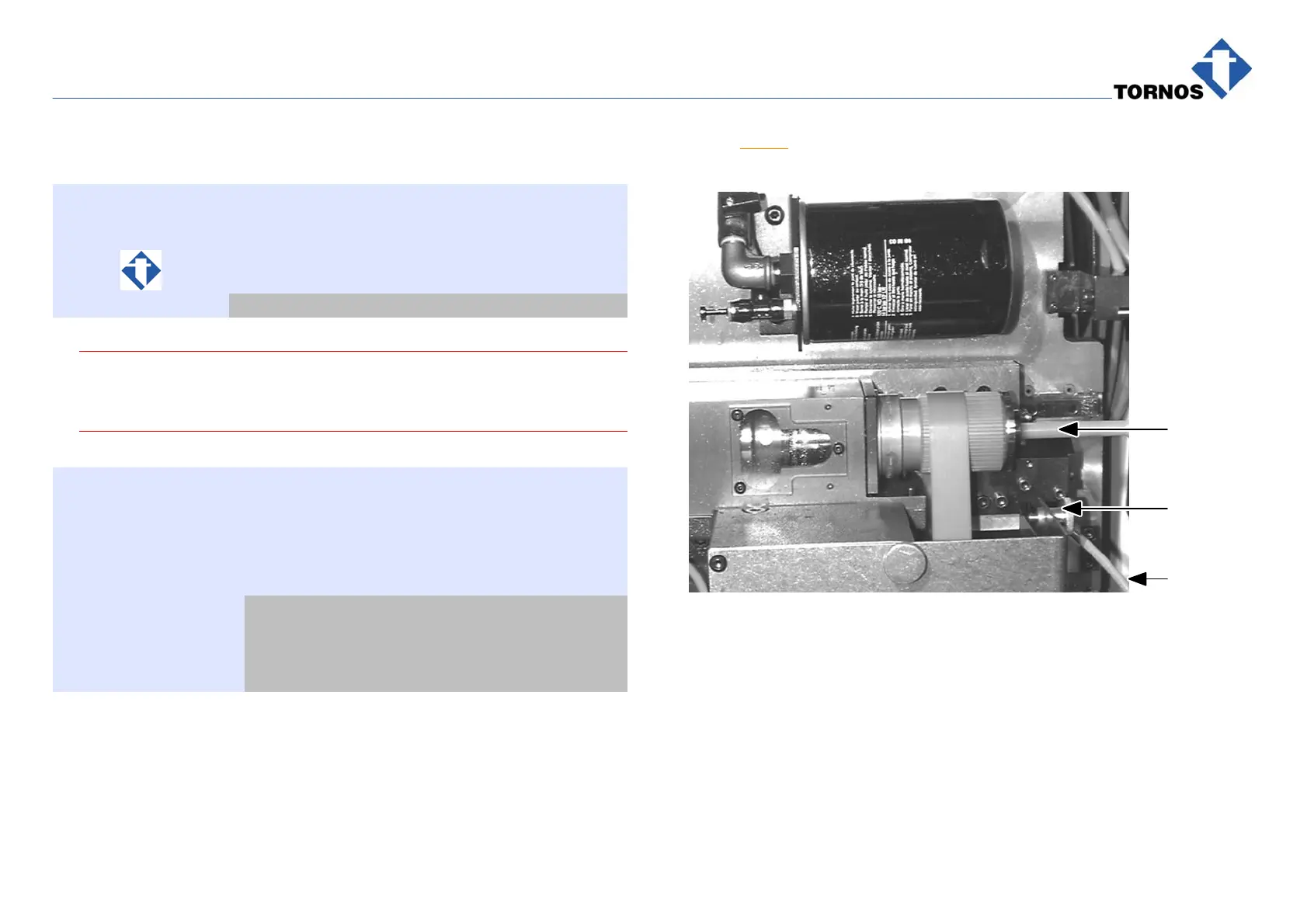

305124
216547
216536
305124a
