OPTIONS & ALLIED TOOLING − DECO 7/10 − DECO 7a/10a − DECO 7e/10e
300236 en − 02/07 Chap. 20.3 /9

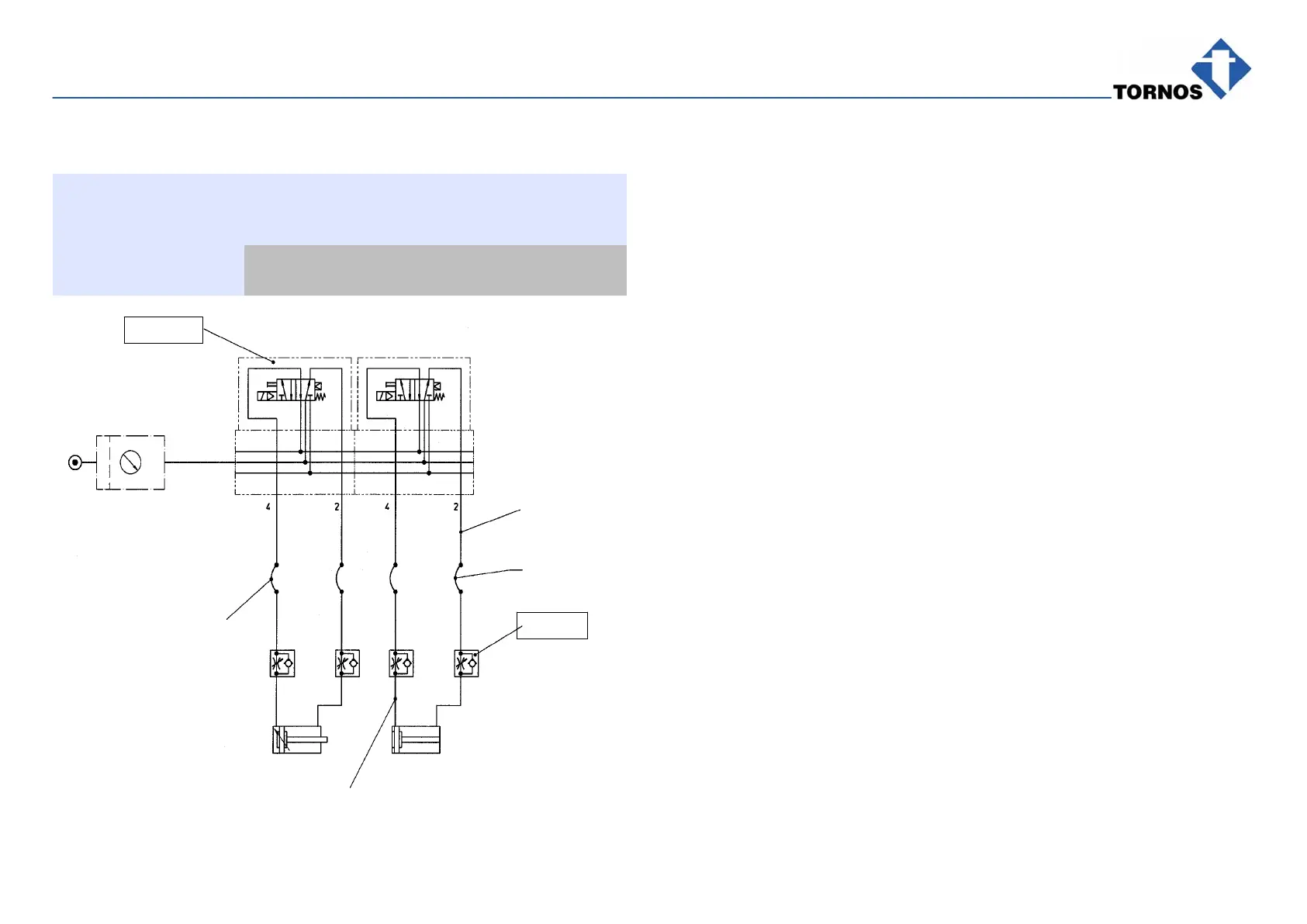

20.3 (305130) LONG PART EVACUATION PNEUMATICS
COMPONENTS
Item Designation
010 Electro−distributor
050 Air supply regulators
Catcher chute thrustor Ejector thrustor
306130
030 (4x)
090 0.5m long
050 (4x)
070
090 2 m long
010 (2x)
LONG-PART EVACUATION PNEUMATICS OPERATION
The electrovalves control the following thrustors:
Ejector thrustor: see Fig. in Para. 19.1
Catcher chute thrustor: see Fig. in Para. 19.2
Thrustor stroke rate control: see Pneumatics Diagram above
Long-Part Evacuation Kinematics: see Fig. opposite
The air supply regulators: control motion rates of various items over air escape
valves.
