OPTIONS & ALLIED TOOLING − DECO 7/10 − DECO 7a/10a − DECO 7e/10e
300236 en − 02/07 Chap. 16.2 /4
c
16.2 TECHNICAL DATA

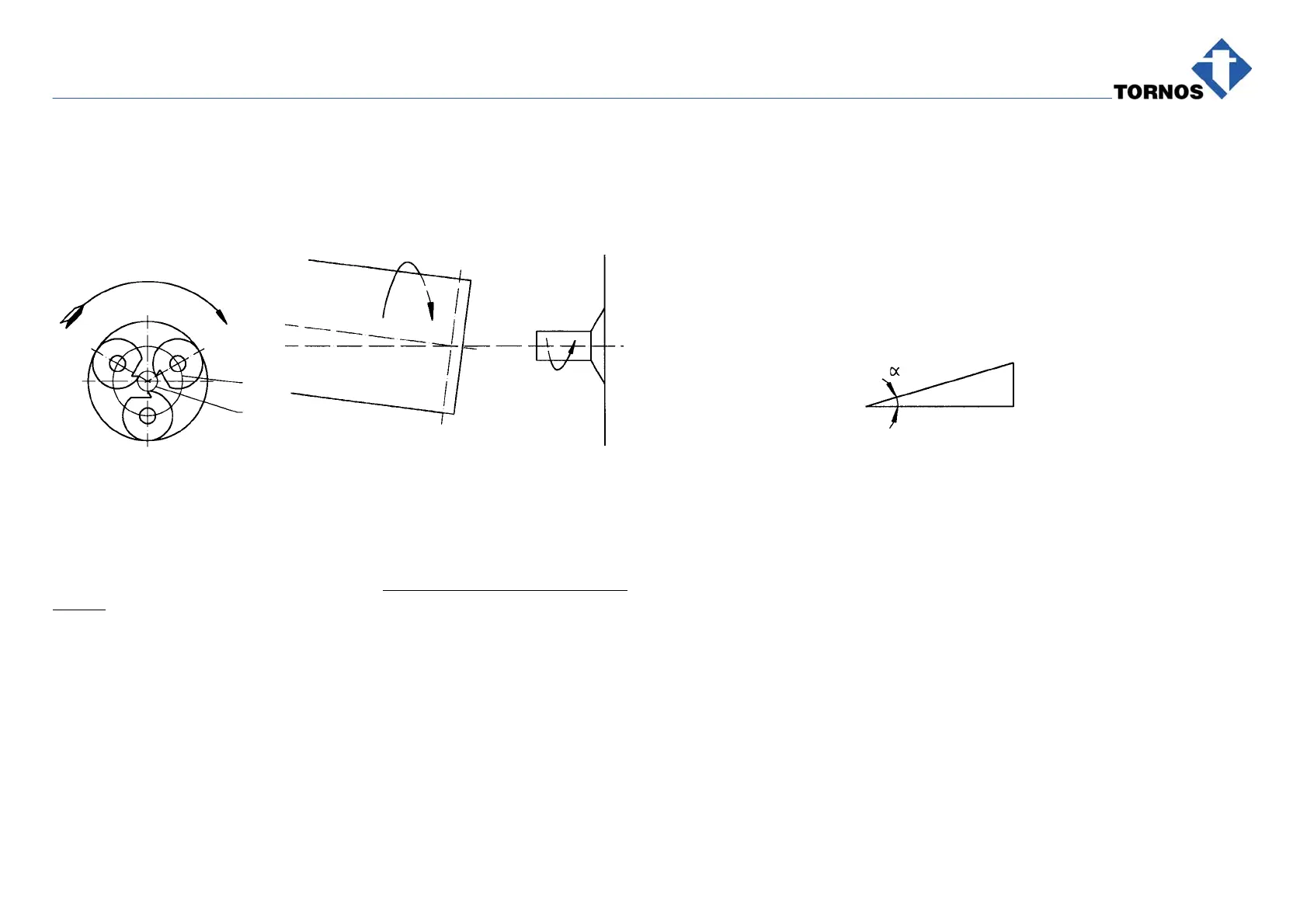

a) Working Cutter Diameter (Geometrics)
Ø 21 mm
Ø 6 mm (theoretical)
150
Right thread
M604
M604
C1+
Exact inside Ø = Pin Ø :
21 mm
Measured cutter Ø : −
15 mm
Working Ø of cutters :
6 mm
b) Whirling Attachment Inclination Angle
as measured with a dial gauge at 40 mm on the spindle
Height Difference h = Tg alpha x 40 mm
The inclination angle to be adjusted accordingly:
40 mm
h
− 2nd Fixing Screw 560, see Fig. 305115b, to be fitted in the appropriate
hole according to the inclination angle.
