tornos DECO 7/10 - Whirling Programming Sample; Part Drawing; Programming

OPTIONS & ALLIED TOOLING − DECO 7/10 − DECO 7a/10a − DECO 7e/10e
300236 en − 02/07 Chap. 16.4.2 /12
16.4 WHIRLING PROGRAMMING SAMPLE

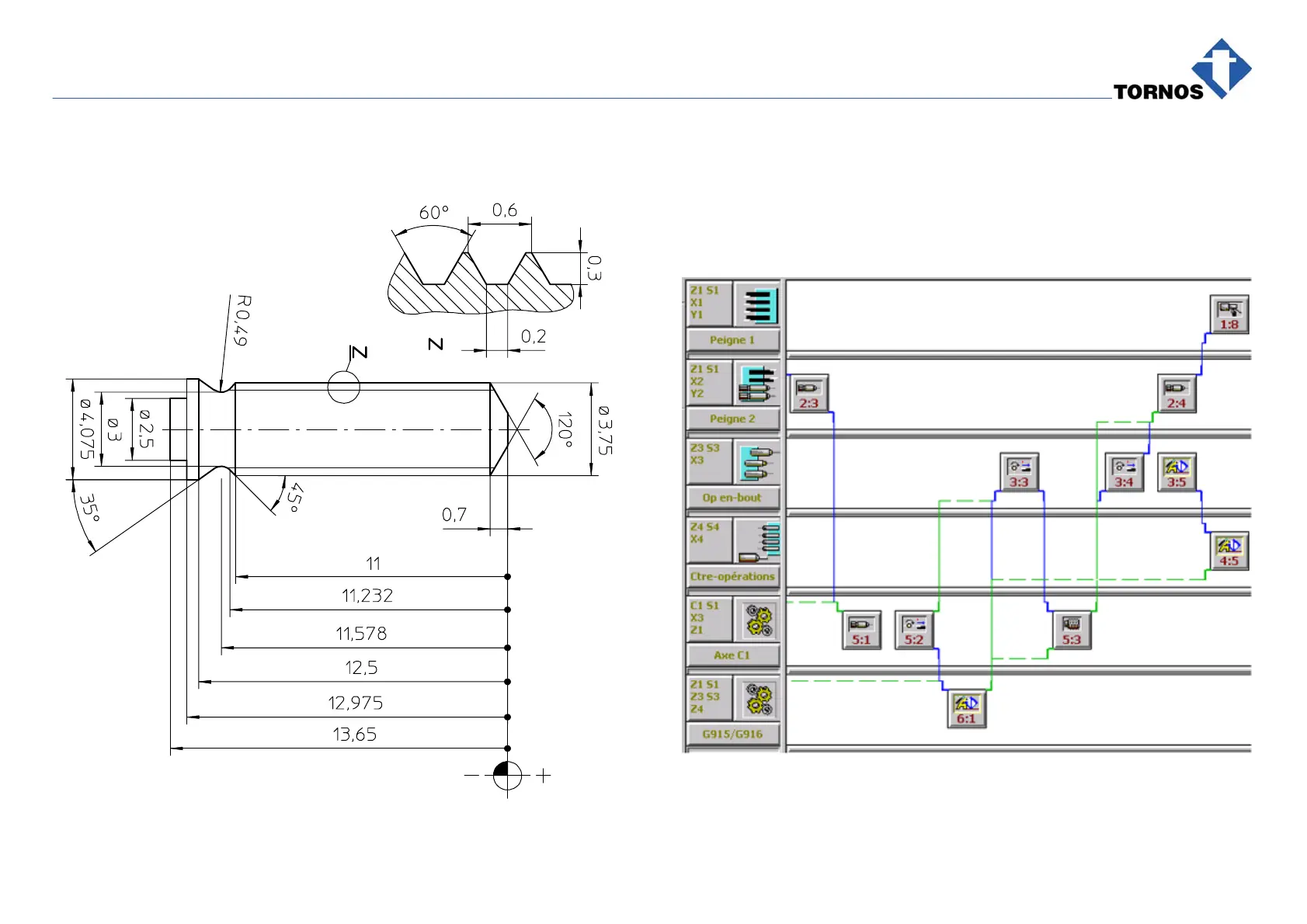

16.4.1 Part Drawing
1510
16.4.2 Programming
Create a new Operation Line with C1, X3 and Z1 axes and use Support T93
associated with X3 and Z1 axes. Support T93 is given the machine database
starting with Version 5.05 of TB−DECO.
Fig 1511 below shows the 5th Operation Line (C1-axis) designed for whirling
and other operations required for positioning the whirling attachment.
1511
