OPTIONS & ALLIED TOOLING − DECO 7/10 − DECO 7a/10a − DECO 7e/10e
300236 en − 02/07 Chap. 16.4.2 /13
1. The following three operations are required to carry out part positioning
in Z1 and attachment positioning in Z3. The attachment is mounted inT33:
Op. 5:2 Z1 positioning (1 mm) T93
Code ISO: G1 X3=3.15 Z1=1 G100 T93
Op. 6:1 G915
Code ISO: G915
Op. 3:3 Z3 positioning (1 mm) T33 + Whirling Att. ON
Code ISO: G1 Z3=1 X3=3.15 G100 M604 (5000T/MN)
2. Whirling goes on as follows :
Op. 5:3 Whirling length 11.6 ; Lead = 0.6
Code ISO: T93
G1 Z1=1 G100
G1 X3=3.15 G100
M198
G4 X1
G1 C1=7560 Z1=−11.6 F7200 G94
G1 C1=7740 X3=3.55 Z1=−11.9
G1 X3=5 G100
G1 Z1=1
M199

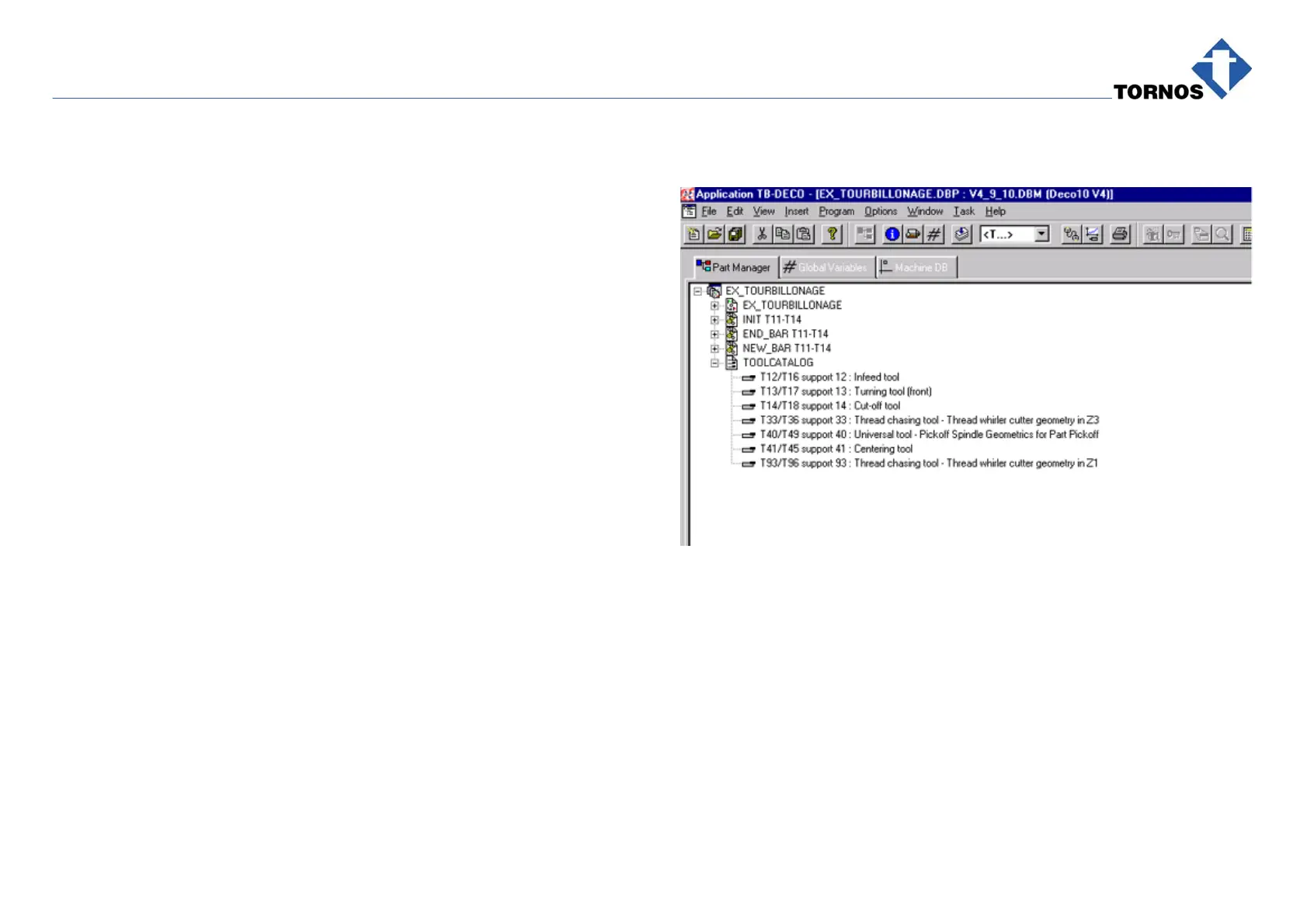

Toolcatalog Data
