OPTIONS & ALLIED TOOLING − DECO 7/10 − DECO 7a/10a − DECO 7e/10e
300236 en − 02/07 Chap. 7. /1

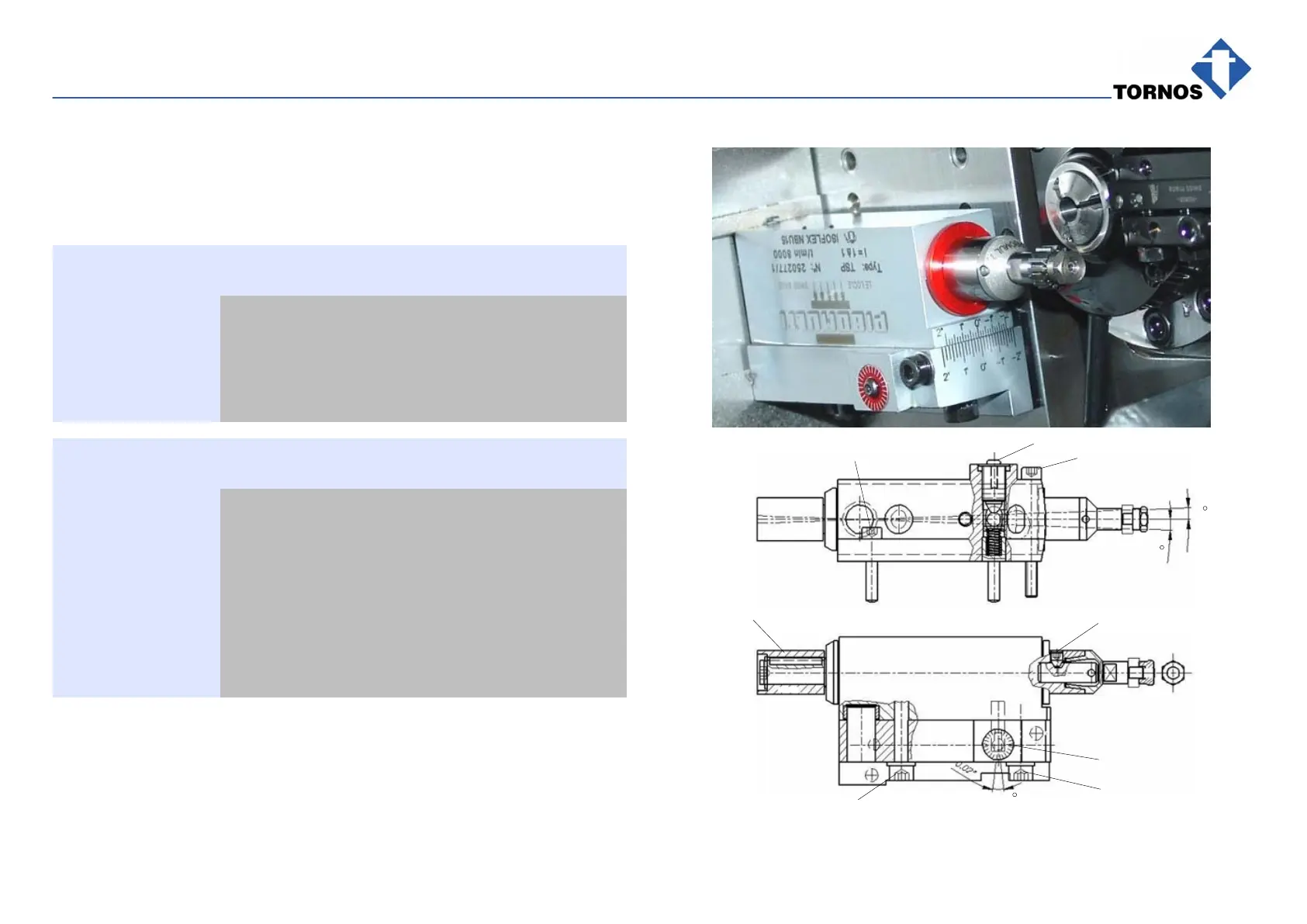

7. (242447) Attachment for cutting pinions by
generation
Note: Requires control version 16iTB.
LOCATION OF PARTS
Reference Name
1 Adjusting screw
2 Lock screw
3 Lock screw
4 Pulley
5 Fixing screw
GENERAL SPECIFICATIONS
Items Description Specifications
Installation
The equipment occupies
2 pos.
By using the false pos.
T25, it only occupies one
pos.
in T22, 23 and 24
Fixed in T25
Programmed in T24
Module: from 0.04 to 0.2
Angular adjustment: +/− 2°
Maximum torque: 7 Nm
Maximum speed: 8,000 rpm
Description
The cutting equipment is fitted with a spindle mounted on greased for life ball
bearings.
The spindle is driven by a toothed pulley screwed to the back of the spindle.
1
2
3
4
5
5
2
0,02
2
2
1
