tornos DECO 7/10 - Sample Programming

OPTIONS & ALLIED TOOLING − DECO 7/10 − DECO 7a/10a − DECO 7e/10e
300236 en − 02/07 Chap. 7.2.1 /4

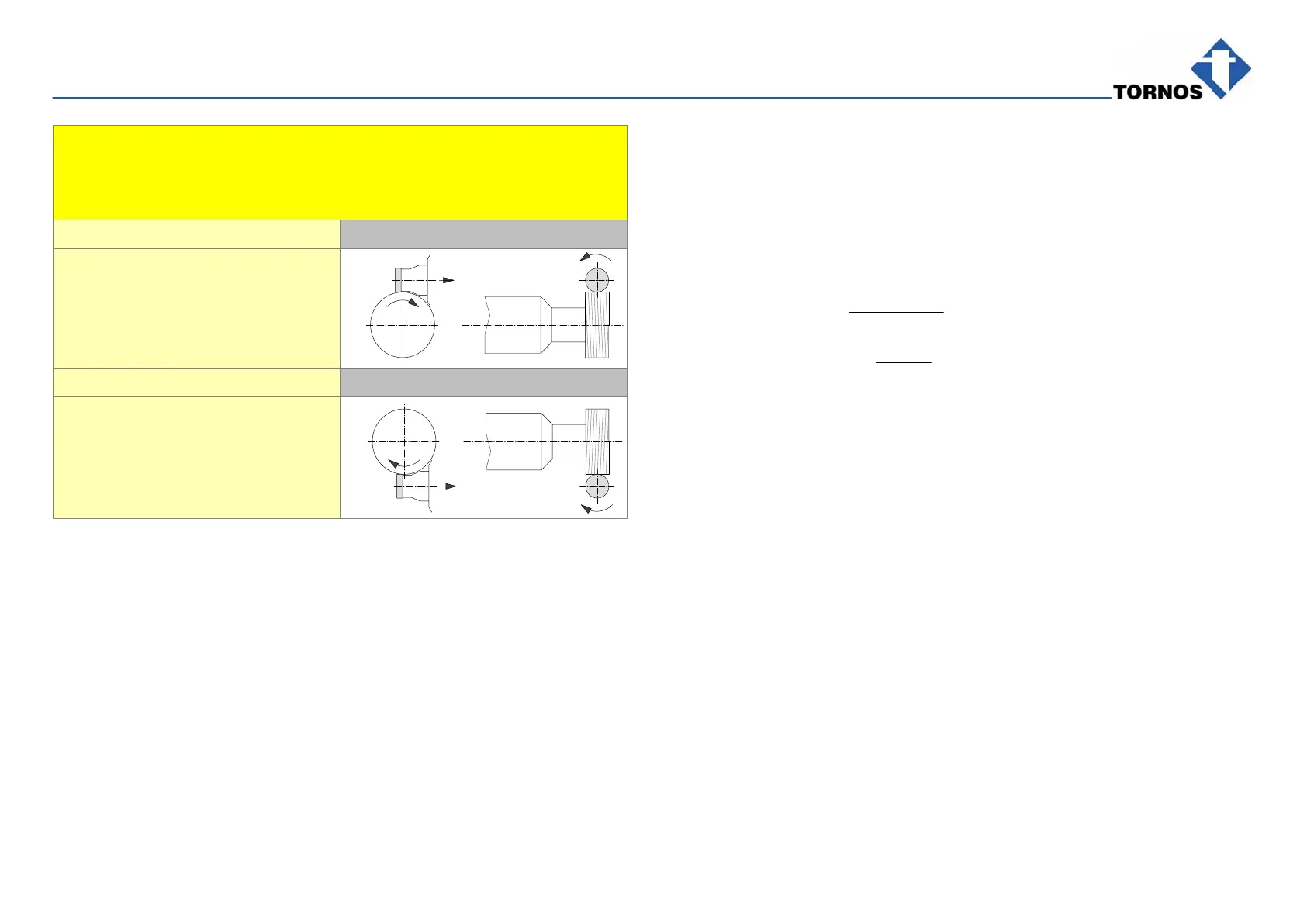

CASE OF CUTTING FIGURE
Cutter with right helix allowed
Cutting with headstock retracted (downstream cutting)
1. Cutter under the part
Headstock rotation to the right
(M103)
Equipment rotation to the left
(M204)
M204
M103
1. Cutter on the part
Headstock rotation to the left
(M104)
Equipment rotation to the left
(M204)
M204
M104
7.2.1 Sample Programming
Cutter under the part, downstream cutting
2652
15
∅ cutter: 12mm
cut−off speed: 100m/min
number of teeth: 15
number of tool turns: = 2,652rpm
number of spindle turns: = 177rpm
1000 x 100
π x 12
ROTATION S1=177
M103 S177
ROTATION S2=2652
M204 S2652
CUTTING
G1 Z1 = G100 T24
G251 R15 Q0
G4 X1
.....
G250
M205
