OPTIONS & ALLIED TOOLING − DECO 7/10 − DECO 7a/10a − DECO 7e/10e
300236 en − 02/07 Chap. 16.3.1 /5
16.3 SETTING WHIRLING ATTACHMENT
16.3.1 Parallelism and Centering
To start with : Replace spindle by centering arbor
(delivered with attachment), Fig. 305115e
Set attachment at 0
Tighten Screws 560, Fig. 305115b.
What to do ? Notes
PARALLELISM

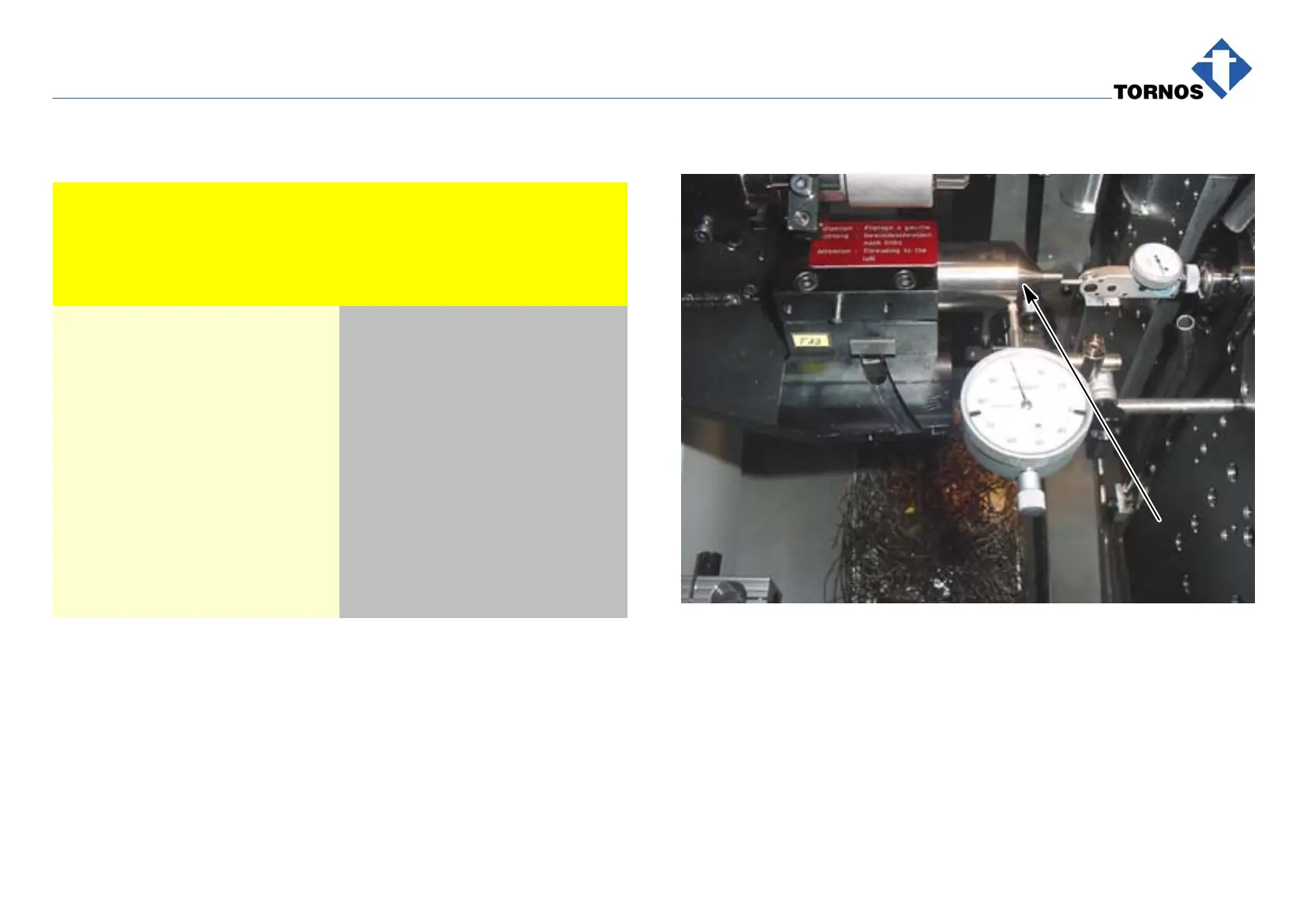

Check and adjust parallelism with
Check and adjust parallelism with
dial gauge located on vertical sup-
port with magnetic shoe.
CENTERING
Center by shifting X3-axis. Use
dial gauge located on guidebush.
Lateral alignment :
Re-adjust Spacer 070, Fig.
305115e, as applicable for each
machine.
. Caution !
Each external thread whirling
attachment, delivered (fitted or
otherwise) with the 7&10 mm
DECO machine, has been cen-
tered on the machine. However,
when delivered separately at a
later date, it must be re-cen-
tered by the user.
1508
Centering arbor
No. 472048
