OPTIONS & ALLIED TOOLING − DECO 7/10 − DECO 7a/10a − DECO 7e/10e
300236 en − 02/07 Chap. 16.1 /3

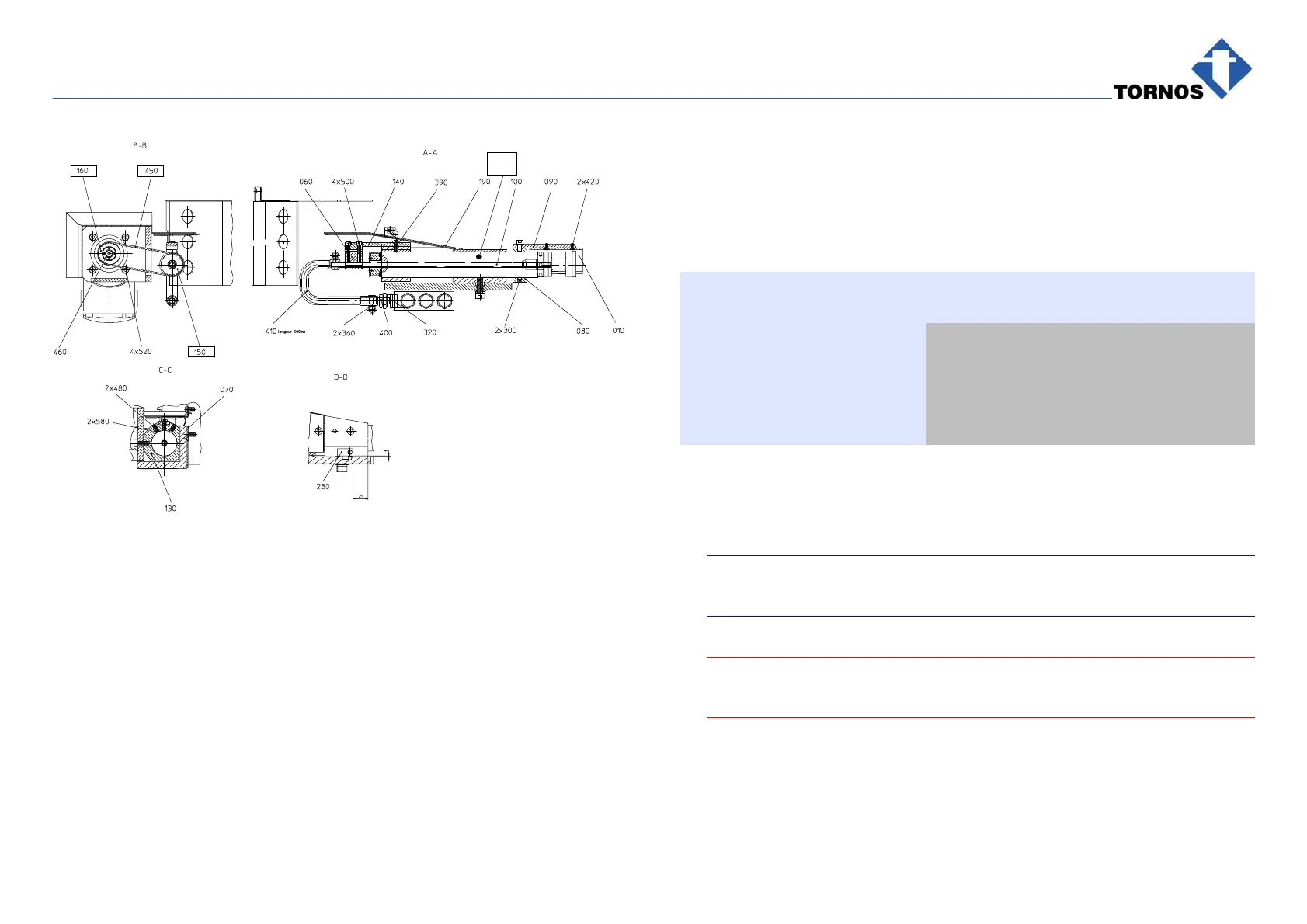

305115c
1
16.1 GENERAL TECHNICAL DATA
− Whirling attachmet (see Fig. 305115a) is mounted in T32−T33.
− The whirling head precludes the use of tools in T14 and T24.
TECHNICAL DATA
Feature Description Data
Position for thread whirling : preferential T14−T24
Motor speed : max. 8000 rpm
Motor − spindle transmission
ratio :
1 : 1
Spindle speed : max. 8000 rpm
− Positon cutter center 132 mm from the groove center line on Support 030,
see Fig. 305115d)
− Thru-coolant over Pipes 410 and 100, see Fig. 305115c.
Note :
Angular adjustment from 3° to 18°, see Fig. 305115d.
. Caution !
Left thread is impossible.
