10. CUSTOMER-INTERFACE OPTIONS
10.1 GENERAL
Over Optional Sockets and Part Program, the user may operate functions
other than
M-functions, such as:
− Valves (e.g. for an actuator)
− Message display
− Machine stop following an alarm
− Program selection following an event
− 2 optional Sockets on the machine
10.1.1Option Socket Inputs
Number of inputs per socket: 2
Application: for sensors, pressostats, pushbuttons, etc. which connect to:
Terminal Box XT 800 in the back of the machine.
Optional Socket Input Wiring:
Optional Socket 1: Input 1 is Terminal 891 on Terminal Box XT 800.
Input 2 is Terminal 892 on Terminal Box XT 800.
Optional Socket 2: Input 1 is Terminal 893 on Terminal Box XT 800.
Input 2 is Terminal 894 on Terminal Box XT 800.
10.1.2Option Socket Outputs
Number of outputs per socket: 2
Application: Activation of relays, contactors, electro-valves, electro-
magnets, etc. which connect to:
Terminal Box XT 800 in the back of the machine.
Output voltage, max.: 60 V DC
Output current, max.: 1.5 A DC
Optional Socket Output Wiring:
Optional Socket 1: Output 1 is Terminal 814 on Terminal Box XT
800.
Output 2 is Terminal 824 on Terminal Box XT 800.
Optional Socket 2: Output 1 is Terminal 834 on Terminal Box XT
800.
Output 2 is Terminal 844 on Terminal Box XT 800.

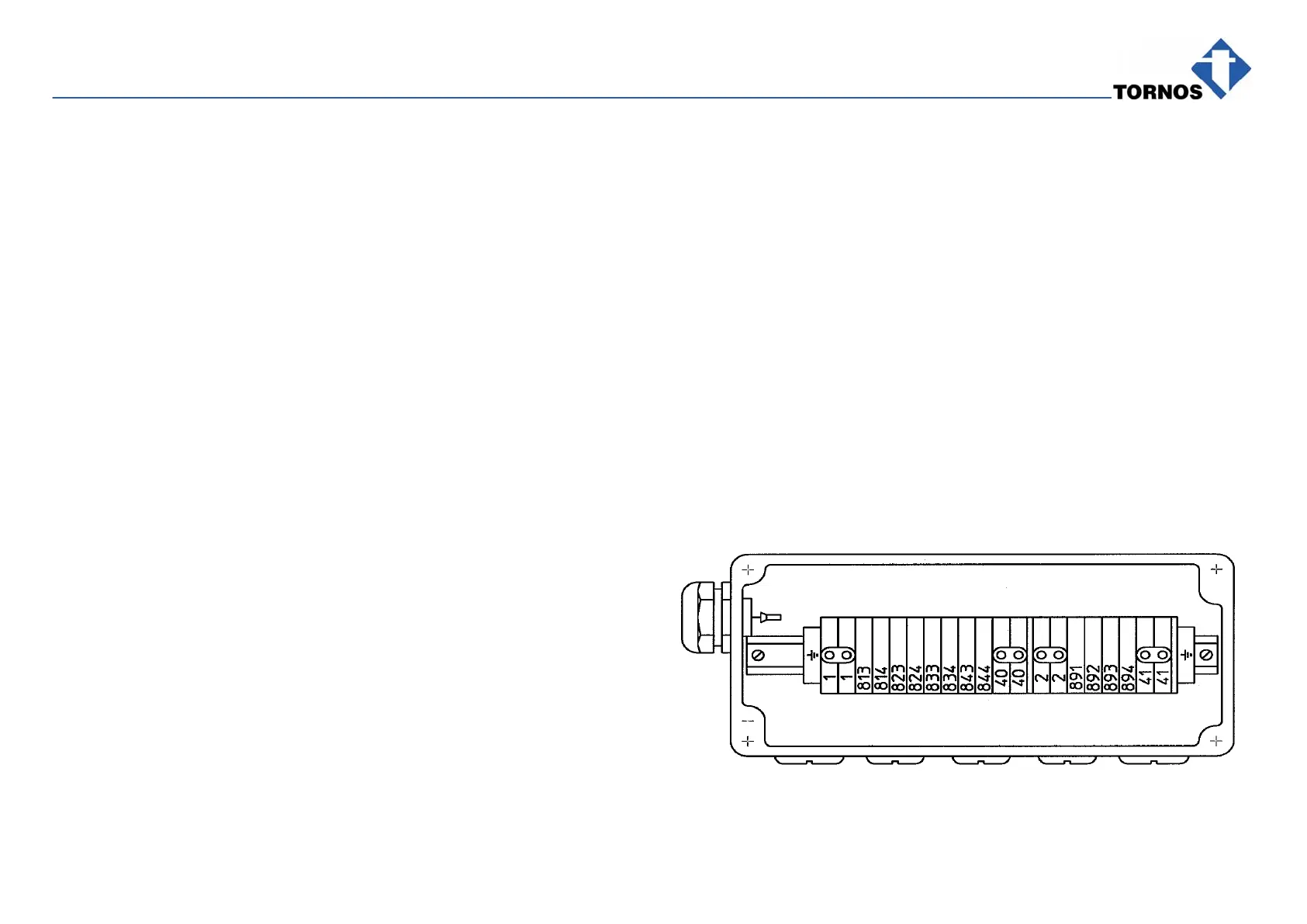

Terminal Box XT 800
