15.6 OPTIMUM CUTTING DATA
TECHNICAL DATA
Feature Description Data
Cutter speed: 30000 rpm
Spindle speed: 50 rpm
Rotation direction: CCW
Milling method: down milling
Milling direction: from outside inwards
Insert: RH
Lubricant pressure: ≥ 3bars
Lubrication method: injection nozzle
1403
M 1,6
The drawing demonstrates, while retaining true proportions, the space
between the cutter and the bore diameter during cutting. To evacuate the
chips, the oil jet must be precisely directed.

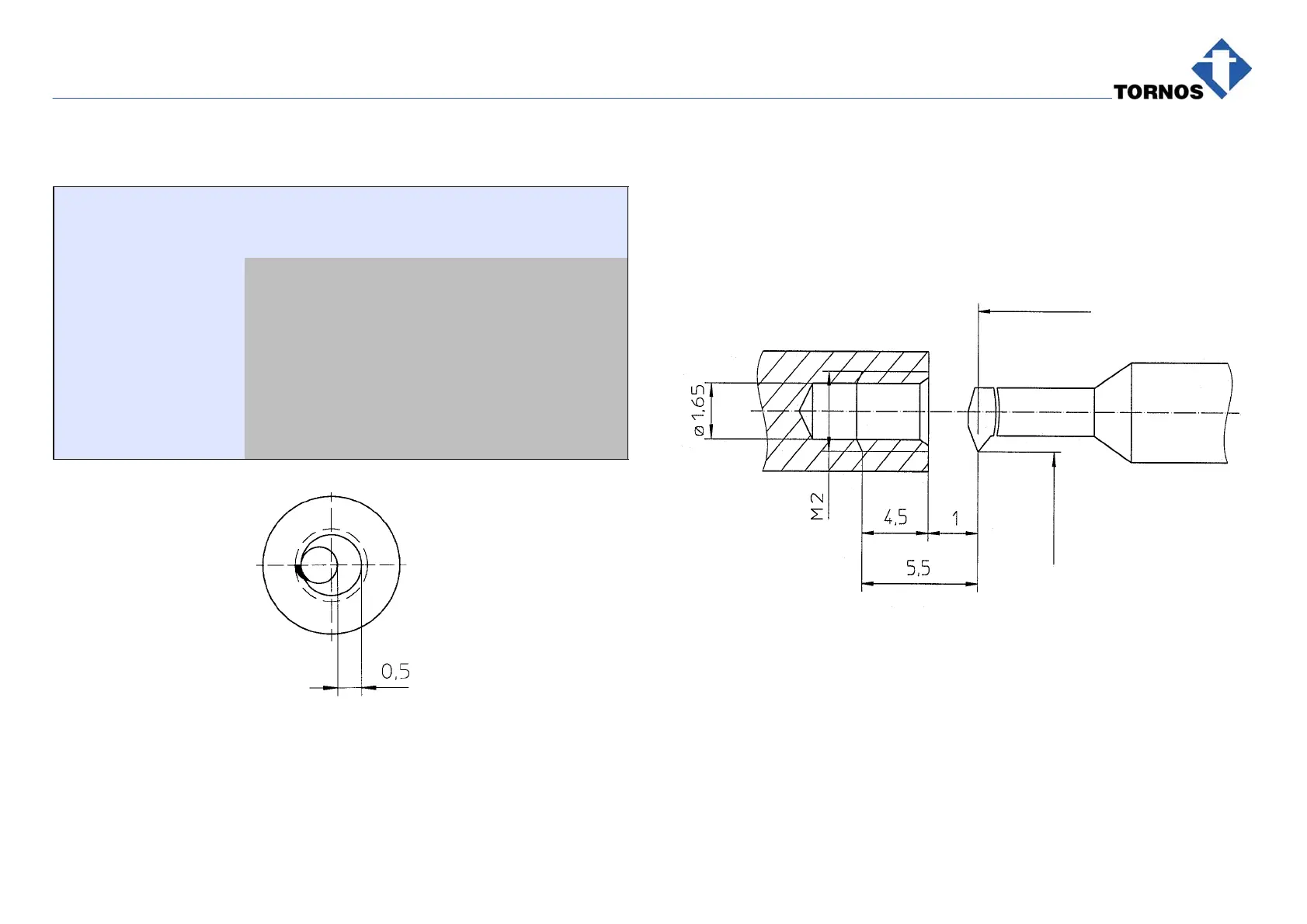

15.7 WHIRLING PROGRAMMING SAMPLES
− Counter-spindle speed: 50 rpm
− NSK spindle speed: 30000 rpm
− Thread: M2 x 0.4 mm
1406
Z3 = −50
X3 = 1.6.
Part
T31-tool geometry
