OPTIONS & ALLIED TOOLING − DECO 7/10 − DECO 7a/10a − DECO 7e/10e
300236 en − 02/07 Chap. 20.2 /7

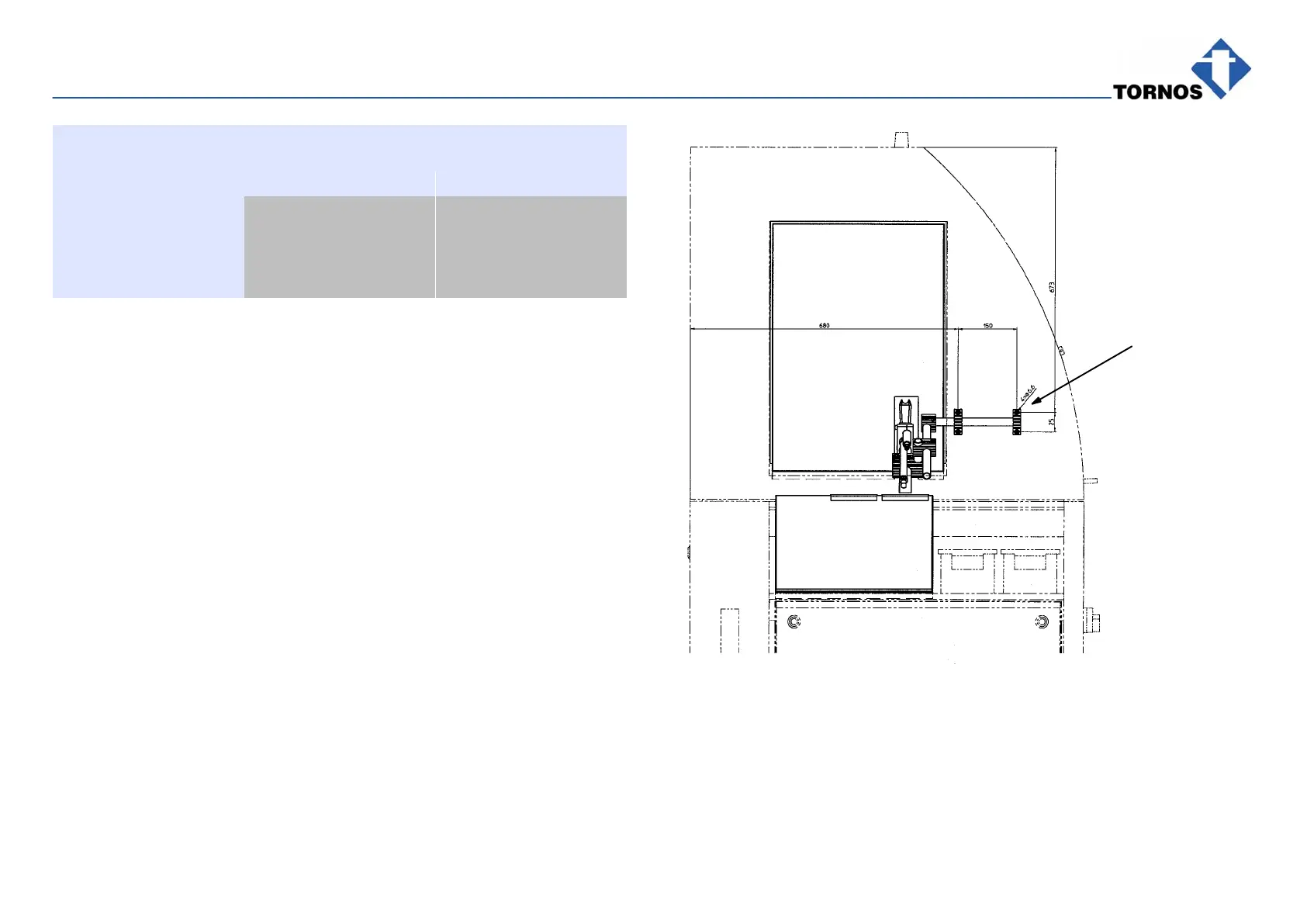

LONG-PART CATCHER CHARACTERISTICS
Feature Description Data
Chute stroke: 125 mm
DECO 7/10:
Part diameter: ∅ 1 à 10 mm
Part length: max. 230 mm
OPERATION
Motion control: by pneumatic thrustors
Selection thrustor control: over two sensors
Long-part catching: in a retractable chute behind counter-spindle
Long-part chute operation: Chute retracts to get clear of counter-spindle and
discharges a part into a basket in a container.
Parts baskets & their container: Baskets are easy to remove and drain.
Lift and pull basket container to remove it from its seat.
4 holes to drill
305128
