OPTIONS & ALLIED TOOLING − DECO 7/10 − DECO 7a/10a − DECO 7e/10e
300236 en − 02/07 Chap. 9. /3
OIL INJECTOR INSTALLATION
To start with : Install the filter.
What to do ? How ? What for ? Notes
Disconnect the cleaning air pipe of
the counter spindle collet and block
the joint ...
Connect the pipes ...
Replace the standard pneumatic
items with the hydraulic ones and
assemble the unit ...
Fit T-joint 480 ...
Bleed the system.
... on Electro-distributor YV 5
... on Electro-distributor YV 15
... acc. to Assembly Drawing
305086, see Page 8/1.
... if the machine is equipped with
Guidebush Coolant System
(305057), see Instructions 300231,
Para. 9.3.
CLEANING OIL INJECTOR FILTER
Cleaning interval : Clean the oil injector filter weekly
or every 50 hours’ operation.
What to do ? How ? What for ? Notes
Cleaning
Remove the filter.
Clean or change the filter.
Fit back the (new) filter.
See Instructions 300234: SPARE
PARTS (305057), Page 39.
ADJUSTING OIL FLOWRATE
To start with : Put the machine in SETTING mode.
Take down the back panel of the machine.
What to do ? How ? What for ? Notes
Setting
Set the valve situated at the input
of the filter.
or
Set Flow Limiters 210 ...
See Guidebush Coolant System
(305057). Instructions 300231,
Para. 9.3.
... located on the thrustor.

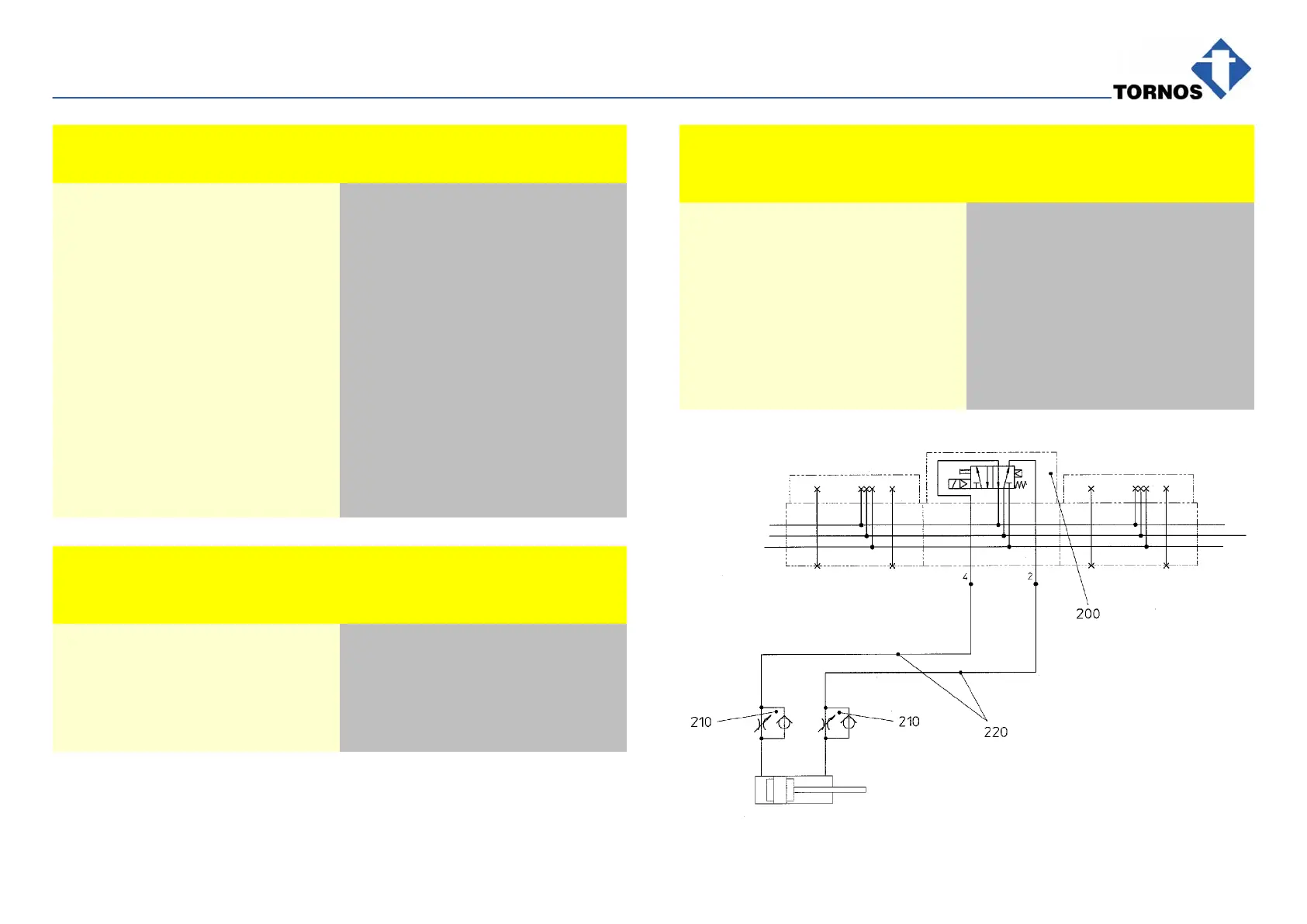

See Assembly Drawing 305090,
below.
305090
