OPTIONS & ALLIED TOOLING − DECO 7/10 − DECO 7a/10a − DECO 7e/10e
300236 en − 02/07 Chap. 11.3 /3

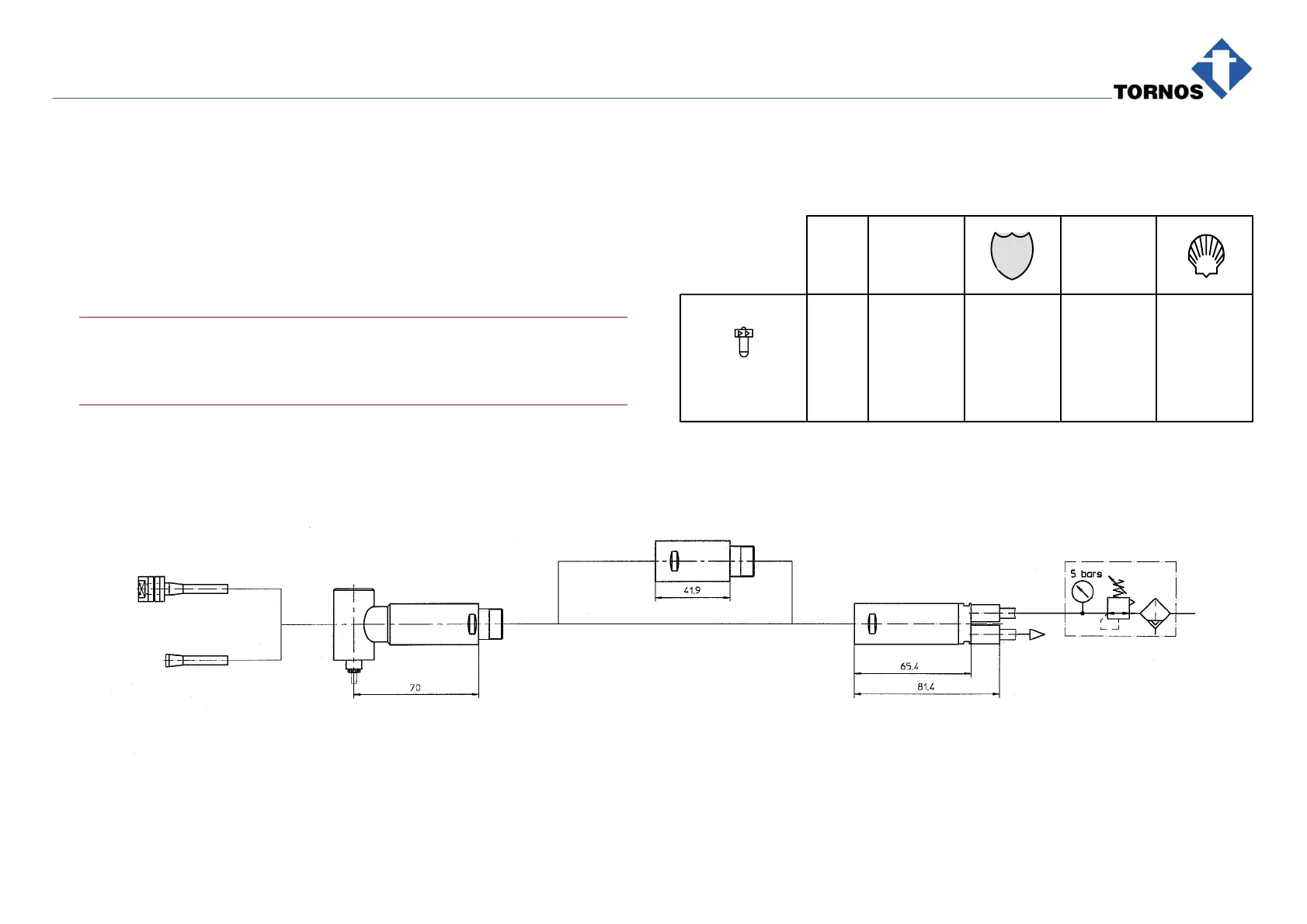

11.3 NSK SPINDLE
Fig. 1003
Operation and maintenance: see the NSK NAKANISHI INC. supplier’s docu-
mentation, delivered with each attachment.
Pneumatic drive : acc. to Diagram 305098 in Page 10/6 and
Electrical Documentation 222 E 02 01
Lubrication rate to set : 30 to 40 drops per minute
Δ Attention !
The motor must not run without oil. Wait about 2 min before the oil
reaches the spindle.
Checking : Disconnect at spindle level and wait till oil arrives.
Oil : acc. to the table below.
ENERGOL
HLP−D10
TELLUS
OIL C 10
VELOCITE
OIL No. 6
DTE 21
Mobil
M
OTOREX
Pneumatics
Standard
COREX
EP D10
ISO 10
ISO−L−FD 10
BP
1003
NSK ASTRO SYSTEM SPINDLE
Motor AM−300 216959
Air Unit K−234 216966
30000 rpm
Speed Reducer ARG−01 216963
90 Spindle RA−100 216961
Arbor KCH−02 216964
Chuck CH8
°
