RemovingtheDifferentialGearAssembly(4-WheelDriveAxle)(continued)

g226494

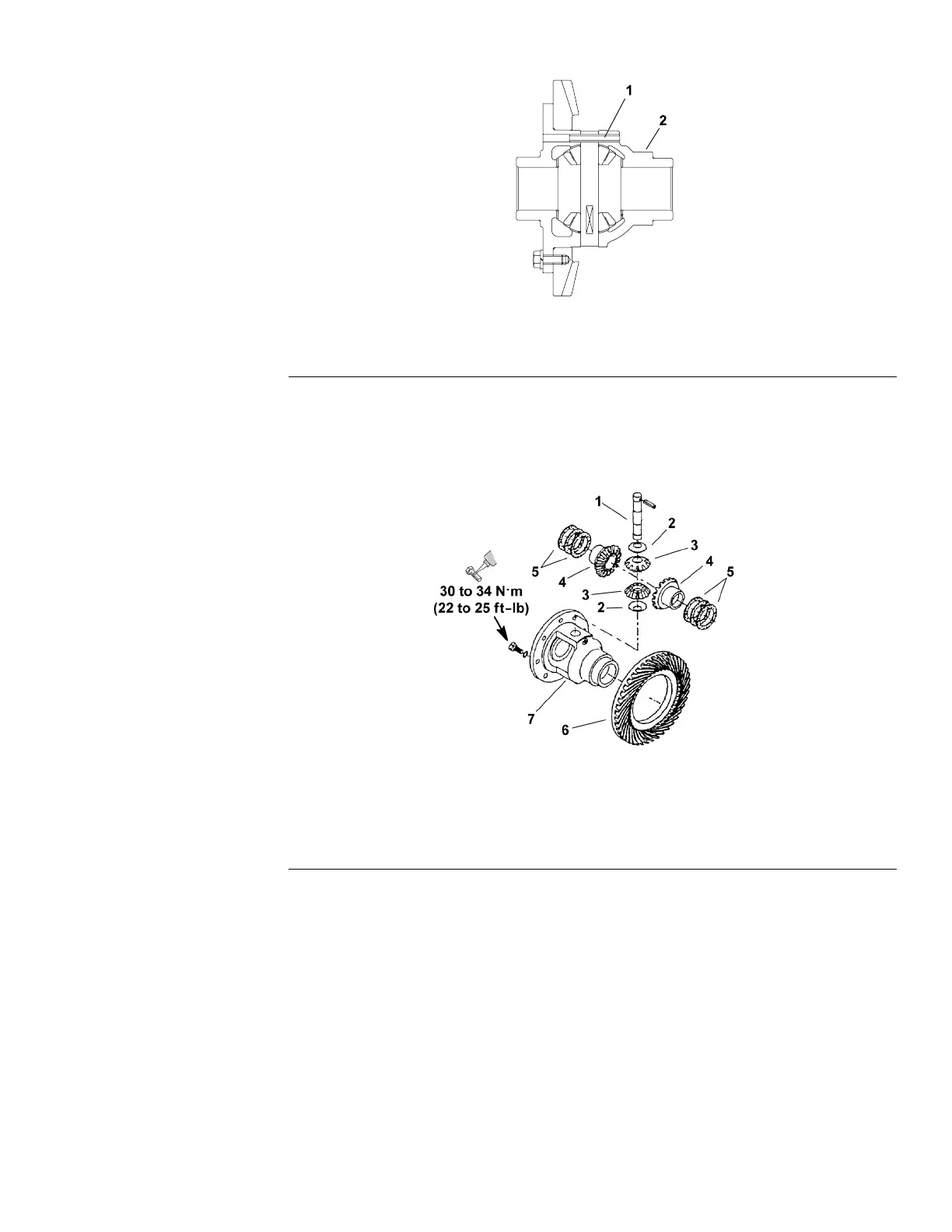

Figure276

1.Springpin2.Differentialcase

6.Drivethespringpinfromthedifferentialcasewithapunchandhammer.

Discardthespringpin(Figure276).

Note:Markandarrangeallcomponentssothattheycanbeassembledin

theiroriginalposition.

g226495

Figure277

1.Differentialpinionshaft4.Sidegear(2each)7.Differentialcase

2.Pinionwasher(2each)5.Sidegearshims

3.Piniongear(2each)

6.Ringgear

7.Removethedifferentialpinionshaft,piniongearsandpinionwashers.

Removethedifferentialsidegearsandsidegearshims.Removethering

gearonlyifitwillbereplaced(Figure277).

Note:Replacementringgearsareonlyavailableinmatchedringandpinion

sets.

Groundsmaster

3280-D/3320

Page8–65

DriveAxles:ServiceandRepairs

05138SLRevB
