HeaterCore

g243783

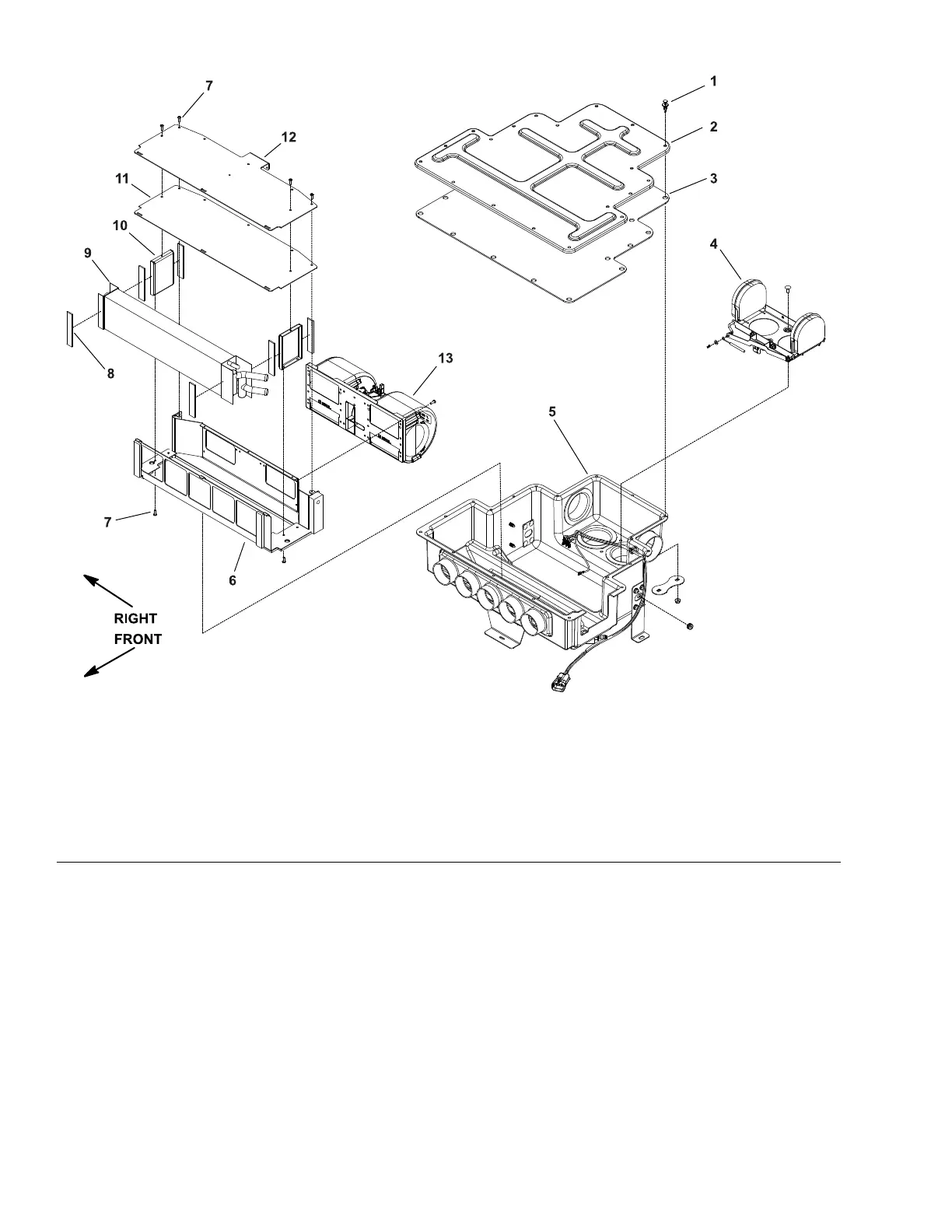

Figure313

1.Rivet(19each)

6.Mountbracket

11.Covergasket

2.Mixingboxcover

7.T apscrew(11each)

12.Mountbracketcover

3.Coverinsulation8.Gasket(6each)13.Blowerfan

4.Airdiverterassembly

9.Heatercore

5.Mixingbox

10.Heatercoremountbracket(2each)

Note:Theheatercorecanberemovedandinstalledwiththemixingbox(item5

inFigure313)attachedtothecabheadliner.

RemovingtheHeaterCore

1.Parkthemachineonalevelsurface,lowerthecuttingdeck,shutoffthe

engine,settheparkingbrake,andremovethekeyfromthekeyswitch.

2.Removetherooffromthetopofthecabtogetaccesstotheheatercore;

refertoRemovingtheRoofAssembly(page11–4).

3.Forassemblypurposes,labeltheheaterhoses.Loosenthehoseclamps

anddisconnectboththeheaterhosesfromthetubesontheheatercore.

OperatorCab:ServiceandRepairs

Page11–10

Groundsmaster

3280-D/3320

05138SLRevB
