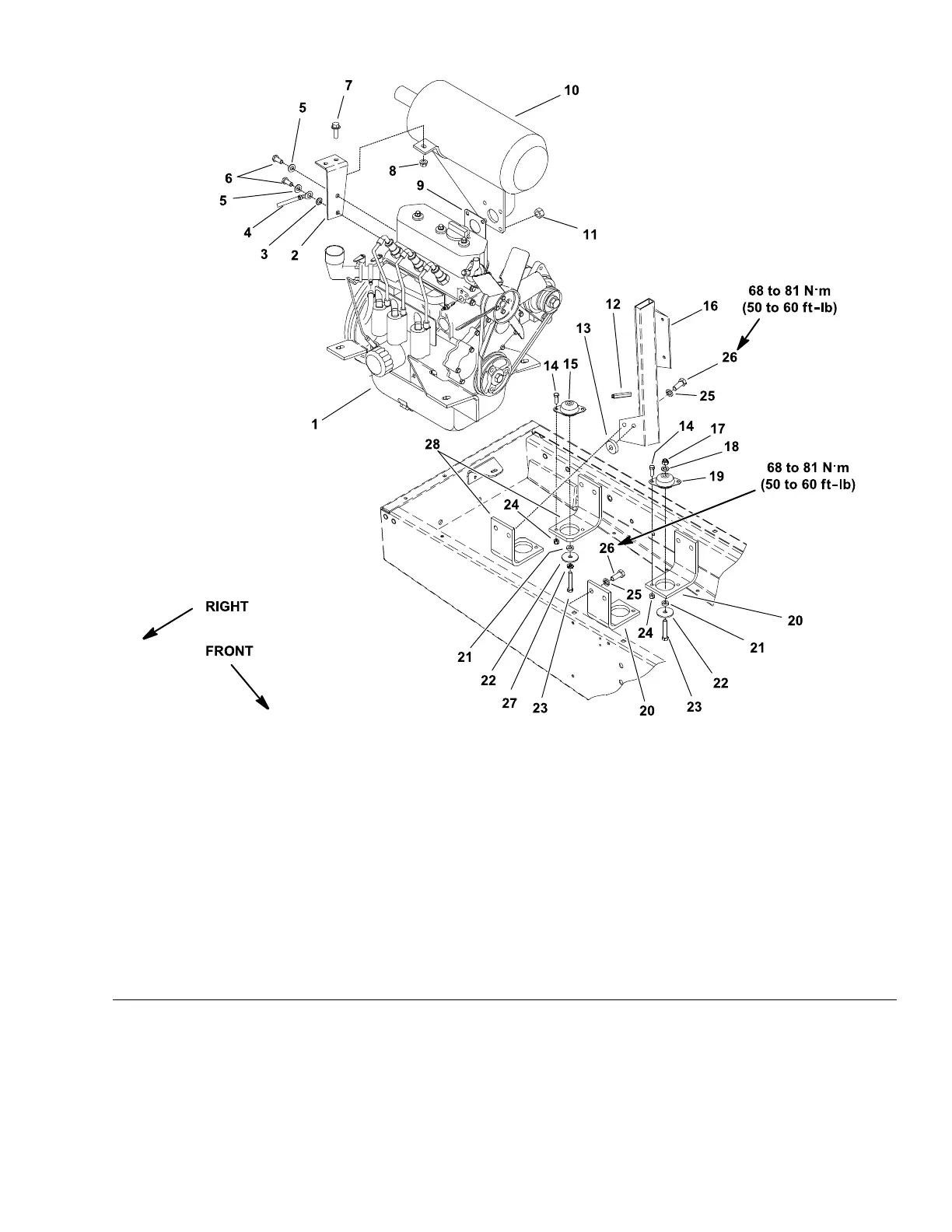

Engine
g230308
Figure15
1.Engine
11.Hexnut(4each)21.Spacer(4each)
2.Muferbracket
12.Frametrim
22.Reboundwasher(4each)
3.Lockwasher
13.Spacer23.Bolt(4each)
4.Negativebatterycable
14.Bolt(2eachpermount)24.Locknut(2eachpermount)
5.Flatwasher
15.Engineshockmount(redpatch)25.Lockwasher(2eachpermount)
6.Bolt16.Aircleanermountingbracket
26.Bolt(2eachpermount)
7.Flange-headscrew
17.Locknut(3each)27.Lockwasher(1each)
8.Flangenut
18.Flatwasher(3each)
28.Enginemountbracket
9.Mufergasket19.Engineshockmount(3each)
10.Mufer
20.Enginemountbracket
Groundsmaster
®
3280-D/3320
Page3–15
GasolineEngine:ServiceandRepairs
05138SLRevB
