Troubleshooting the Installation

6-9

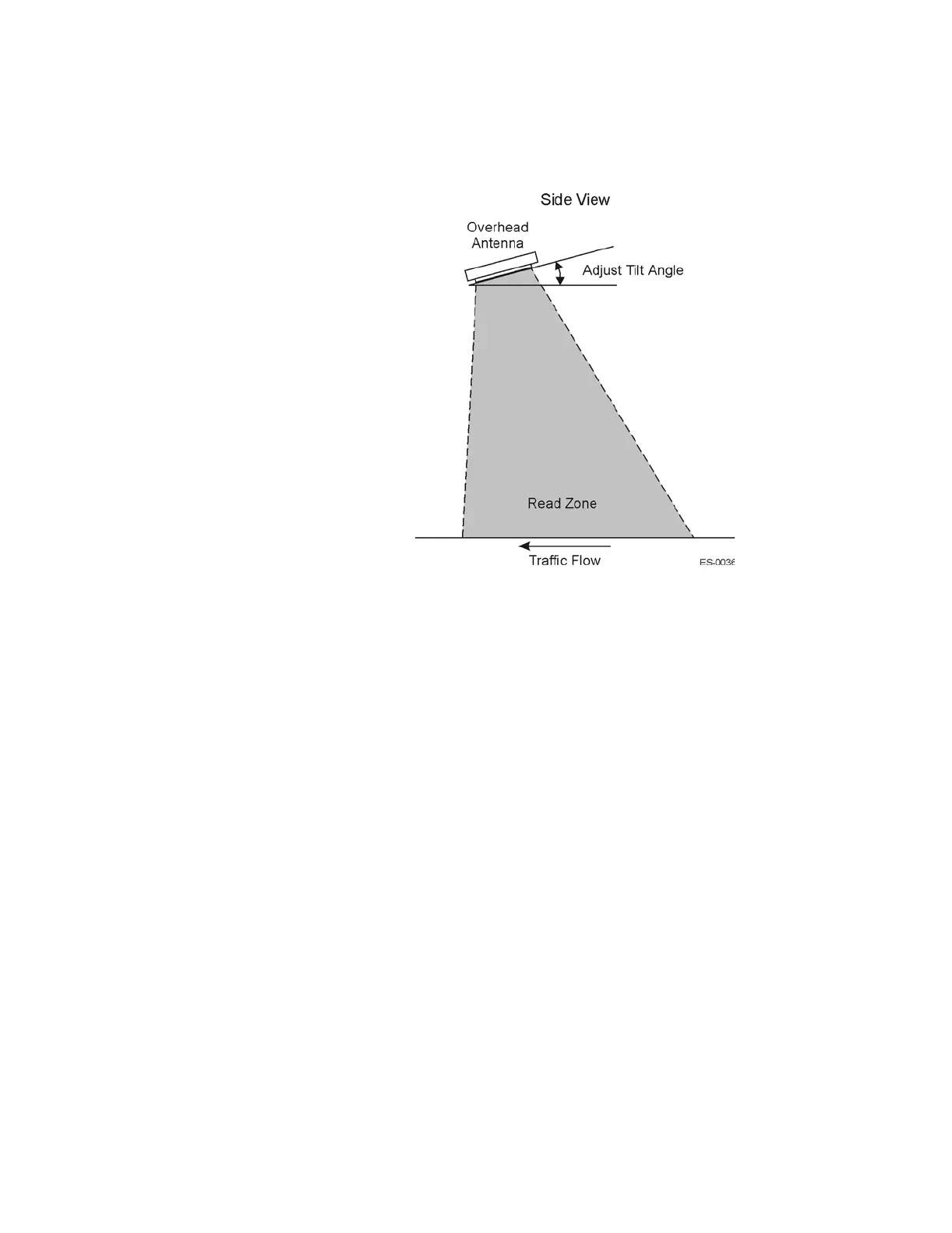

Figure 6-3 Antenna Tilt Angle Adjustment

Adjusting the Downlink Antenna Side Angle

In the IT2200 Reader System with Multimode Capability, the downlink antenna side

angle is adjusted so that the RF transmits toward the center of the toll lane, placing the

RF footprint where it is useful. If the side angle is too small the footprint can project

into the lane nearest to the downlink antenna. If the side angle is too great, and that the

RF footprint is projecting toward the uplink antenna, you can reduce the side angle so

that the antenna’s RF footprint is evenly placed within the correct lane boundaries

(Figure 6-4).
