IT2200 Reader System with Multimode Capability Installation & Maintenance/Service Guide

4-8

Overpass Mount

In the overpass mount, the reader logic card is installed in the host computer, and the

RF module, UTA(s), and check tag antenna are attached to a 5.0 to 7.6cm (2- to 3-in)

pipe that is supported from an overpass. These components are mounted approxi-

mately 4.5 to 5.5 m (15 to 18 ft) above the road surface.

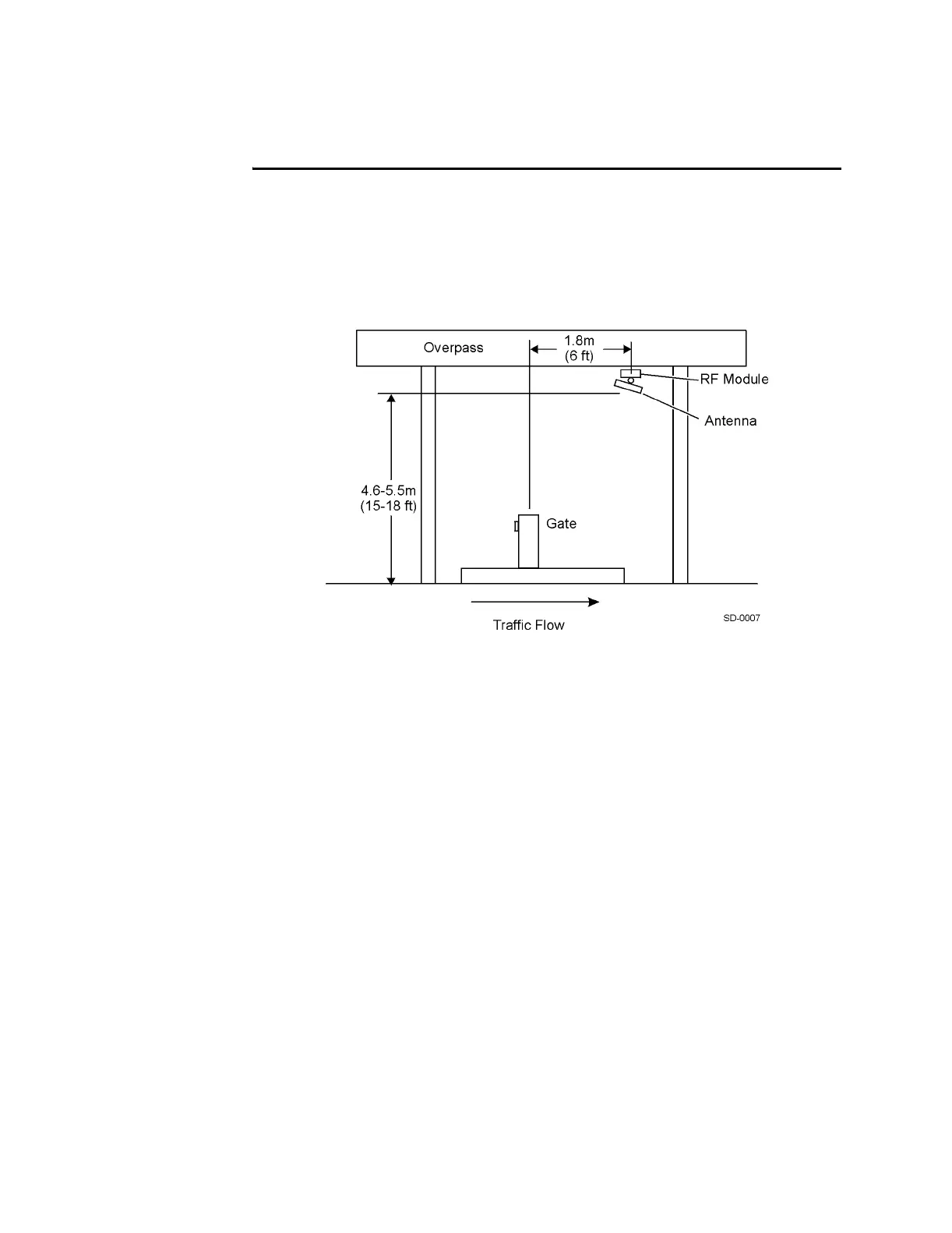

Figure 4-3 Overpass Mount
