TransCore Amtech IT2200 - Overhead Gantry Mount; Figure 4-2 Overhead Gantry Mount

To Next Page

To Previous Page

Installing the IT2200 Reader System

4-7

Overhead Gantry Mount

In the overhead gantry mount, the reader logic card is installed in the host computer,

and the RF module, UTA(s), and check tag antenna are attached to a 5.0- to 7.6-cm (2-

to 3-in) pipe that is supported from a gantry that spans the lanes. These components

are mounted approximately 4.5 to 5.5 m (15 to 18 ft) above the road surface.

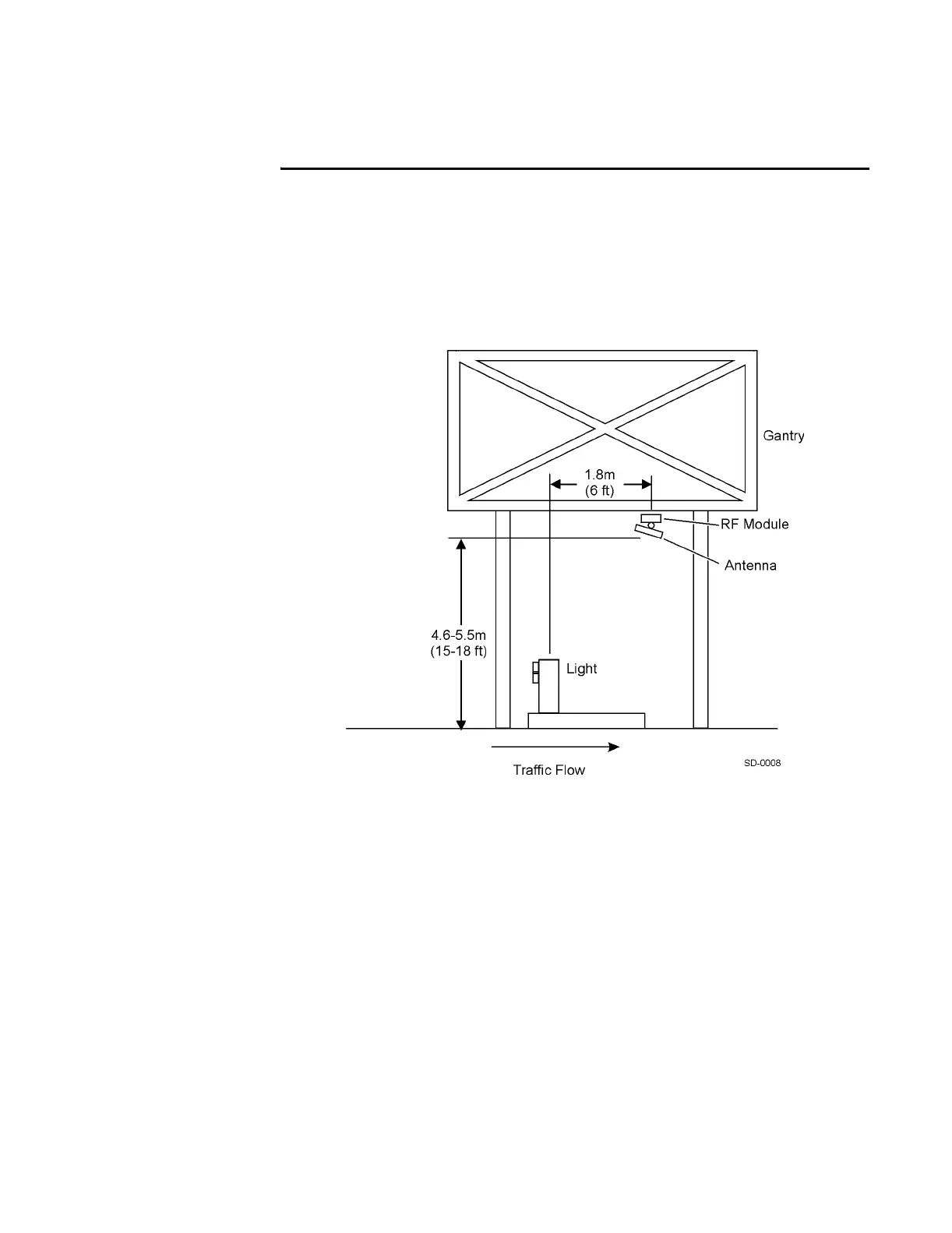

Figure 4-2 illustrates a typical overhead gantry mount.

Figure 4-2 Overhead Gantry Mount
