3-3

Chapter 3

System Components

This chapter presents an overview of the IT2200 Reader System with

Multimode Capability and then describes the individual components of

the reader system and their relationship to each other.

Overview

The components of the IT2200 Reader System with Multimode Capability are as

follows (Figure 3-1):

• IT2020 Reader Logic Card

• IT2611 RF Module

• AA3152 Universal Toll Antenna (UTA) or AA3153 Beacon Antenna

• IT2502 Check Tag Antenna

• IT2221, IT2211, IT2235, and ATA-type Tags

• IT2410 Tag Programmer

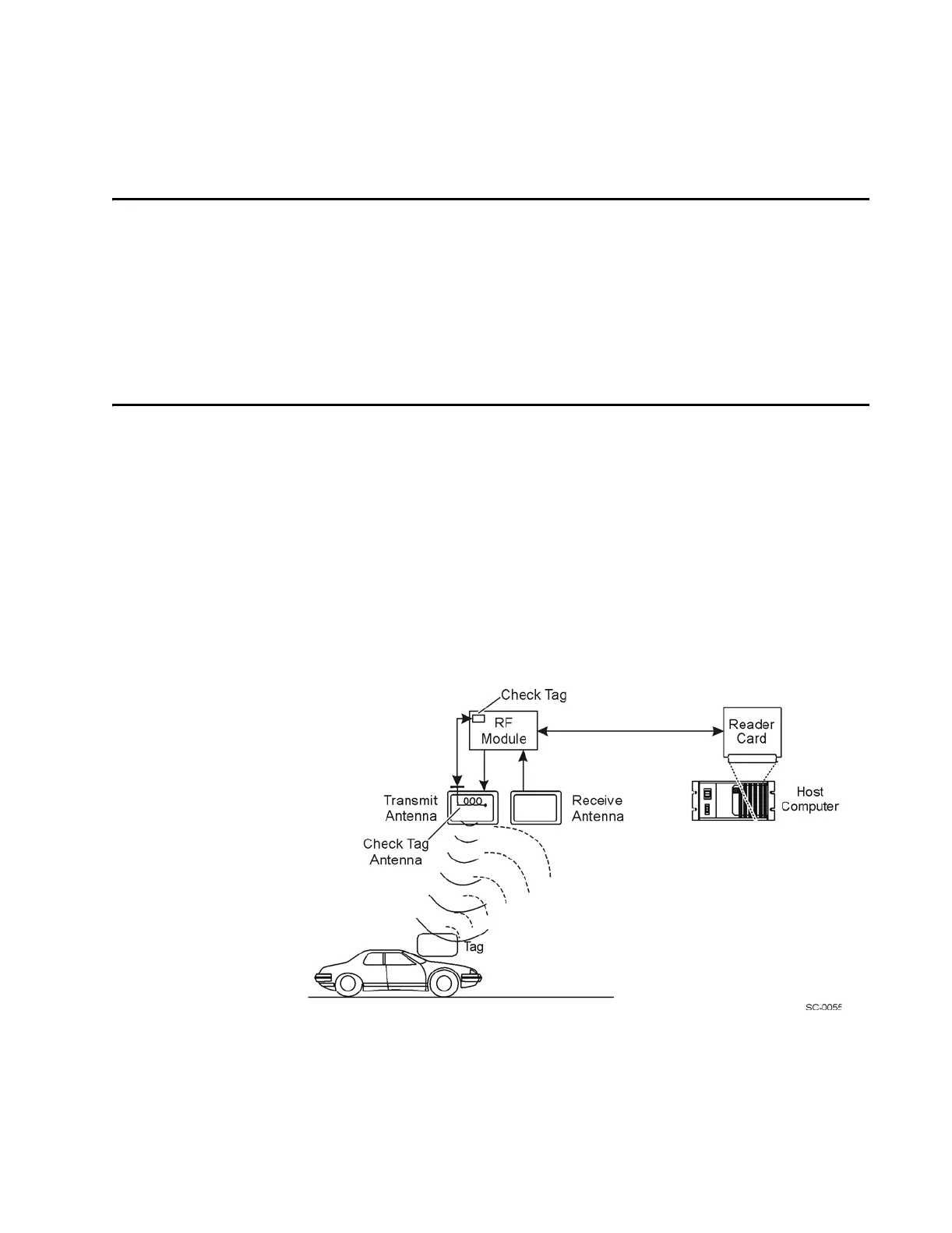

Figure 3-1 Relationship of the IT2200 Reader System Components (Bistatic

Installation Shown)

The IT2200 Reader System with Multimode Capability consists of the reader, RF

module, antennas, tags, and tag programmer. The reader's RF source is a separate
