IT2200 Reader System with Multimode Capability Installation & Maintenance/Service Guide

4-22

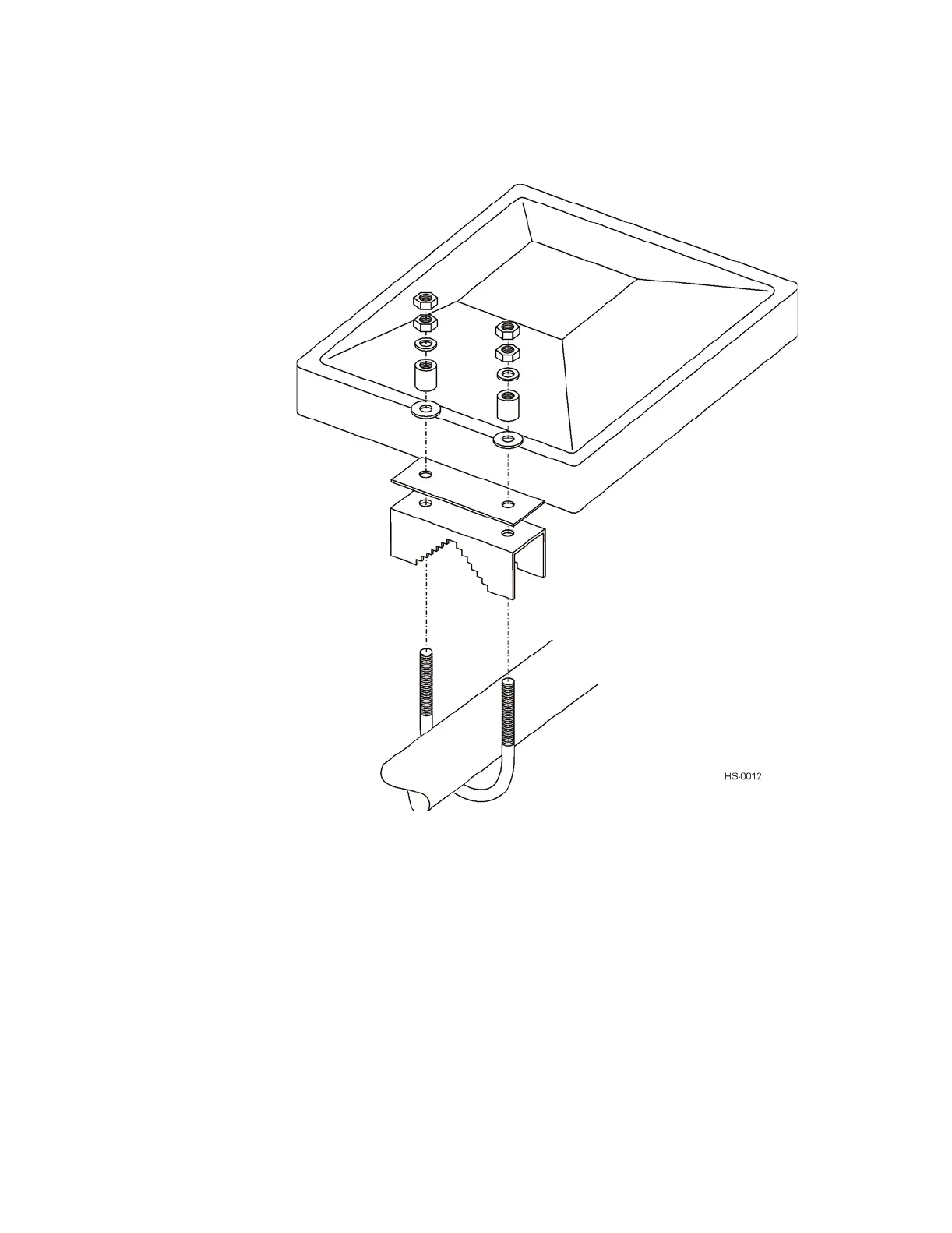

Figure 4-16 AA3153 Beacon Antenna Mounting

Note: The location and positioning of the beacon antenna(s) can vary depending

on the site configuration. These instructions provide a starting point that will

work for many typical installations.

To install the beacon antenna

1. Locate the antenna along the mounting pipe and insert a U-bolt around the pole

and through the bracket. Place lock washer and nut over each side of U-bolt.

Repeat for the other U-bolt.

Note: For installations requiring horizontal polarization, mount the beacon antenna

with the Amtech

® label horizontal to the horizon. For installations requiring vertical

polarization, rotate the antenna 90° so that the Amtech

® label is perpendicular to the

horizon.
