Hardware Interfaces

D-19

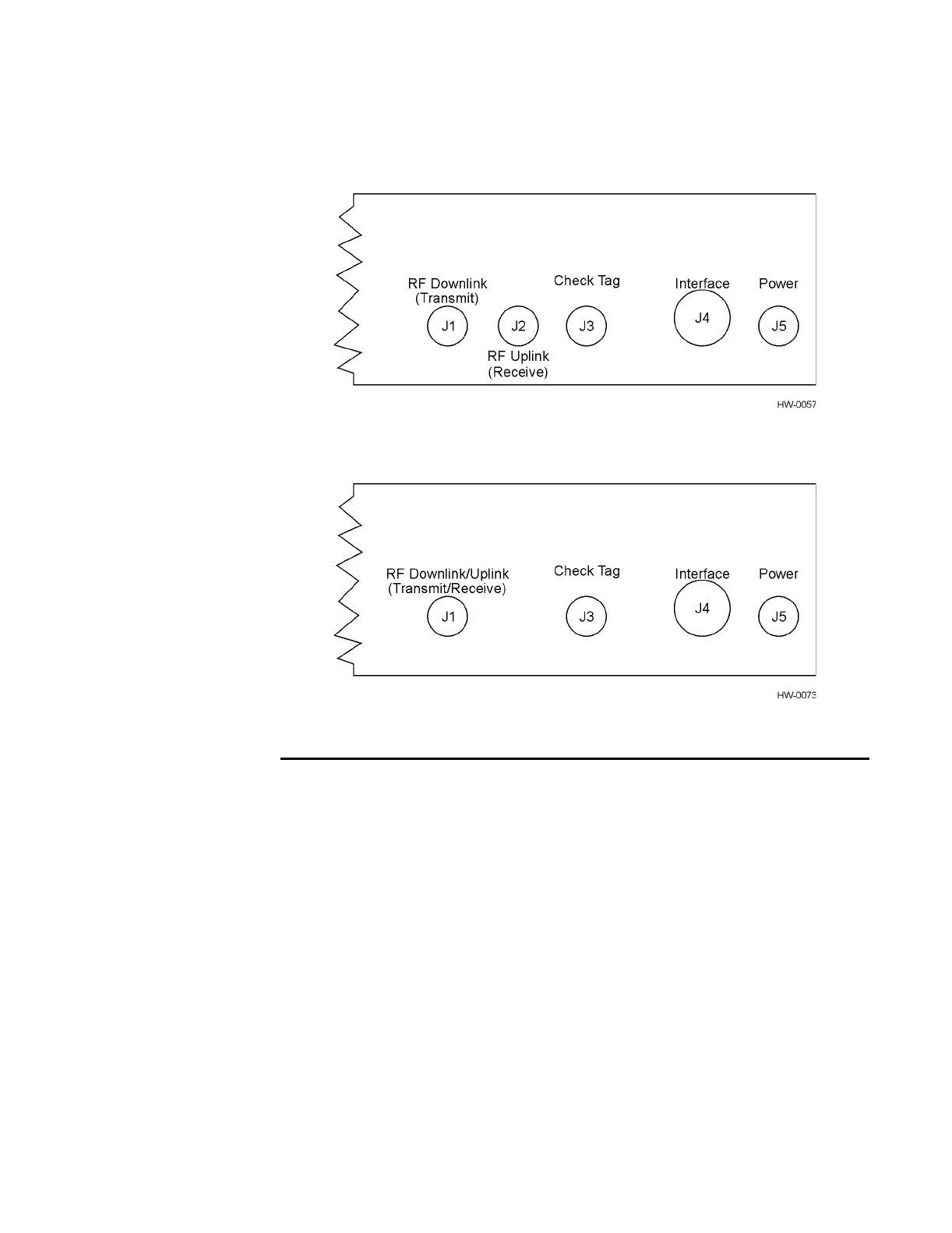

Figure D-4 Bistatic RF Module Interface

Figure D-5 Monostatic RF Module Interface

Interface Connector

This connector is a circular MIL-C-26482 style commercial grade connector, 26-pin

jam nut receptacle. Figure D-6 shows the connector pin-out locations.
