IT2200 Reader System with Multimode Capability Installation & Maintenance/Service Guide

2-16

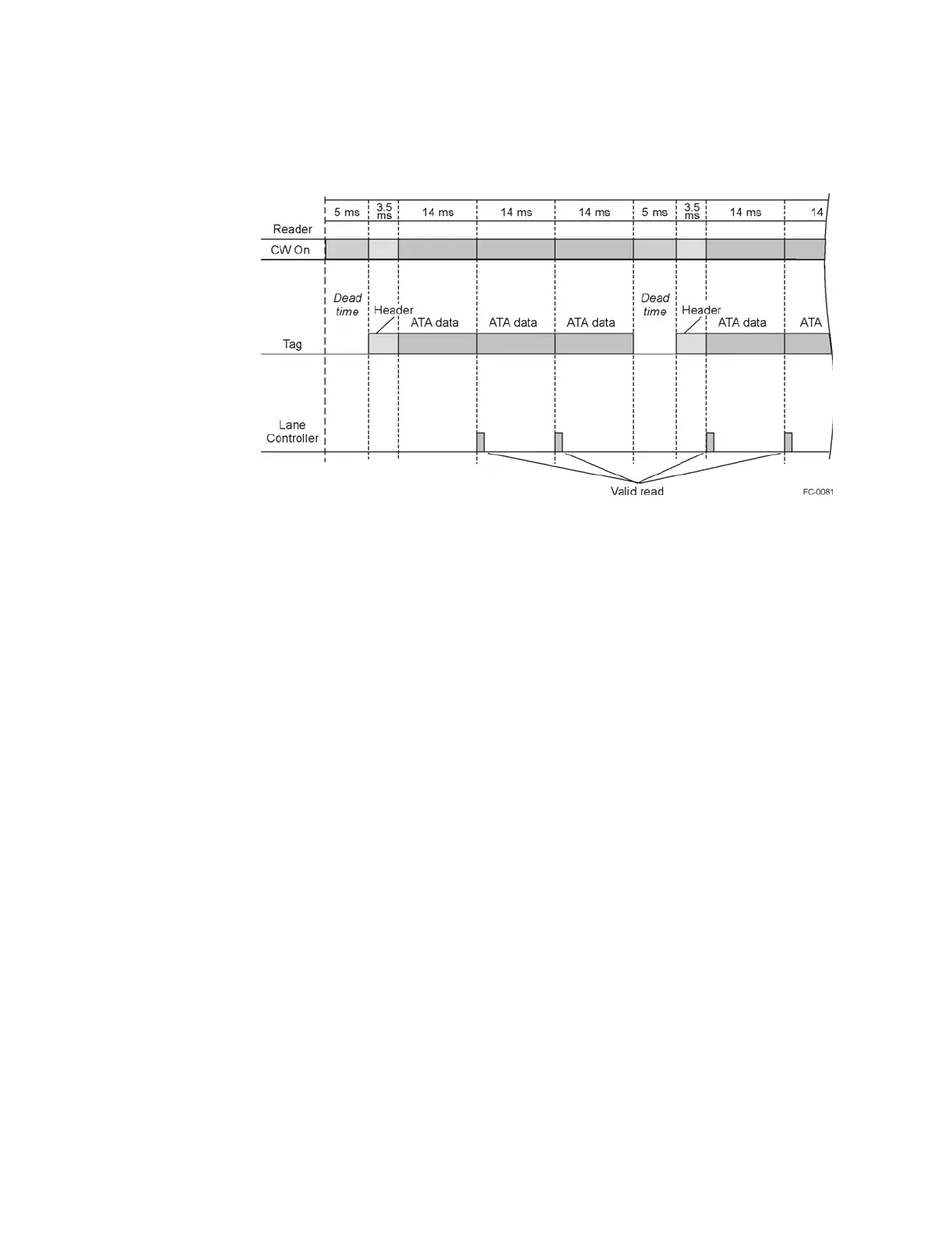

Figure 2-9Typical Read-Only Transaction Using the IT2200 Reader System in

ATA Mode Operation with an ATA-Type Tag
