IT2200 Reader System with Multimode Capability Installation & Maintenance/Service Guide

4-20

in a monostatic configuration. A mounting kit is provided with each antenna that

includes:

• Antenna

• Two U-bolts

• Two brackets

• Four spacers

• Eight nuts

• Four lock washers

• One length of heat-shrink tubing

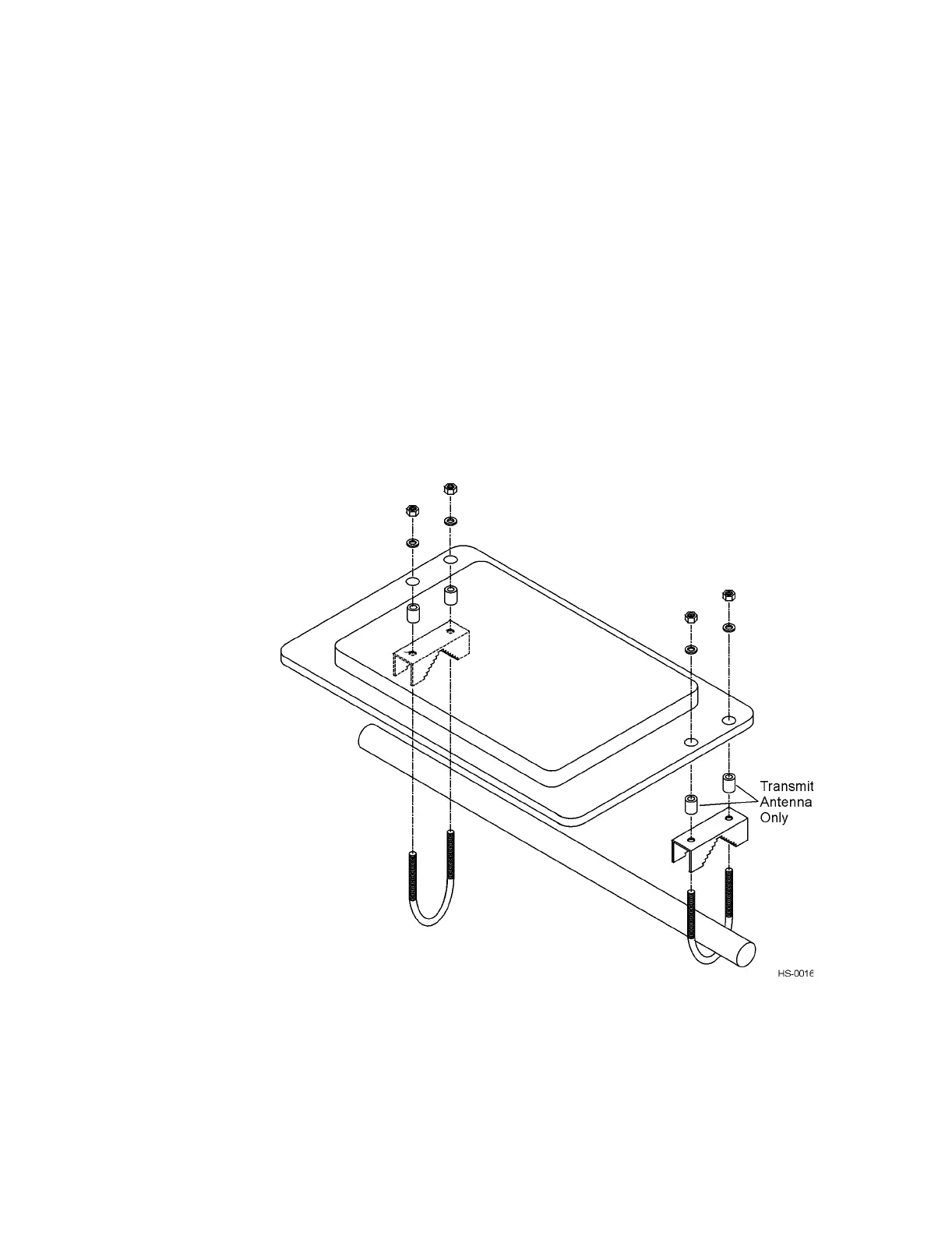

Figure 4-15 shows the correct way to mount and connect a UTA.

Figure 4-15 AA3152 UTA Mounting and Connections

Note: When installing the UTA use only the mounting hardware provided. Do not use

oversized washers to secure the plastic radome to the bracket. This practice can

weaken the radome material.
