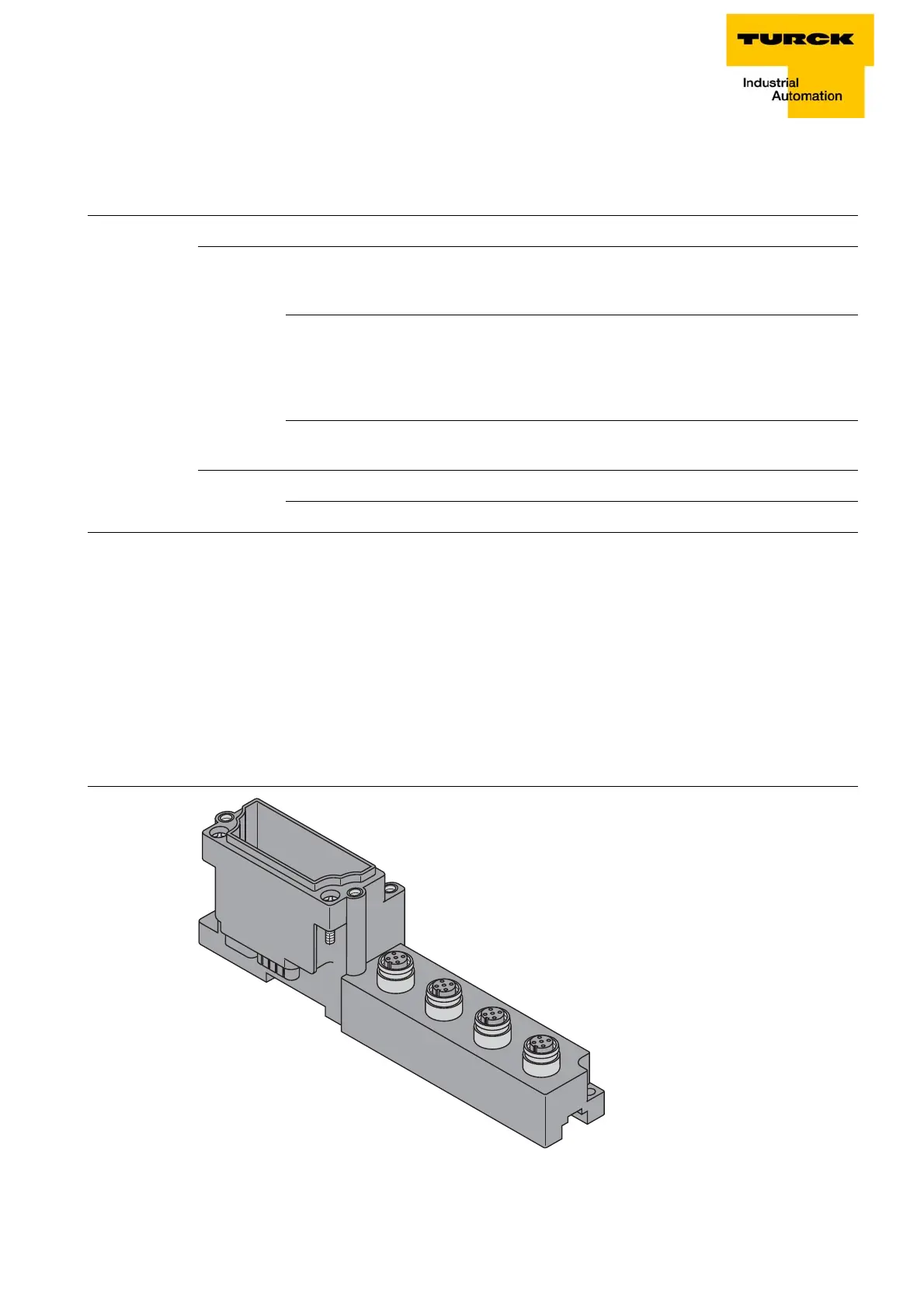

BL67-8DO-R-NO
11.2.2 Diagnostic and status messages
LED status displays
Diagnostic data
none
11.2.3 Module parameters
none
11.2.4 Base modules/pin assignment
 BL67-B-4M12-P
Figure 11-4:
1
2
3
0
Table 11-3:
LED status dis-
plays
LED Display Meaning Remedy
DRed,
flashing,
0.5 Hz
Diagnostics pending -
Red Module bus communication
failure
Check if more than two ad-joining
electronics modules have been
pulled. This concerns modules
located between this module and
the gateway.
OFF No error messages or diagnos-
tics
-
0 to 7 Green Status of channel x = "1" -
OFF Status of channel x = "0" -
BL67-B-4M12
