BL67-1CVI
12.4.5 Base modules/pin assignment
 BL67-B-1M12
Figure 12-31:
0
Figure 12-32:
4
1
3
2
5
v
1 = Schirm
2 = V
SENS
3 = GND
4 = CAN_H
5 = CAN_L

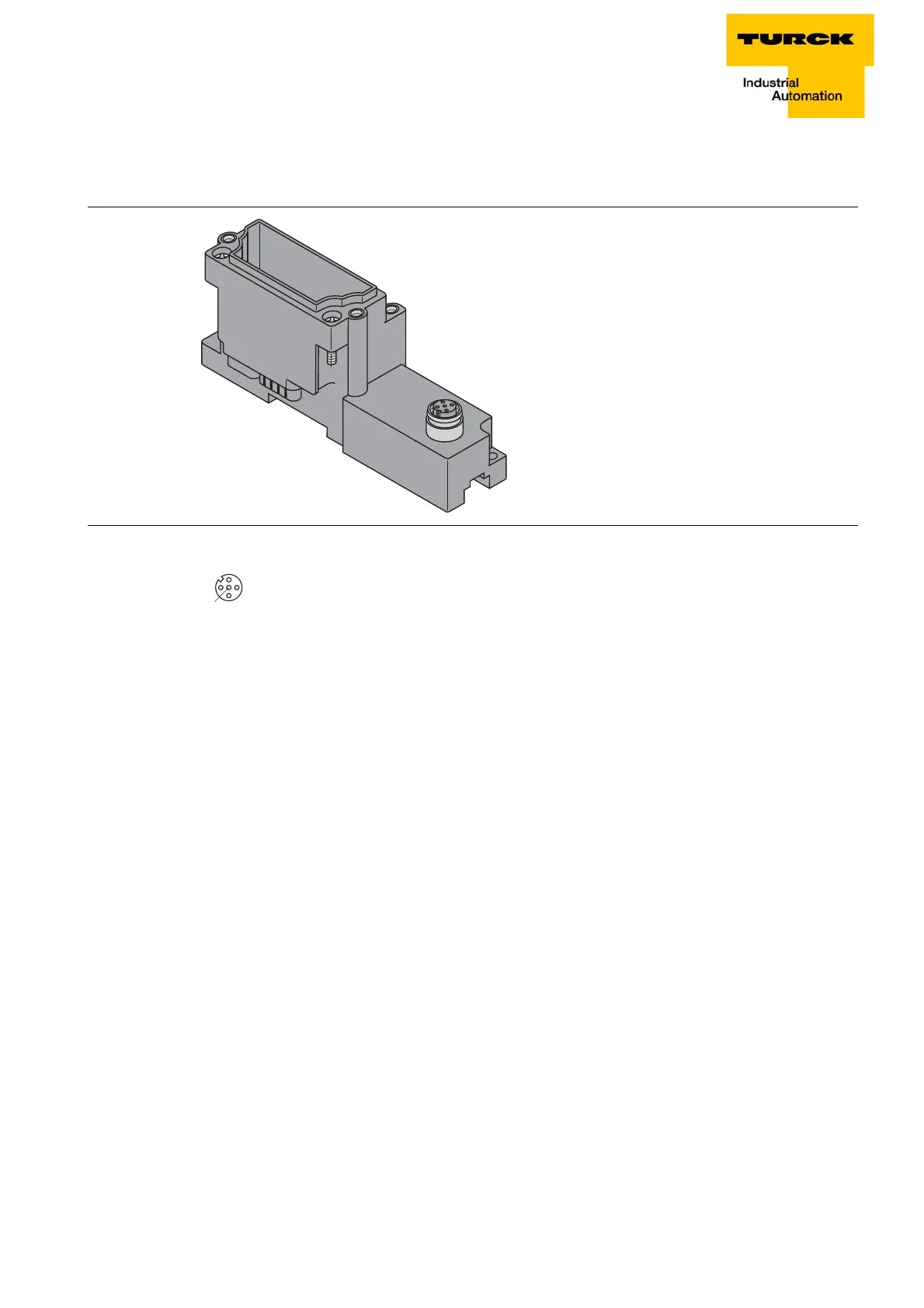

BL67-B-1M12
Pin assignment
BL67-1CVI with
BL67-B-1M12
