turck BL67 - Signal Assignment

D300529 0115 - BL67 I/O modules
5-25

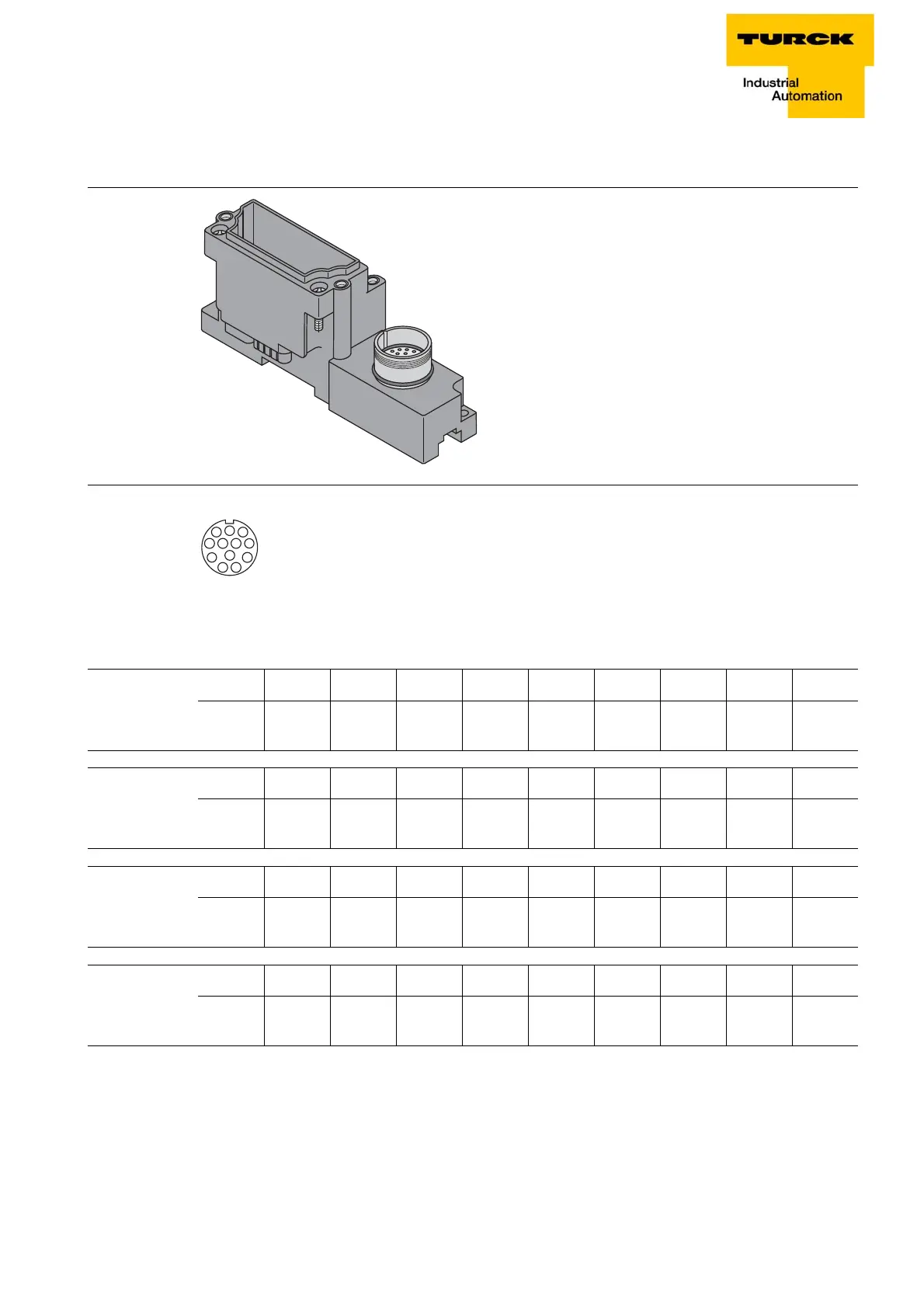

BL67-8DI-P
 BL67-1M23
Figure 5-34:
0
Figure 5-35:
81
9
712102
54
63
11
v
1 = Signal 0
2 = Signal 1
3 = Signal 2
4 = Signal 3
5 = Signal 4
6 = Signal 5
7 = Signal 6
8 = Signal 7
9 = V
SENS
10 = V
SENS
11 = V
SENS
12 = GND
5.4.6 Signal assignment
n = process data offset in input data; depending on
extension of station and the corresponding fieldbus
C = slot no.
P = pin no.
BL67-B-1M23
Pin assignment
BL67-8DI-P with
BL67-B-1M23
Table 5-23:
Signal assign-
ment
with BL67-B-
8M8
ByteBit 7Bit 6Bit 5Bit 4Bit 3Bit 2Bit 1Bit 0
In n C7P4 C6P4 C5P4 C4P4 C3P4 C2P4 C1P4 C0P4
Table 5-24:
Signal assign-
ment
with BL67-B-
4M12
ByteBit 7Bit 6Bit 5Bit 4Bit 3Bit 2Bit 1Bit 0
In n C3P2 C2P2 C1P2 C0P2 C3P4 C2P4 C1P4 C0P4
Table 5-25:
Signal assign-
ment with
BL67-B-4M12-P
ByteBit 7Bit 6Bit 5Bit 4Bit 3Bit 2Bit 1Bit 0
In n C3P2 C3P4 C2P2 C2P4 C1P2 C1P4 C0P2 C0P4
Table 5-26:
Signal assignment
with
BL67-B-1M23
ByteBit 7Bit 6Bit 5Bit 4Bit 3Bit 2Bit 1Bit 0
In n C0P8 C0P7 C0P6 C0P5 C0P4 C0P3 C0P2 C0P1
