turck BL67 - End Plate

D300529 0115 - BL67 I/O modules
13-5
Building up a BL67 station

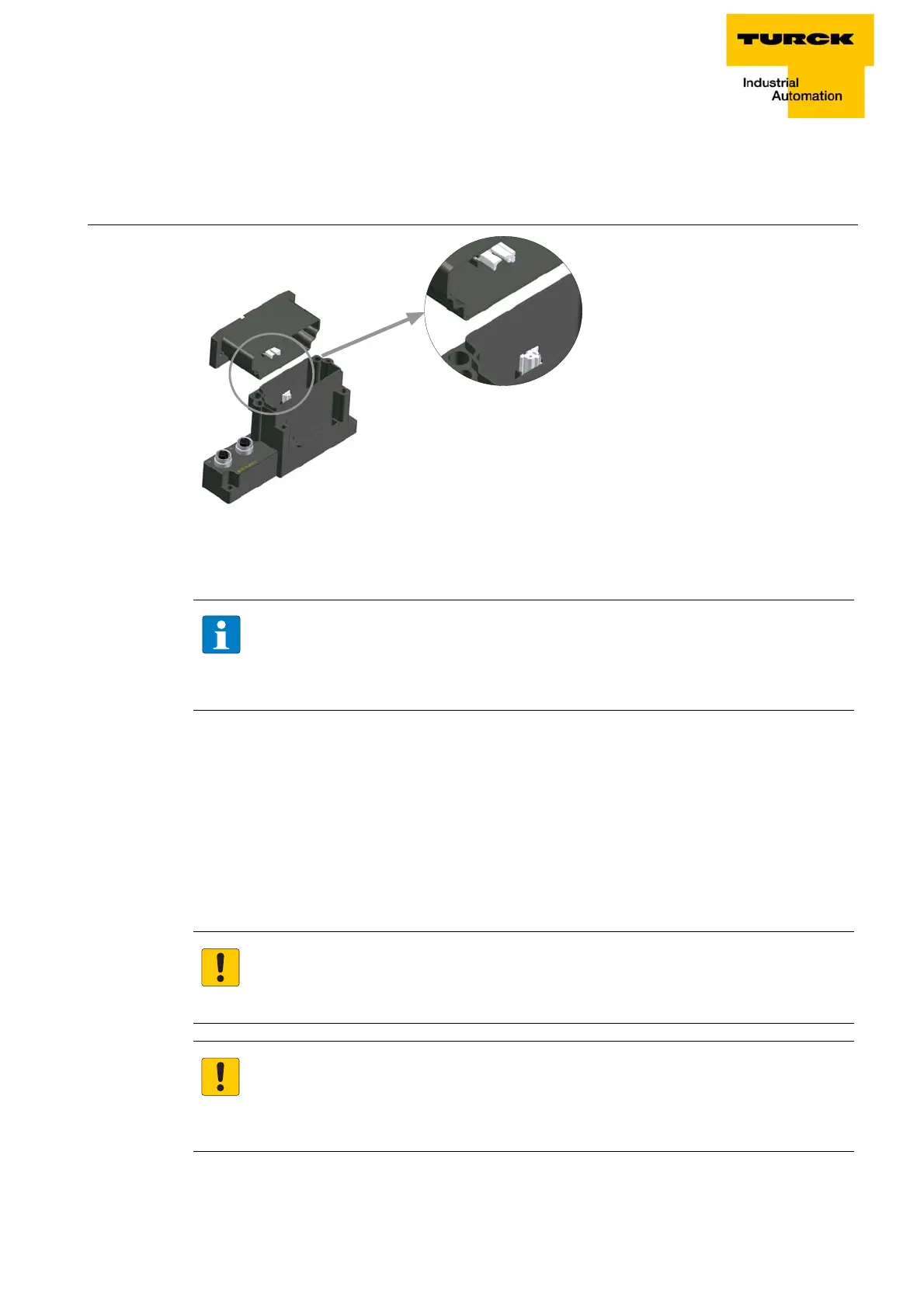

Should the electronics module be pulled, one half of the coding element remains in the base module,
the other half remains in the electronics module. It is now possible to mount a new electronics module
only when its coding matches that of the base module.
Figure 13-1:
When replacing an electronics module (plugging a new electronics module), remove and dispose of the
lower part of the coding element (that part destined for the base module). The original lower part of the
coding element, which remains in the base module, cannot be removed
NOTE
.
13.2.5 End plate
The end plate is mounted onto the last base module of a station. It is fixed with two screws and serves
to protect the module bus contacts and to guarantee the protection class IP67.
Method:
1 In
sert the end plate into the last base module of the station so that the module bus contacts of the
base module are covered by the end plate.
2 Tighten both screws of the end plate.
coding element
When all modules are mounted, the supply to the module bus should be applied to check if
the station communication functions correctly (no false mounting, no empty slots, etc). The
field voltage should be applied only when the correct functioning of the station has been
established.
ATTENTION!
Wrong mounting of the end plate
Protectio
n class IP67 not guaranteed
 Mount the end plate correctly
ATTENTION!
Damaged sealing
Protectio
n class IP67 not guaranteed
 Check the sealing at the and plate for correct fit and damage.
