turck BL67 - Signal Assignment

Digital input modules
D300529 0115 - BL67 I/O modules5-50

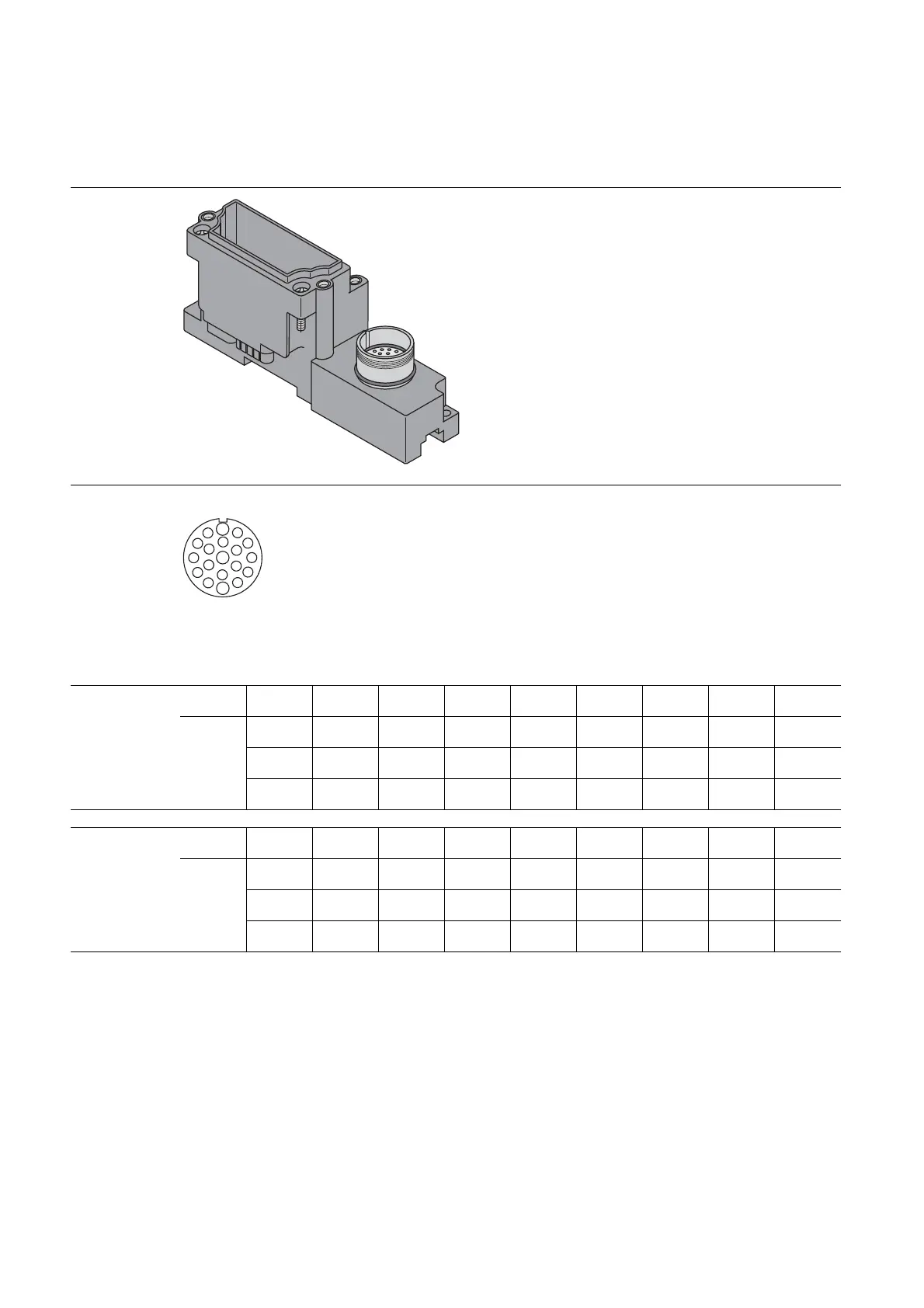

 BL67-1M23-19
Figure 5-72:
0
Figure 5-73:
v
19
11
12
1
2
3
4
5
6
7
8
9
10
18
13
14
15
16
17
1 = Input 14
2 = Input 10
3 = Input 6
4 = Input 3
5 = Input 2
6 = GND
7 = Input 1
8 = Input 5
9 = Input 9
10 = Input 13
11 = Input 12
12 = PE
13 = Input 11
14 = Input 7
15 = Input 0
16 = Input 4
17 = Input 8
18 = Input 15
19 = V
SENS
Accessory:
field-wireable connector (for example):
FW-M23ST19Q-G-LT-ME-XX-10
5.8.6 Signal assignment
n = process data offset in input data; depending on
extension of station and the corresponding fieldbus
C = slot no.
P = pin no.
BL67-B-1M23-19
Pin assignment
BL67-16DI-P with
BL67-B-1M23-19
Table 5-54:
Signal assign-
ment with
BL67-B-8M8-4-P
Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
In n C3P2 C3P4 C2P2 C2P4 C1P2 C1P4 C0P2 C0P4
Byte Bit 15 Bit 14 Bit 13 Bit 12 Bit 11 Bit 10 Bit 9 Bit 8
n C7P2 C7P4 C6P2 C6P4 C5P2 C5P4 C4P2 C4P4
Table 5-55:
Signal assignment
with
BL67-B-1M23-19
Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
In n C0P14 C0P3 C0P8 C0P16 C0P4 C0P5 C0P7 C0P15
Byte Bit 15 Bit 14 Bit 13 Bit 12 Bit 11 Bit 10 Bit 9 Bit 8
n C0P18 C0P1 C0P10 C0P11 C0P13 C0P2 C0P9 C0P17
