Overview

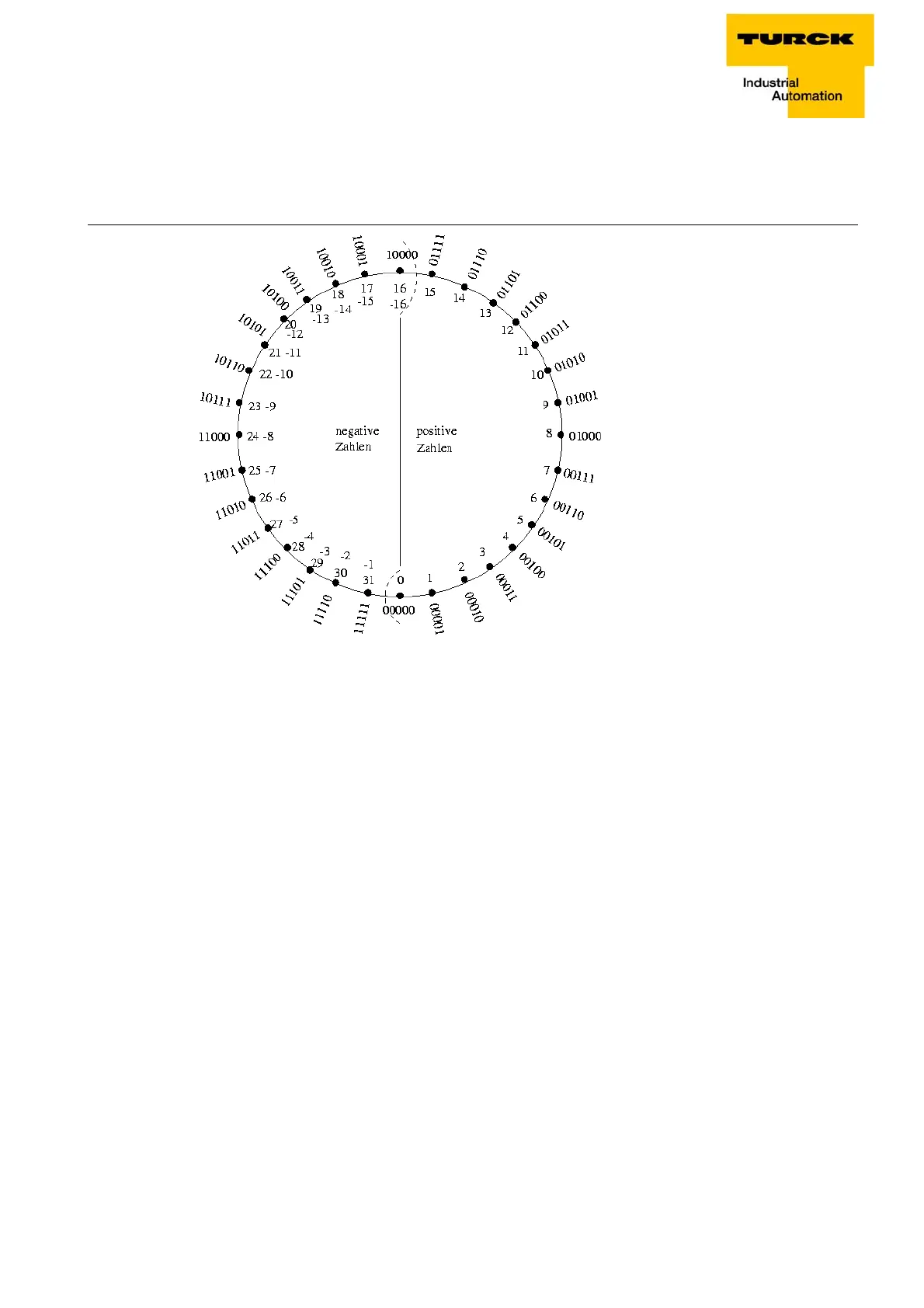

The figure shows a 5-digit binary code in the outer circuit. The inner circuit shows the respective dual
number, if the binary code is interpreted as binary number (positive numerical values) and as two’s
complement.
Figure 6-3:
Binary code as
dual number ans
two's comple-
ment
