Vacon 100 flow Applications Manual

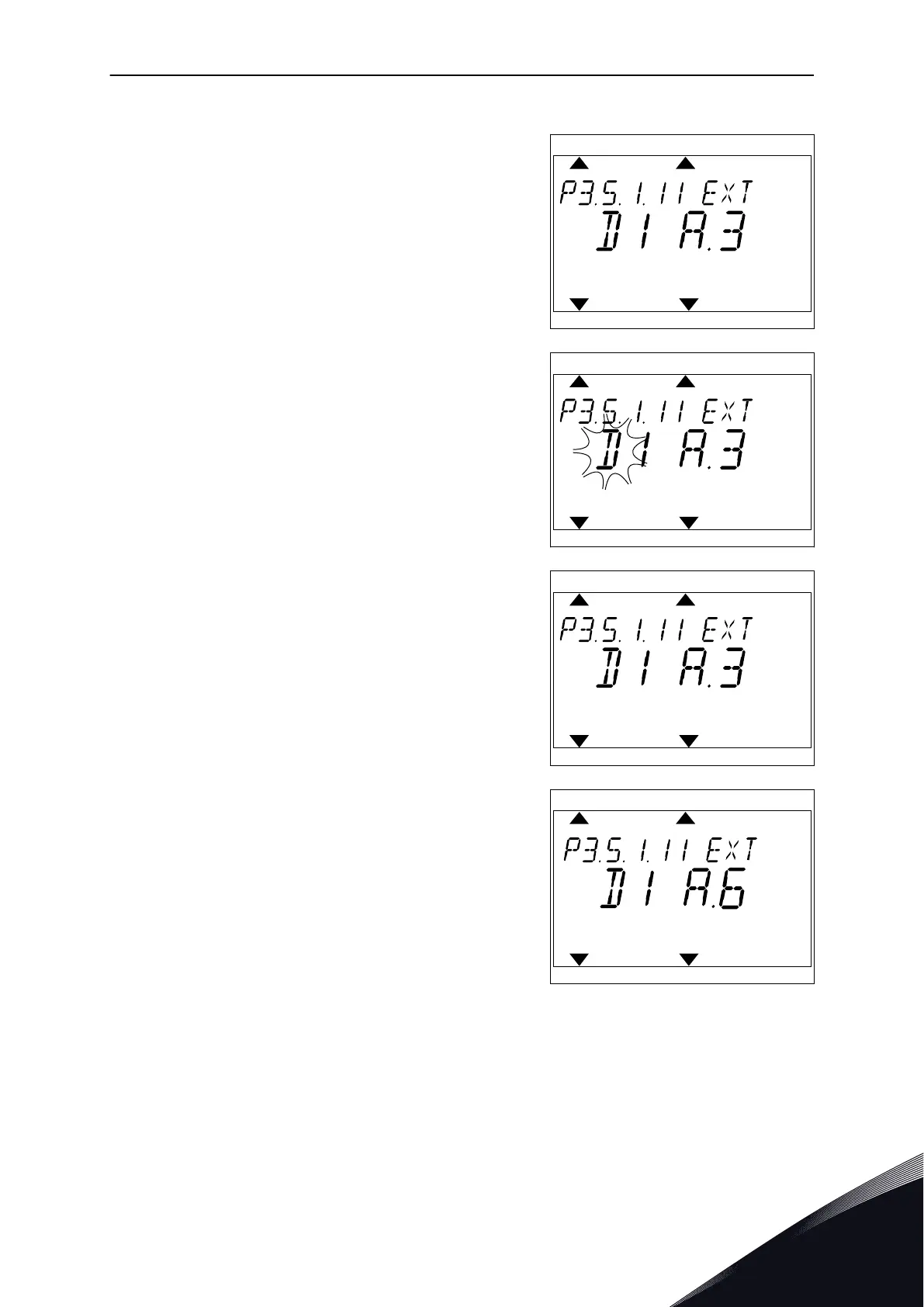

PROGRAMMING IN THE TEXT DISPLAY
1 Make a selection of a parameter. To go into the Edit
mode, push the OK button.
READY
FAULT
ALARM
STOP
RUN
KEYPAD
1/O
REV
FWD
BUS
2 In the Edit mode, the letter D blinks. If you have
more digital inputs available in your I/O, for
example, because of option boards in slots C, D or
E, make a selection of them.
READY
FAULT
ALARM
STOP
RUN
KEYPAD
1/O
REV
FWD
BUS
3 To activate the terminal 3, push the arrow button
Right again. The letter D stops blinking.
READY
FAULT
ALARM
STOP
RUN
KEYPAD
1/O
REV
FWD
BUS
4 To change the terminal to 6, push the arrow button
Up 3 times. Accept the change with the OK button.
READY
FAULT
ALARM
STOP
RUN
KEYPAD
1/O
REV
FWD
BUS
PARAMETER DESCRIPTIONS VACON · 255
LOCAL CONTACTS: HTTP://DRIVES.DANFOSS.COM/DANFOSS-DRIVES/LOCAL-CONTACTS/
10

Vacon 100 flow Specifications

General

Protection class	IP20
Communication interface	RS-485
Operating temperature	-10°C to +50°C
Storage temperature	-40°C to +70°C
Ambient temperature	-10°C to +40°C
Control method	Sensorless vector control
Communication protocols	CANopen
Approvals	CE, UL
I/O	2 analog inputs
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature
Frequency range	0 Hz to 400 Hz
Humidity	5% to 95%, non-condensing
Voltage range	208-240 V
