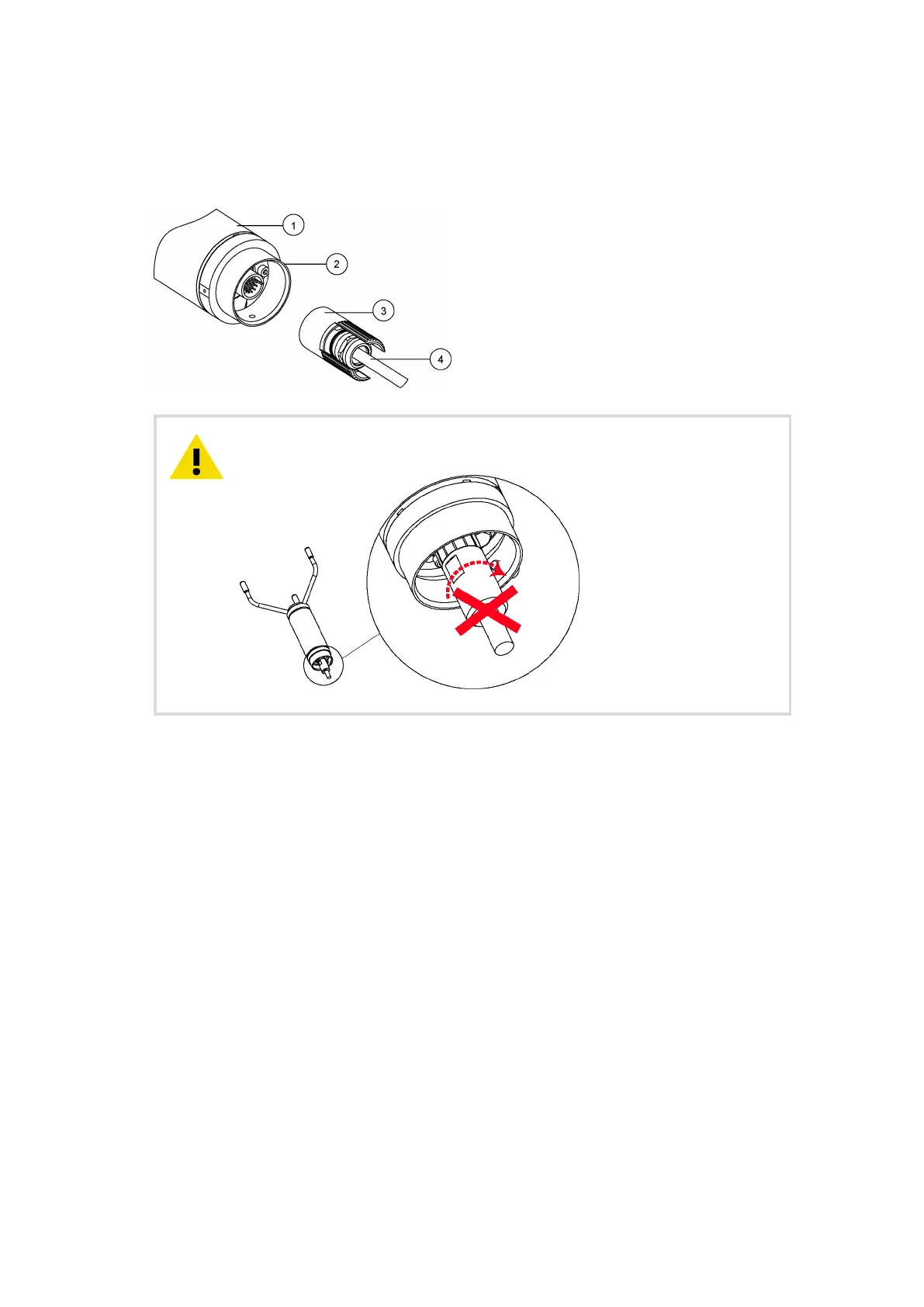

3.
Connect the cable t
o WMT700 and tighten the cable b
y rotating the cable tight
ening
tool clock
wise by hand.
Mak
e sure that the connect
or is properly tight
ened before pr
oceeding to the ne
xt step
.
1
WMT700
2
Mounting adapter
3
Cable tightening tool
4
Cable
Do not tighten the c
onnector by hand b
y holding the low
er part of the
connect
or
. This can damage the contact pins. Use the cable tight
ening tool.
CA
UTION!
A
WS310
/
A
W
S310-SITE Installation Manual
M211584EN-F
