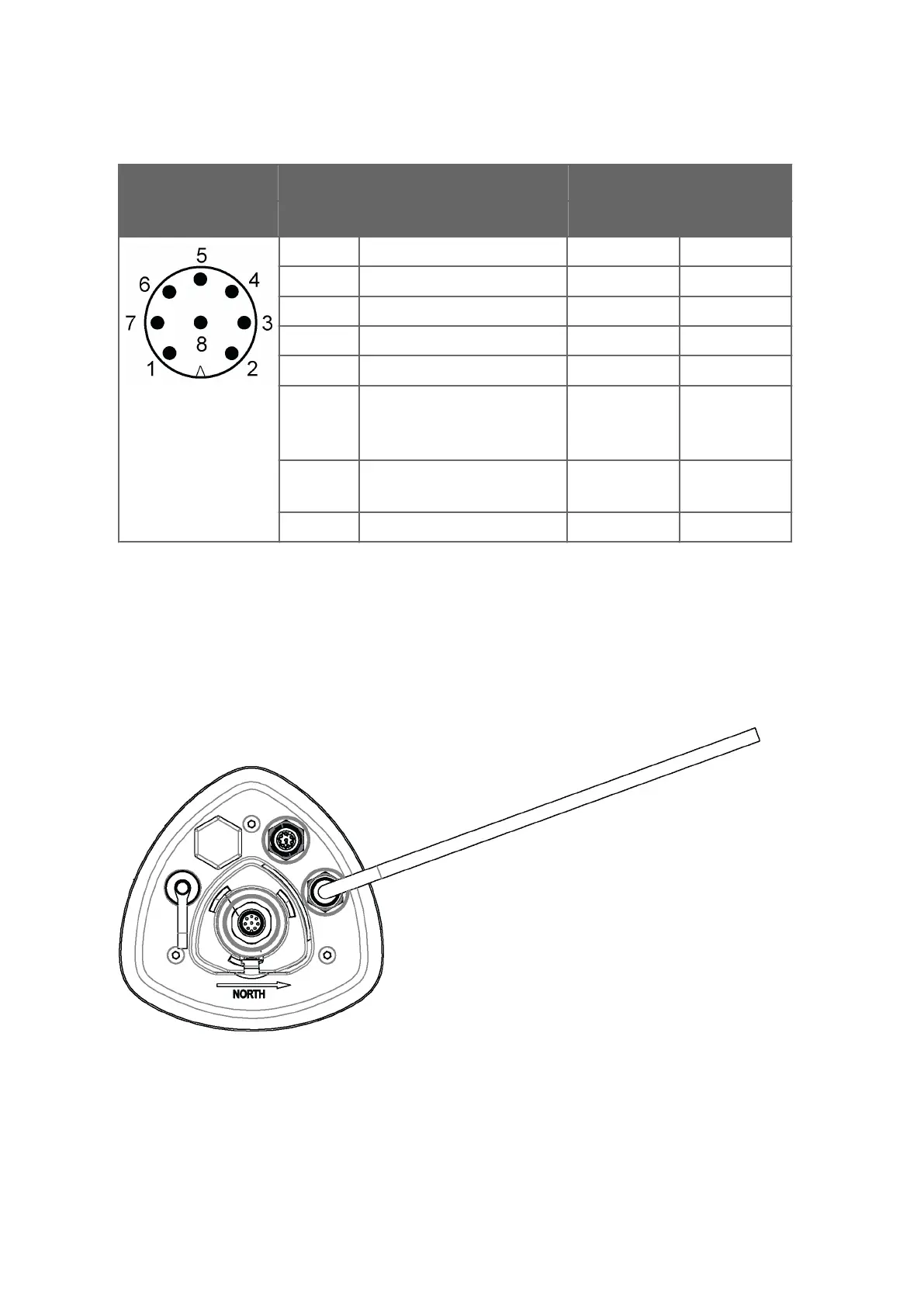

Table 55 Pyranometer Connections

Solar radiation connections CMP3

Pin Pin function Wire color Function

1 - - -

2 - - -

3 - - -

4 - - -

5 - - -

6 SR+

Solar radia

tion sensor input +

0 ... 25 mV

Red +

7 SR-

Solar radia

tion sensor input -

Blue -

8 - - -

F.3 Connecting Resistance Temperature

Sensor

Connect the temperature sensor to the M12 connector of the transmitter.

Figure 49 Pt1000 Connected to WXT536 M12 Connector

The f

ollowing ﬁgure shows how to wire a temperature sensor to the transmitter.

WXT530 Series User Guide M211840EN-D

194
