When the kit is in place, more snow can accumulate on the transmitter, and the snow can

melt aw

ay more slowly.

2.3.5 Vaisala Conﬁguration Tool

Vaisala

Conﬁguration Tool is a Windows-based, user-friendly parameter setting software for

T530 transmitters. It is also fully compatible with WMT52 and WXT520.

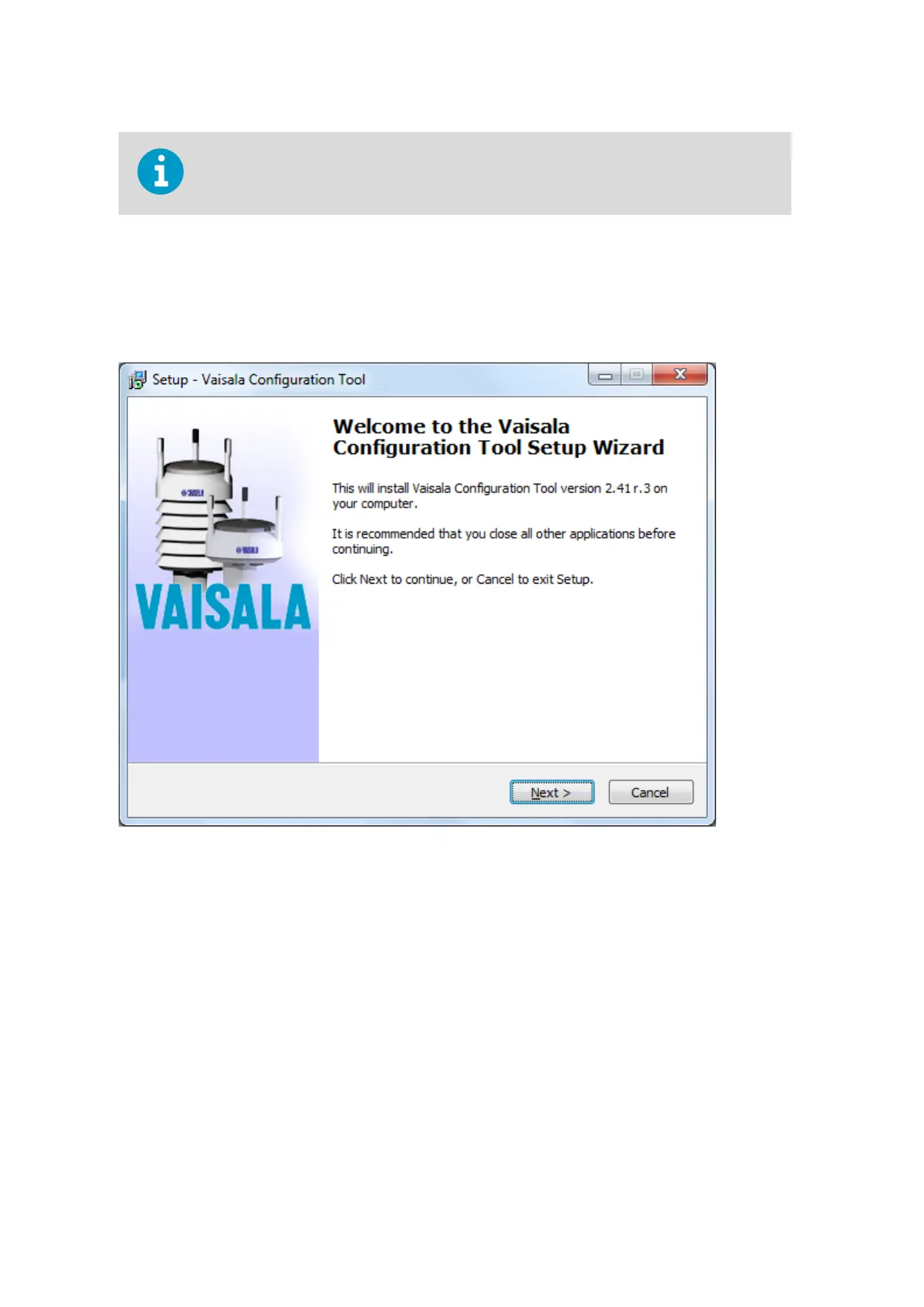

Figure 14 Vaisala Conﬁguration

Tool

2.3.6 Sensor Heating

Heating helps to improve the measurement accuracy.

More In

formation

‣

Heating (page 30)

WXT530 Series User Guide M211840EN-D
