3.5 Analog Input Interface
WXT536 WXT535 WXT534 WXT533 WXT532 WXT531
✔
WXT536 oers
an analog input option for solar radiation, external temperature, level
measurement, and tipping bucket.

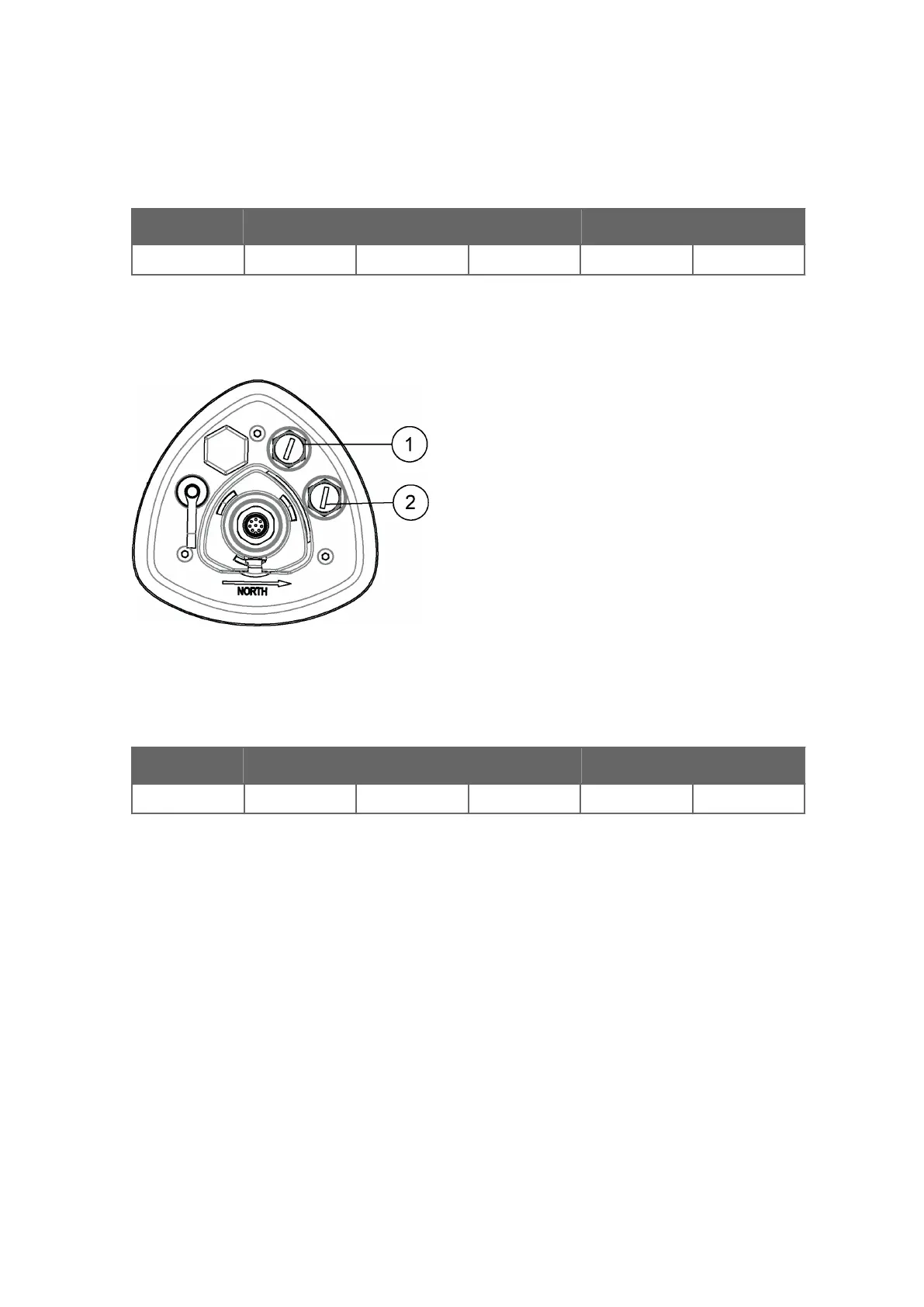

Figure 15 Analog Inputs for External Sensors
1 Analog input 1
Sensor A: Solar radiation
2 Analog input 2
Sensor B: Temperature
Sensor C: Level sensor
Sensor D: Tipping bucket
3.6 Analog Output Interface
WXT536 WXT535 WXT534 WXT533 WXT532 WXT531
✔
WXT532 oers an analog output option for wind speed and wind direction measurement.
The output settings are preconfigured at the factory according to your order. WXT532 takes
measuremen
ts according to the configured averaging time and synthesizes the analog
outputs of wind speed and wind direction with an update interval of 0.25 seconds.
