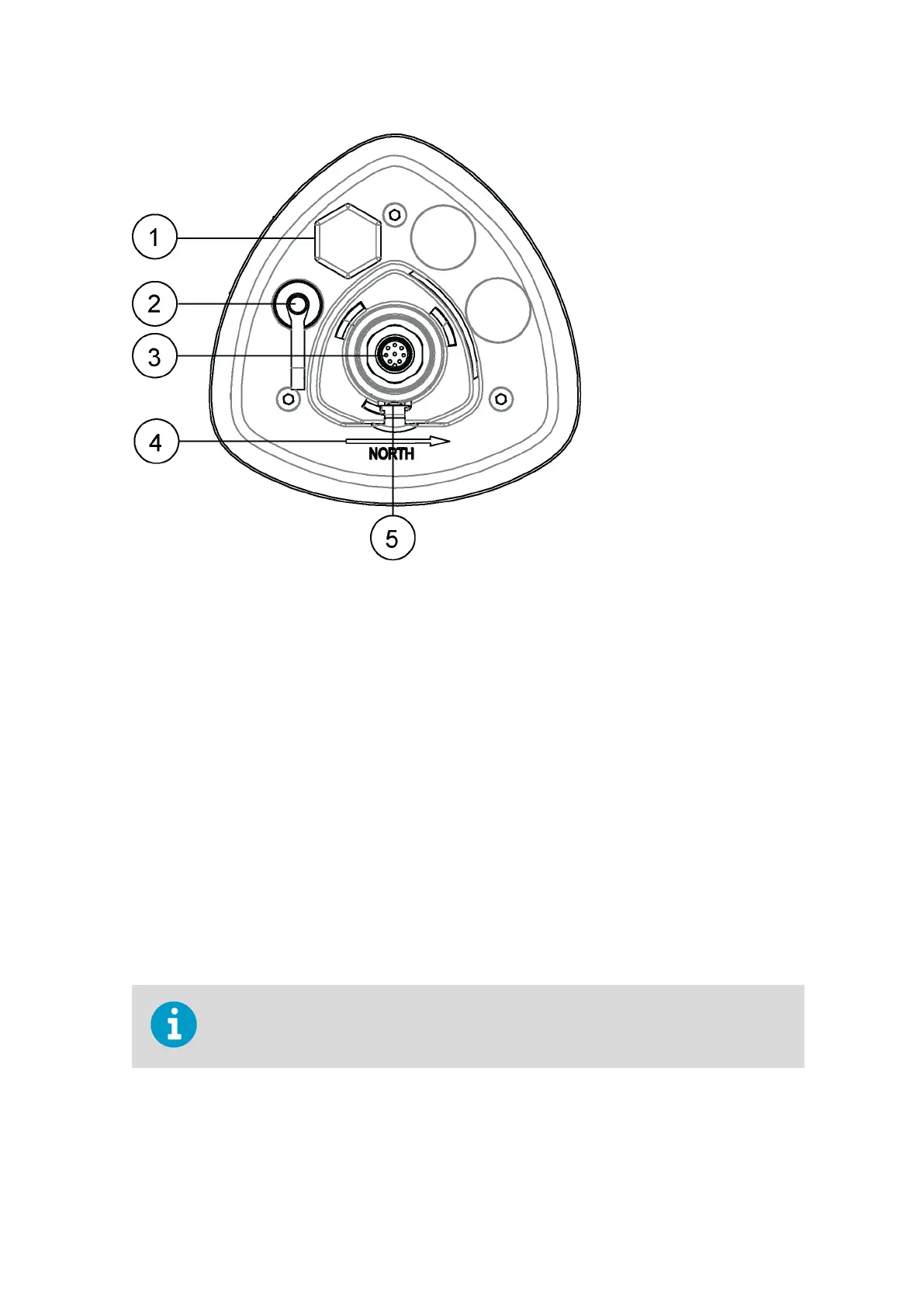

Figure 8 Bottom of WXT536
1 Opening for cable gland (if unused, cover with a hexagonal plug).
Wa
tertight cable gland (optional, included in the Bushing and Grounding Kit)
2 4-pin M8 connector for service port
3 8-pin M12 connector for power or data communications cable
4 Alignment direction indicator arrow
5 Fixing screw and chassis grounding point
2.3 Optional Features
The WXT530 series includes the following optional features:
• USB cables
•
Mounting kit
• Surge protector
• Bird kit
• Vaisala Configuration Tool
• Hea
ting
You must select these options when placing the order.
More Information
‣
Options and Ac
cessories (page 163)
Chapter 2 – Product Overview
19
