F.4 Connecting Rain Gauge to WXT536

The following ﬁgure

shows how to wire rain gauge RG13 to WXT536.

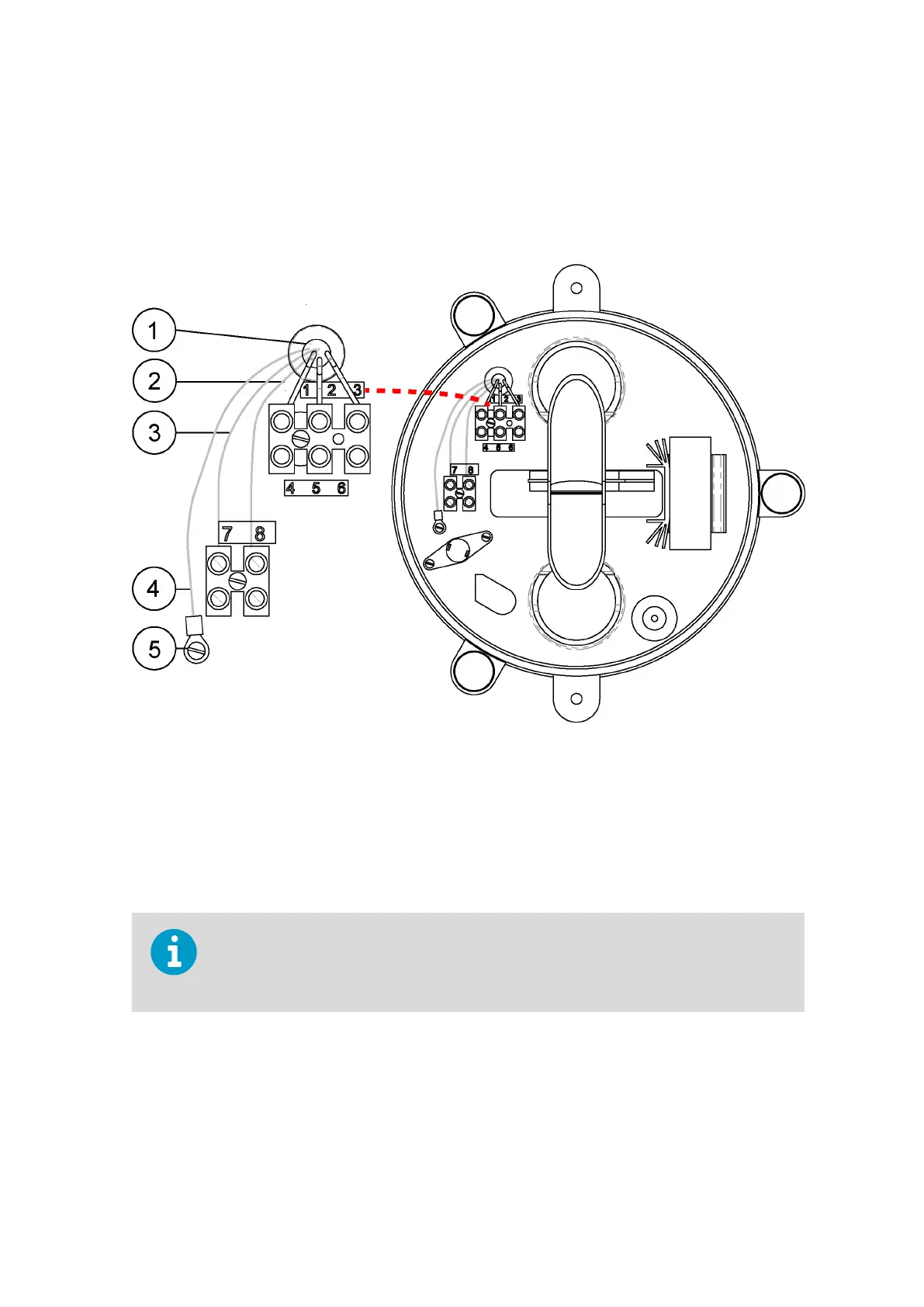

Figure 53 Wiring RG13/RG13H to WXT536

1 Cable tie

2 Screw terminal 8

3 Screw terminal 7

4 Cable shield

5 Grounding point

Only the heated rain gauge RG13H has terminals 4, 5, and 6 for the heating power. RG13H

requir

es 33 W power to enable heating. You need a power box between WXT536 and

RG13H

Appendix F – Connecting External Sensors to WXT536

197
