17.10.4.1 Editing a zone
Engineer and User actions include Log, Isolate/Deisolate and Soak/Desoak for each zone as allowable
by the Security Grade EN 50131 Grade 2 and EN 50131 Grade 3.
1. Select Configuration > Inputs > All Zones.

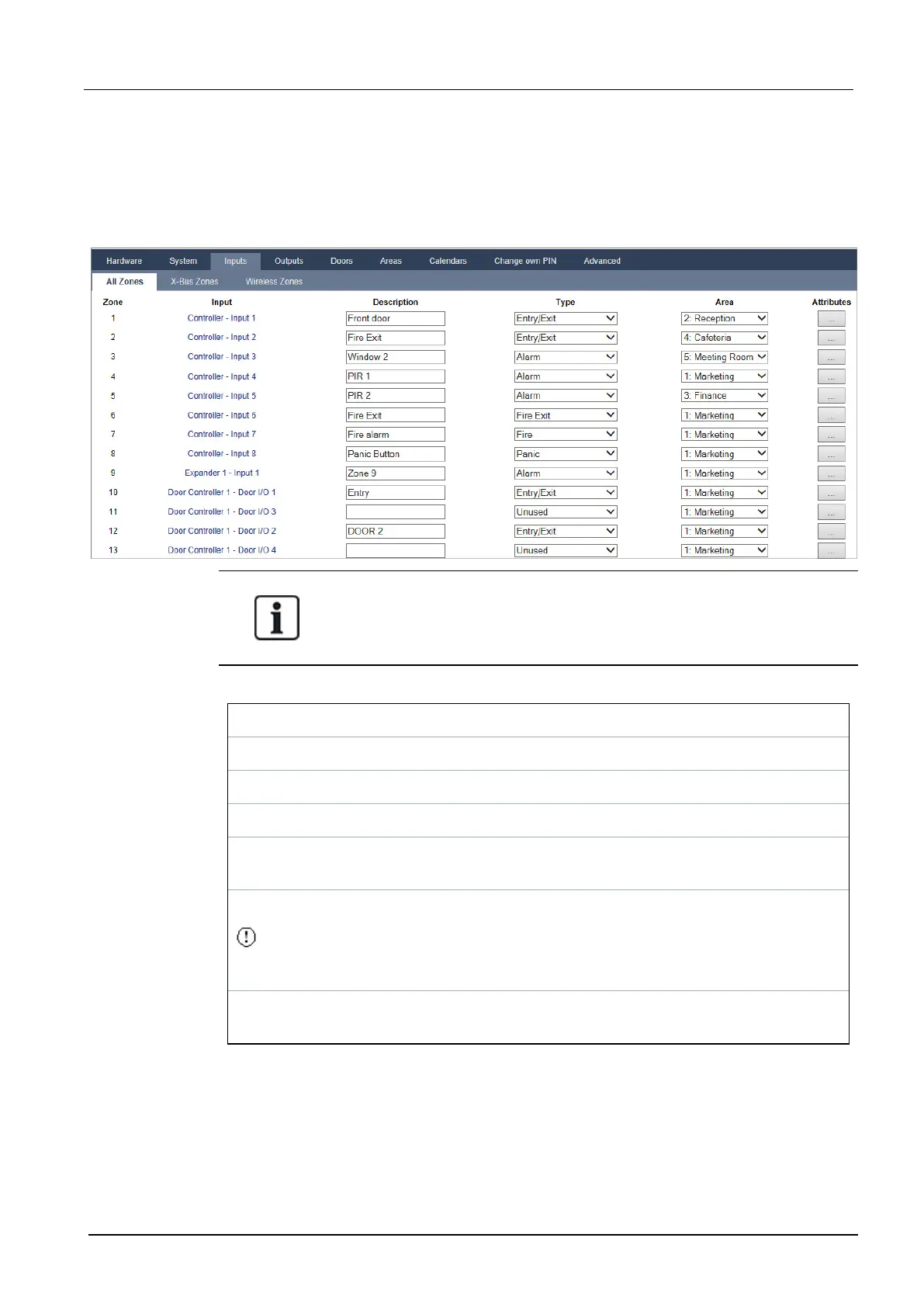

The following page will be displayed.
You can select Configuration > Inputs > X-Bus Zones to configure wired
zones only or Configuration > Inputs > Wireless Zones to configure
wireless zones only.
2. Configure the fields as described in the table below.
Zone The number is presented for reference and can not be programmed.
Description Enter a text (max. 16 characters) that serves to uniquely identify the zone.
Input The physical input is displayed for reference and is not programmable.
Type Select a type of zone from the drop down menu (see Zone types on page379).
Area Only if (multiple) Areas is activated. Select an area to which the zone is
assigned from the drop down menu.
Calendar Select if necessary the desired calendar (see Calendars on page284).
For Security Grade 2/3 a calendar can be assigned only to zones of type Exit
Terminator, Technical, Key Arm, Shunt and X-Shunt. For Security Grade
Unrestricted a zone of any type can be associated with a calendar.
Attributes Tick the relevant checkbox for the zone. Only attributes that apply that type of
zone will be presented (see Zone attributes on page384).
17.10.4.2 Adding/Editing an area
Prerequisite
o
Only if (multiple) Areas is activated.
SPC4xxx/5xxx/6xxx – Installation & Configuration Manual Engineer programming via the browser
© Vanderbilt 2018 270 A6V10276959-d
11.2018
