ABSD D100 C0 M100 K5
K360
C0
X1
C0
X0
X0
RST C0
M100
M101
M102
M103
M104
0 30 60 90 120 150 180 210 240 270 300 330 360

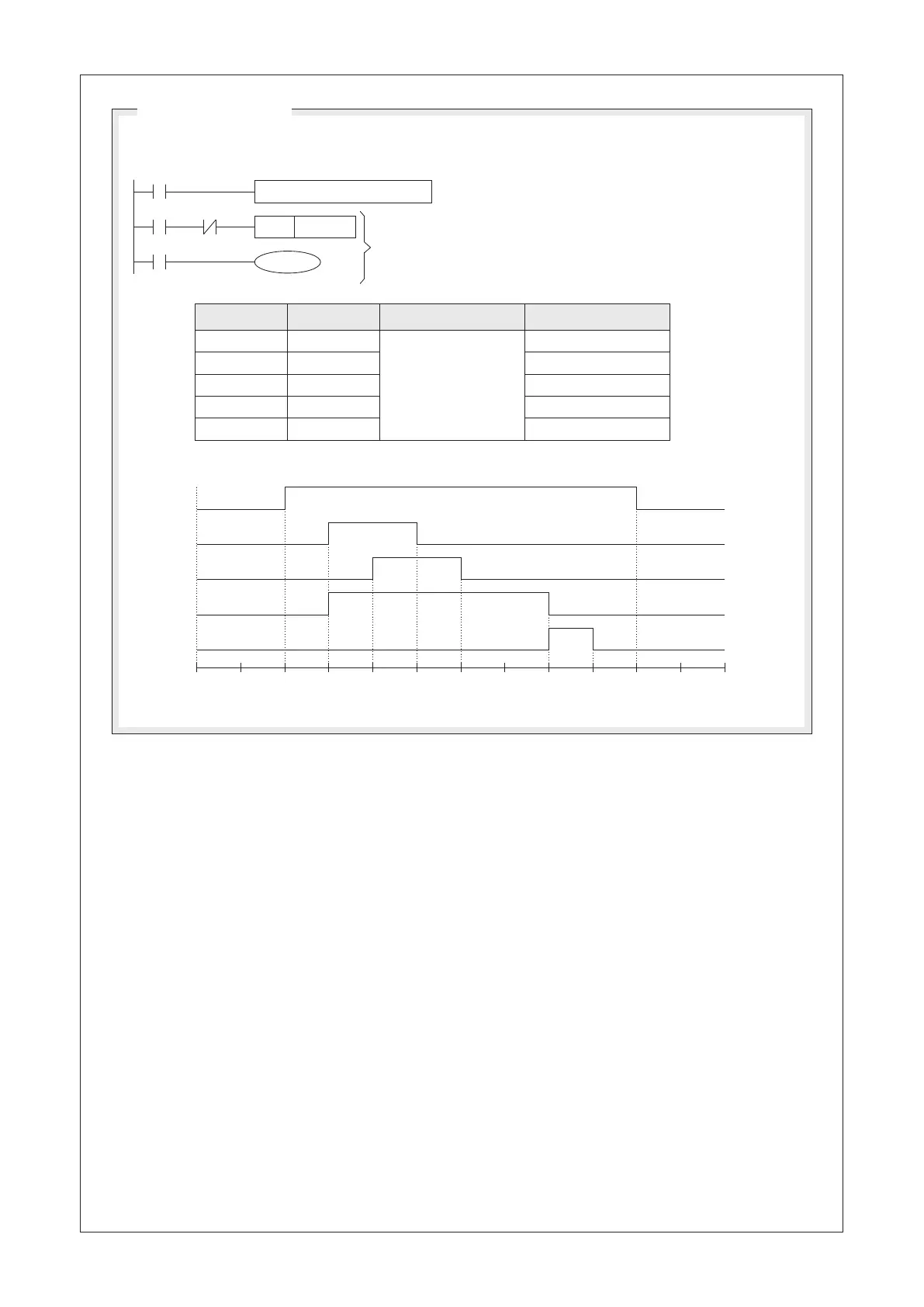

When X1= “ON”, it activate the Multi-Section Compare
This section of program that enables the C0 to be the counter of rotor
which is depending on counting the rotation degree of the rotor.
A Program Example
D100=60
D102=90
D104=120
D106=90
D108=240
D101=300
D103=150
D105=180
D107=240
D109=270
M100
M101
M102
M103
M104
C0
Lower Limit
Upper Limit
Comparison Value Comparison Result
Suppose that a drum-controlled rotor sends a pulse to the input terminal X0 when it rotates by one degree,
then the following program will perform the checkup and control actions of the drum degree.
