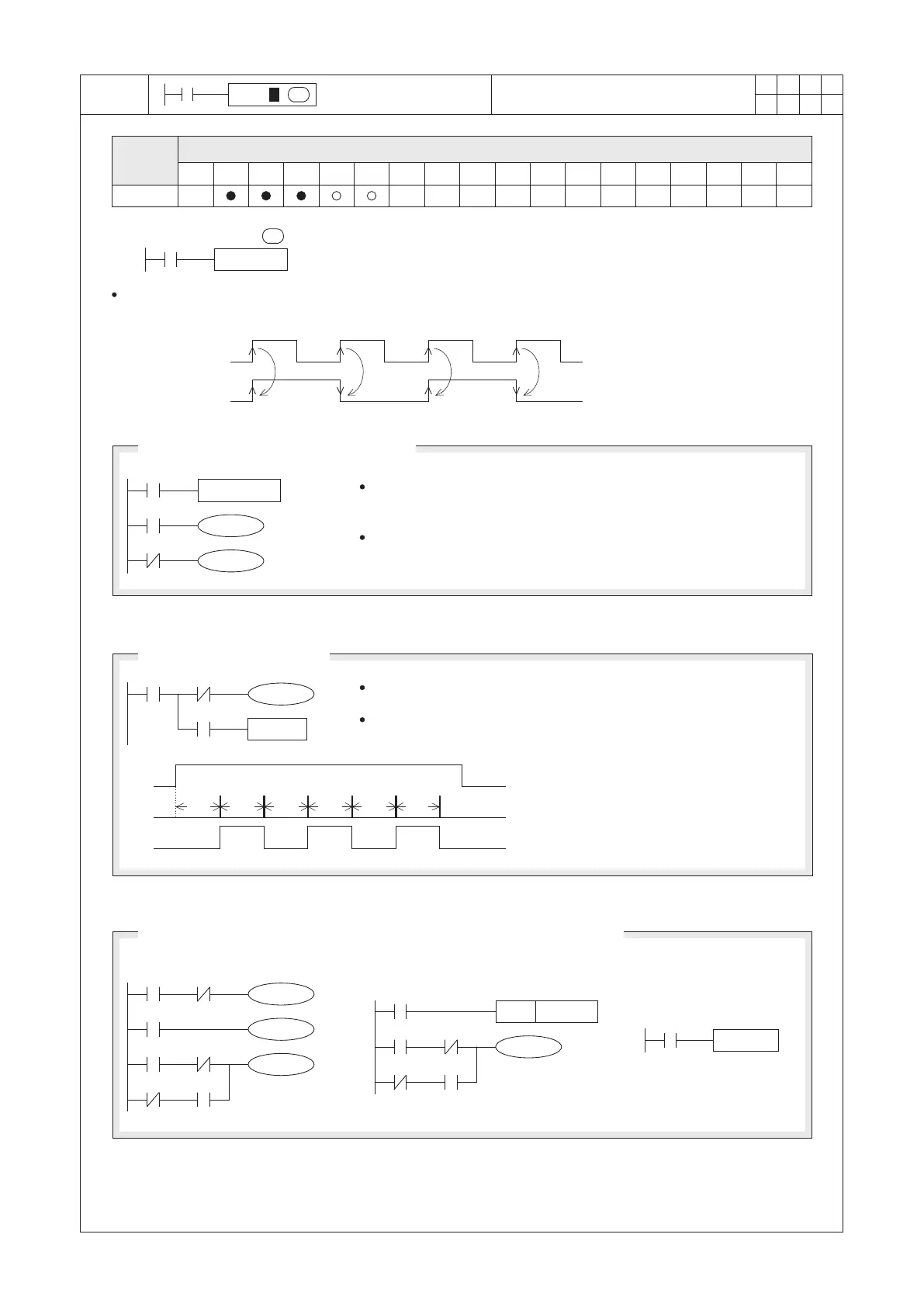

Alternate State
D : the destination device
When X20= “OFF “ → “ON” for the first time, M0= “ON”; while X20= “OFF” → “ON” for the second time,
M0= “OFF”. Hence when X20= “OFF” → “ON” for an odd time, M0= “ON”, and for an even time, M0= “OFF”.
Control Start / Stop by One Push Button
Traditional or Instruction to Make the Function of the First Trigger "ON"
and Second Trigger "OFF"
Produce the Flashing State
When X20= “OFF” → “ON” for the first time, M100= “ON”;
Y20= “ON”, Y21= “OFF” and the operation will be activated.
When X20= “OFF” → “ON” for the second time, M100= “OFF”;
Y20= “OFF”, Y21= “ON” and the operation will be stopped.
Start
Stop
1
sec
When X20= “ON”, T0 will produce a pulse every other second.
Every time when T0 produces a pulse, the state of Y0 will be
changed once.
1
sec
1
sec
1
sec
1
sec
1
sec
