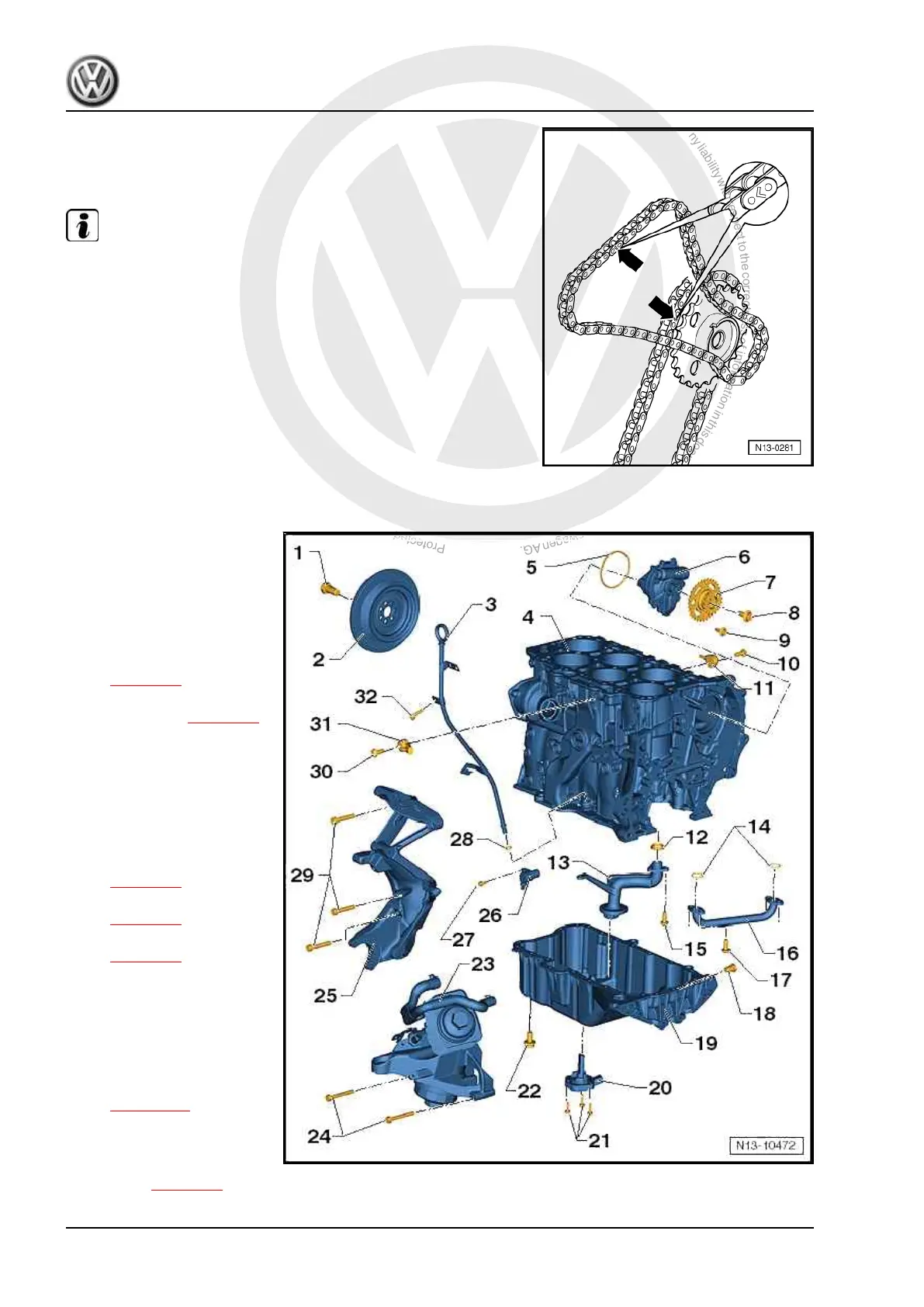

Marking timing chains
– Mark timing chains before removing (e.g. with paint, arrow
pointing in direction of rotation).
Note
Do not mark chain by way of centre punch, notch or the like.
1.2 Part II
1 - Vibration damper securing
bolts
❑ Qty. 7
❑ 60 Nm + turn 180° fur‐
ther
2 - Vibration damper
❑ Removing and installing
⇒ page 35 .
❑ Removing and installing
poly V-belt ⇒ page 34
3 - Guide tube
❑ for oil dipstick
❑ Secured with bolt to in‐
take manifold.
4 - Cylinder block
❑ Sealing flanges and fly‐
wheel or drive plate
⇒ page 36
❑ Crankshaft
⇒ page 49 .
❑ Pistons and conrods
⇒ page 56 .
5 - Seal
❑ Renew
❑ Lubricate before as‐
sembling.
6 - Oil pump
❑ Removing and installing
⇒ page 122
7 - Sprocket
❑ Install camshaft adjust‐
er with camshaft timing
chain ⇒ page 64 .
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
32 Rep. gr.13 - Crankshaft group
