SHB WL34 * 2.0 4-21
Travel drive 4
M-Drive
4.7 M-Drive (Option)
Pressure values
Specified values are approximate values and can vary from loader to
loader. The values serve as an orientation during troubleshooting. The
pressure values are determined at full throttle and with a blocked drive.

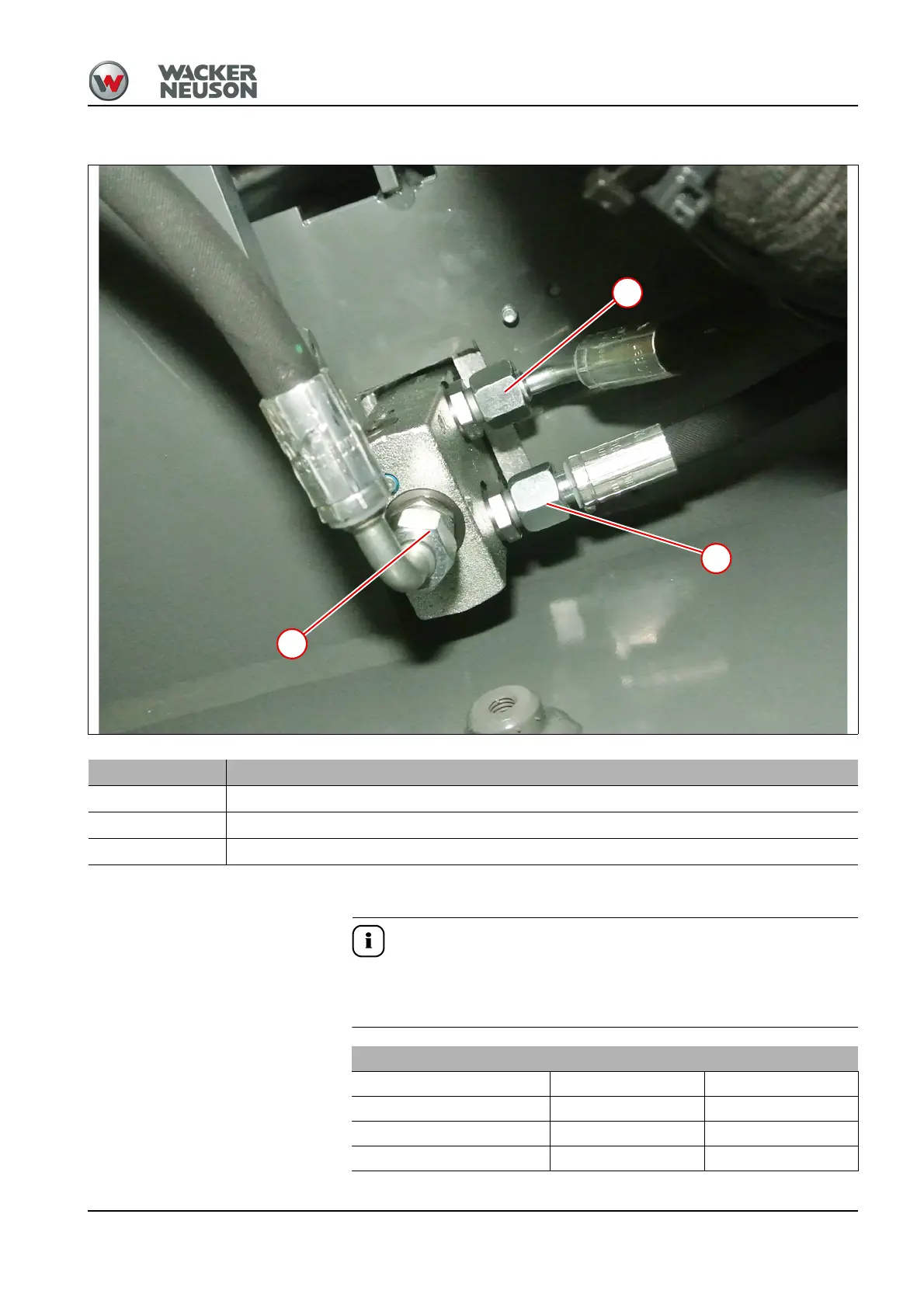

Connection Function
1 Hydraulic oil reservoir
2 Supply line from the variable displacement pump (P
S
)
3 Supply line to the 4/3-directional valve to the variable displacement pump
Speed [rpm] Connection 2 [bar] Connection 3 [bar]
Idling speed (approx. 1000) 10-12 0
1350 14 14
1600 16 16
2000 18 18
Travel drive
M-Drive
