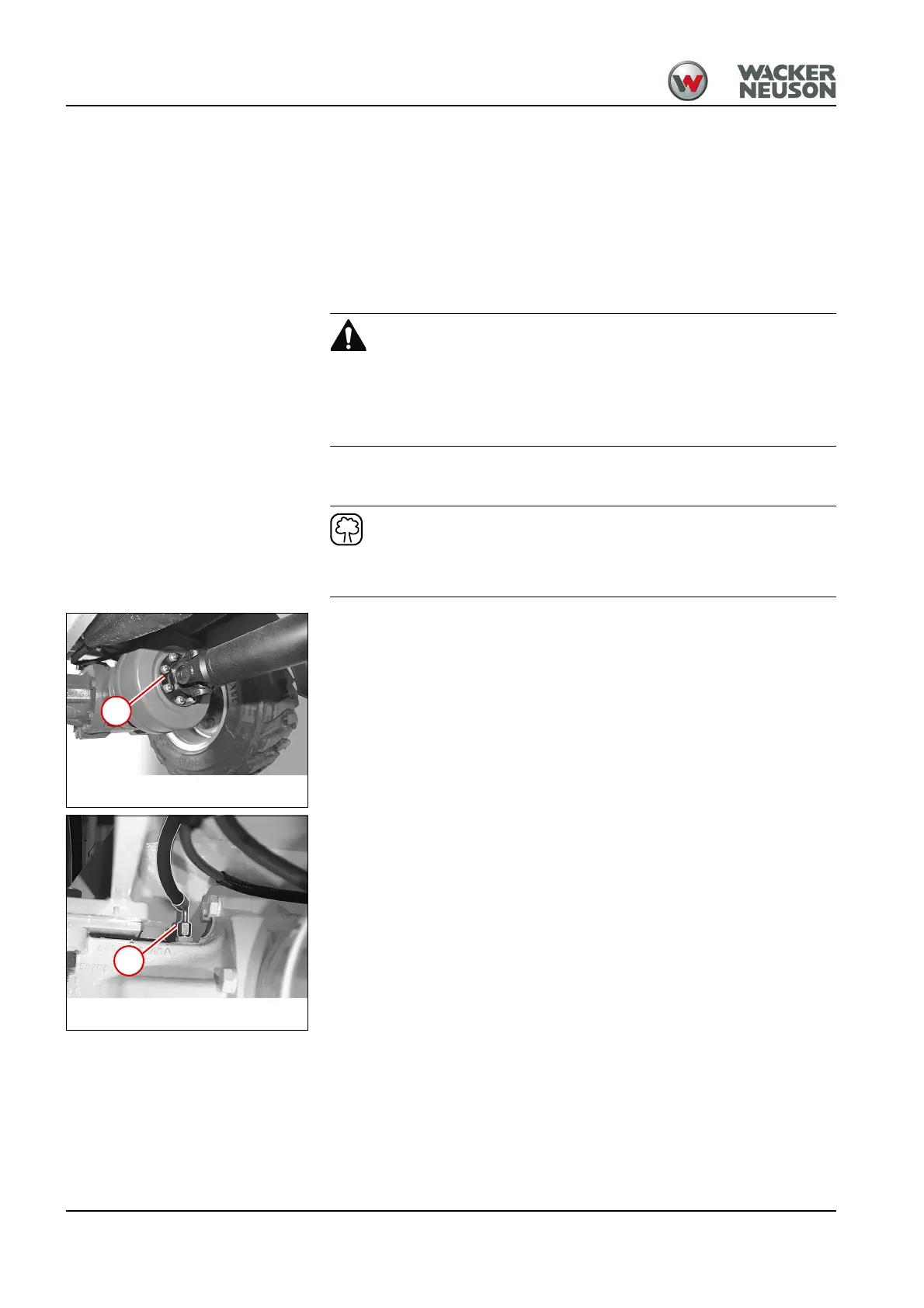

Removing/installing the front axle
Preparations
1. Park the machine on firm, level and dry ground.
2. Apply the parking brake.
3. Lower the loader unit to the ground.
4. Stop the engine.
5. Block the oscillating articulation (see Operator’s Manual).
Injury hazard due to heavy component!
The front axle weighs approx. 187 kg.
Use suitable lifting gear to remove and install front axle.
Disassemble
Use a suitable container to collect the hydraulic oil as it drains off and
dispose of it in an environmentally friendly manner!
1. Remove all nuts (WS 13) at the cardan shaft fastening 1.
2. Remove the cardan shaft from the front axle by sliding it backward.
3. Loosen the union nut on the differential lock 2.
4. Remove the hydraulic line.
5. Close the hydraulic line and differential lock with plugs.
